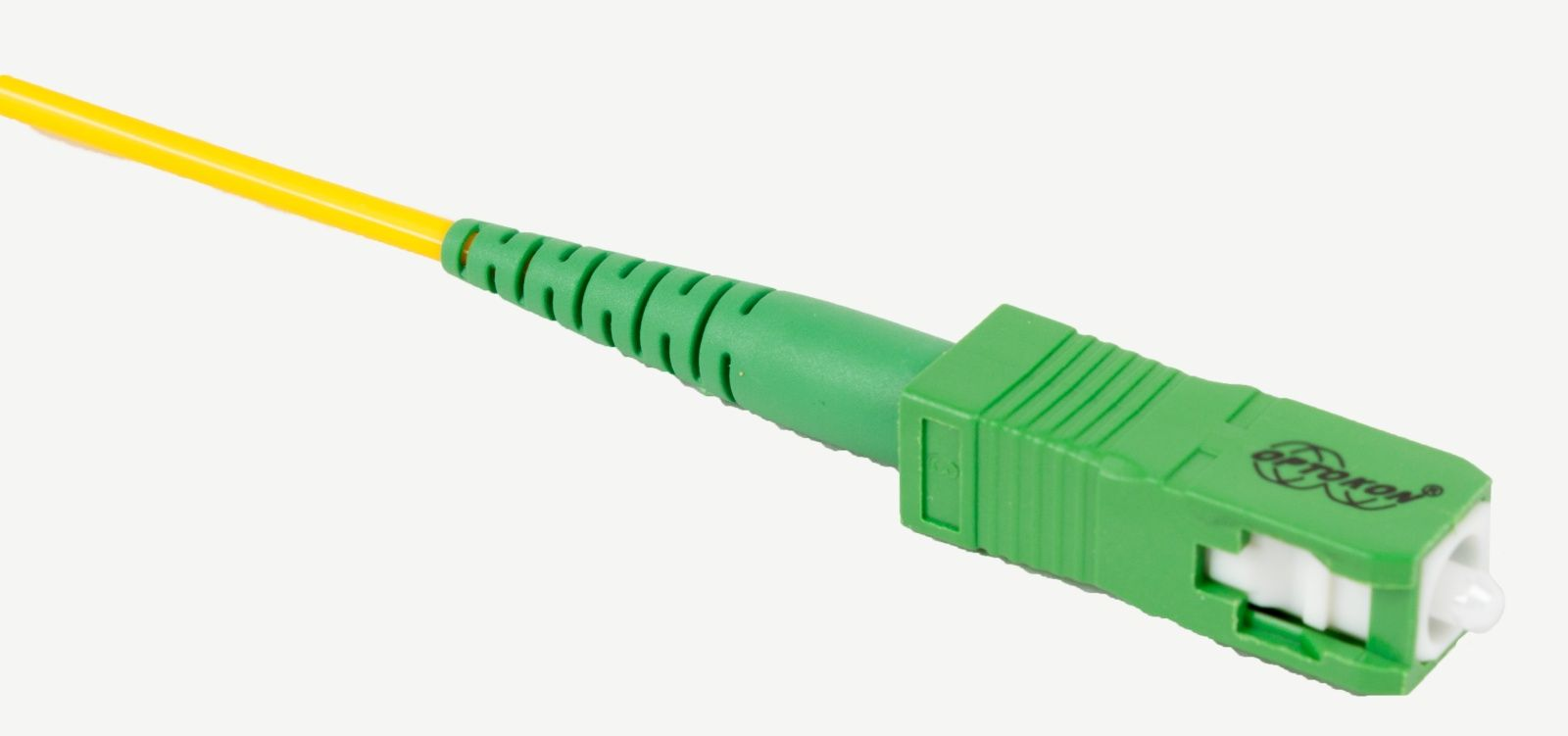

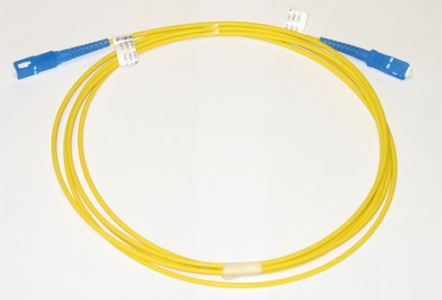

SC Patchcord

The OPTOKON SC patchcords are manufactured according to JIS, IEC, EIA/TIA and ANSI specifications for intermateability and optical performance. The SC patchcords are offered for both SM applications, with PC and APC polishing method. All OPTOKON connectors now come with the laser printed OPTOKON logo and patchcord cables are produced by OPTOKON Kable factory and have a LSZH (Low Smoke Zero Halogen) cable jacket.

Customized patchcord cable diameter and color according to demand is available. Set of twelve colored pigtails are packed in a plastic bag, individually tested (label with test results and product description on bag) and come with a lifetime guarantee.

  • Features
  • Specifications
  • Application
  • Documents

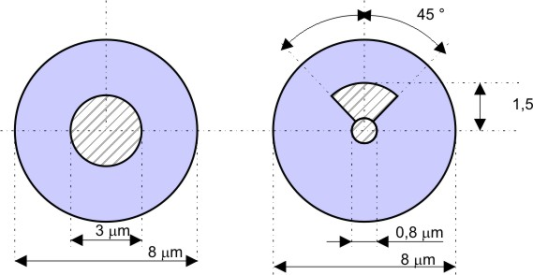

  • Excellent geometrical and transmission parameters
  • High mechanical resistance – pull proof
  • Meets SC connector standards

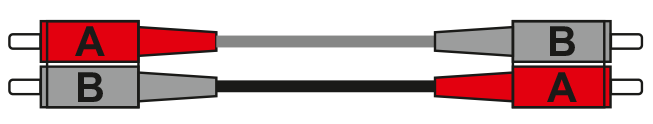

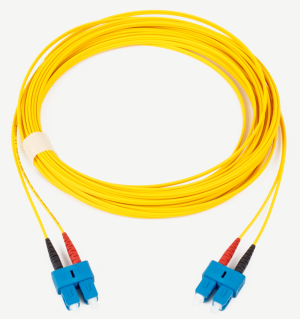

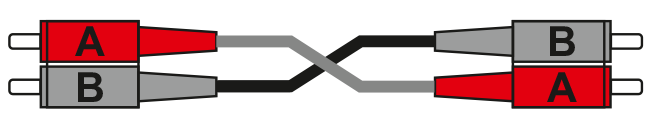

  • Available SM, MM simplex or duplex connector, duplex clip available separately
  • Set of colored pigtails available
  • Pre-radiused ceramic ferrules configured for Ultra PC and Angle PC polishing
  • Ferrule assembly has high resolution tuning feature

Insertion loss (IL)
(IEC 61300-3-34)

 SM Ultra PC Grade B SM Angle PC Grade B
0.12 dB mean value
0.25 dB 97%		 0.12  dB mean value
0.25 dB 97%
Return loss (RL)1
(IEC 61300-3-6)		 >45 dB >60 dB
Operating temperature2 -30°C to +60°C
Storage temperature    -40°C to +60°C
Installation temperature   -5°C to +40°C
Tensile strength 100 N
Durability3 min 1000 cycles
Strain relief 100 N
Assembly procedure glue and polish
Connection physical contact
Lock mechanism snap-on
Standards ISO/IEC 11801, TIA 568A, IEC 61755-4, ČSN/EN/IEC 61754-15, EN-50377-4
Ferrule material full ceramic zirconia
Connector material thermoplastic, zinc alloy nickel plated
Adapter material polymer composite, zinc alloy

Note:    1)     Mated connectors, over full temperature range
             2)    ≤ 0.07 dB at 1310/1550 nm

            3)     ∆ IL ≤ 0.1 dB

  • Telecom
  • LAN, WAN
  • CATV
  • Sensor Systems
  • Measuring Technique
  • Utilities, Railways
