The LSH connectors are offered for MM or SM applications with PC and APC polishing method. LSH integrated protective cap protects ferrule from dust and rules out any laser light emissions. LSH connector is excelent for high packing density.

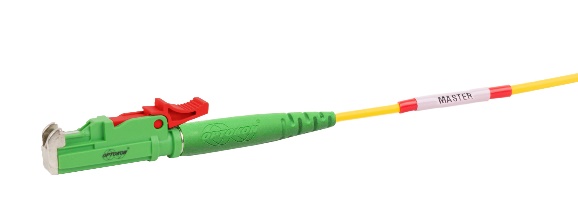

Master LSH Patchcord
- Integrated protective cap protects ferrule from dust and rules out any laser light emissions
- Integrated spring for a guaranteed closing of the protective cap
- Single mode and multimode versions available, PC and APC polishing
- Full ceramic ferrule

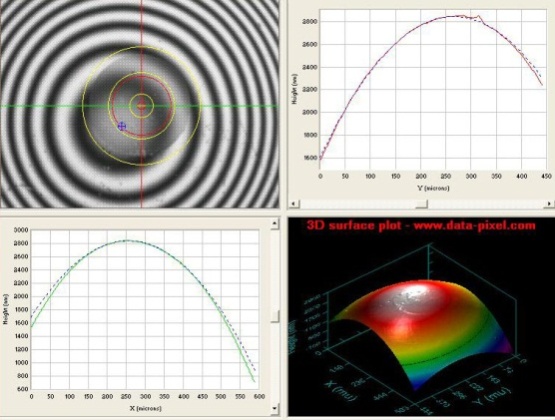

- Special ferrule preform for short polishing time
- Adjustable in 60° steps
- Excelent for high packing density
- Colour and mechanical coding

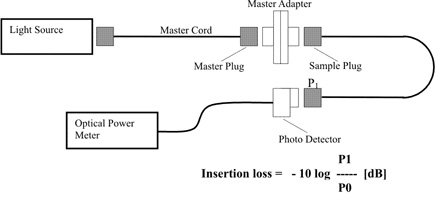

| Insertion loss (IL) (IEC 61300-3-4) |
MM | SM Super PC | SM Ultra PC | SM Angle PC | SM Angle PC Premium |
| 0.15 dB typ | 0.15 dB typ | 0.15 dB typ | 0.15 dB typ | 0.1 dB max | |
| Return loss (RL) (IEC 61300-3-6, method 1) |
>30 dB | >45 dB | >50 dB | >60 dB* | |
| Strain relief | 40 N | ||||
| Operating temperature | -40 °C to +85 °C, conditioned by type of cable | ||||
| Durability | min 1000 cycles | ||||
| Assembly procedure | glue and polish | ||||
| Connection | physical contact | ||||
| Lock mechanism | snap-on | ||||
| Standards | EN 186-270 | ||||
| Ferrule material | full ceramic zirconia | ||||
| Connector material | UL 94-V0 | ||||
| Adapter material | UL 94-V0, slotted ceramic sleeve | ||||
Note: *) RL >80 dB measured with high precision reflectometer, IEC 61300-3-6, method 3 (OLCR method)
**) Conditioned by the type of cable
