Wall outlet MCPE-01T box is designed for FTTH applications, it is used to terminate optical cables to pigtails at customer premises. It is mounted on the wall. The MCPE-01T provides mechanical protection and managed fiber control in an attractive format. The cable is fed to the wall outlet from top side, bottom side or from the back. A patchcord leads from the wall outlet to the active equipment (CPE – Customer Premises Equipment). The MCPE-01T allows installation of one or two adapters, based on standard SC footprint.

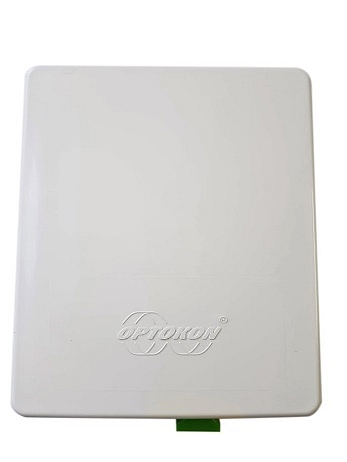

MCPE-01T End user terminating box

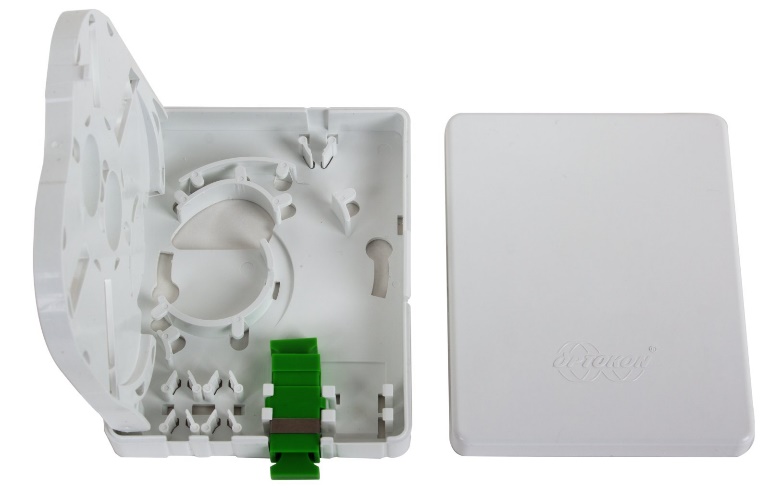

- Hinged/detachable splice cassette
- Detachable cap
- One or two SC adapters
- Compact design
- Separate fiber guiding
- Suitable for heat-shrinkable splice-protection as well as for mechanical splice protection
Technical description:
|
Material |
ABS |
|
|
Color |
White (RAL 9010) |
|
|
Operating temperature |
-40 to +75 °C (acc. EN 60068-2-1 and EN 60068-2-1) |
|
|
Flammability |
UL94 HB |
|
|
IP Protection class |
IP42 (according IEC 60529) |
|
|
Dimensions |
100 x 80 x 22 mm (LxWxH) |
|
|
Weight |
60 g (without adapters and pigtails) |

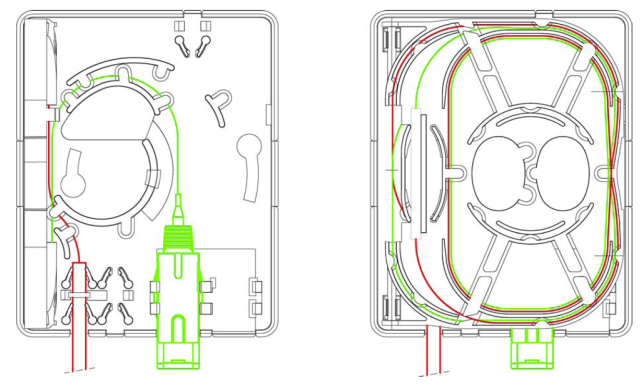

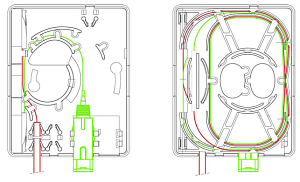

The pictures below present entrance of installation cable to wall outlet and routing of excess cable inside splice cassette and “Cold Splice Protector”.
|
|
|
|
|
MCPE-01T-1-SC-A with installed SC/APC pigtail |
MCPE-01T-1-SC-S |
|
CMS_03-09_EN-MCPE-01T
