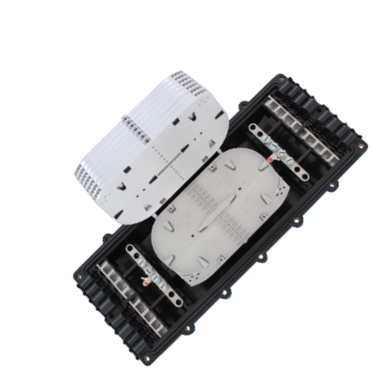

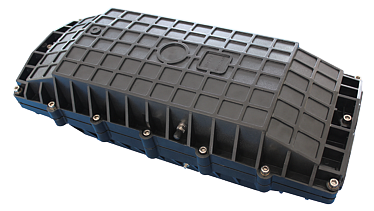

KSHT-120 Fiber Optic Splice Closure

KSHT-120 is designed as a multi-functional equipment for optical cable splice, distribution and protection, it can be used for access or branch between optical cables with 16 cable entry/outlet, capable for wide application, excellent sealing performance and easy for installation, and can be deployed for direct buried, wall mount and areal environments.

The selected high strength engineering plastic material to assure superior protection capability from harsh environment such like aging, corrosion, temperature and superior of mechanical strength.

  • May be used for cut, uncut and taut sheath applications
  • May be used for all fiber optic cable
  • Sheath retention & central strength member fasten system included
  • Ribbed closure construction and lightweight plastic provides strength
  • Resistance to chemical and UV attack
  • Installation and reentry with a minimum of tools
  • All hardware are included
  • Re-enterable and reusable
  • Protection class: IP 68
  • ROHS compliance

Model No

Size (mm)

L x W x H

Spliced fiber storage capacity

Cable ports

Splice Trays

KSHT-120

560 x 240 x 180

Standard fiber,

384 splices

(8x48 splices)

16 ports:

4 ports for 1 cable with max 23mm,

4 ports for 1 cable with max 16mm,

8 ports for 1 cable with max 14mm

Max.8 trays,

each tray up to

48 splices

  • Underground, Aerial Mounting
