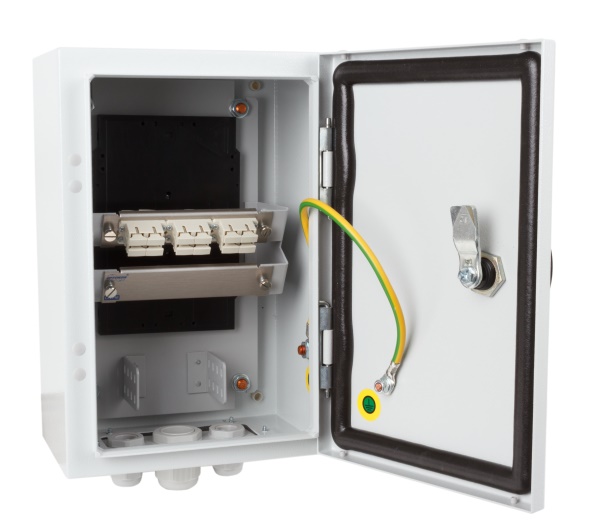

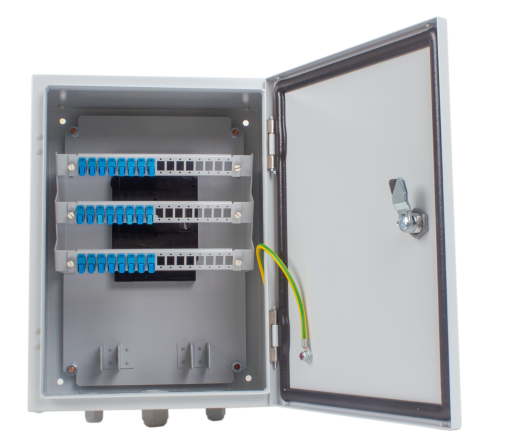

The OPTOKON MOMB metal box is designed for optical fiber cables termination outdoors. It is an IP66 design that resists moisture and dust entry. A single door box with lock is provided. Provision for up to 4 optical fiber cables to enter or leave the enclosure through weatherproof cable glands is provided. Four cable anchoring points are provided. The MOMB includes a set of individually removable splice trays according to the customer request; each tray can accept 12 fusion splices. The splice tray stack is secured by a long length hook and loop tie. The housing contains standard CNPM coupling panels with connector adaptors of all most industry used standards.

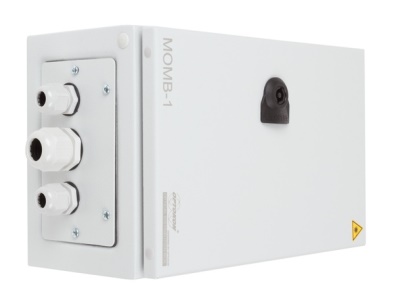

MOMB series Outdoor metal fiber optic box, IP66

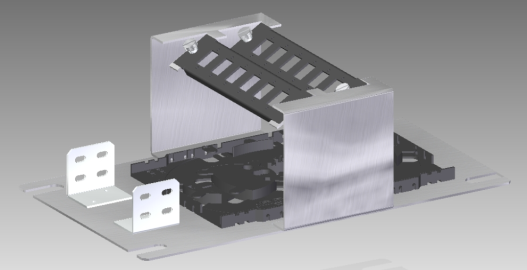

- Easy installation – fully removable base
- Compact FTTH design
- Designed to house SC, SC duplex, ST, FC, E2000, DLC couplings
- Metal wires and FO hybrid version available
- Pigtail cable entry available
- Wide range of cable size entry

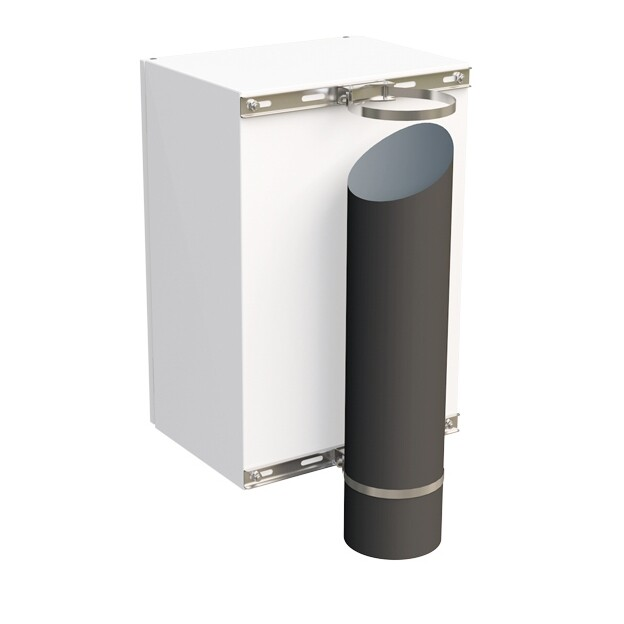

- Pole mount accessories on request
- Inside fiber bending with observance of diameters, fiber reserve provided.
|
PART NUMBER |
FIBER CAPACITY1 |
CASSETTE NUMBER |
DIMENSIONS (H x W x D) mm |
SHIP WGT (kg) |
|
|
MOMB-1 |
up to 48 fibers |
4 |
300 x 200 x 155 |
4.5 |
|
|
MOMB-2 |
up to 120 fibers |
up to 10 |
400 x 300 x 210 |
8.0 |
|
|
Note: 1) Fiber capacity depends on connector adaptor type, e.g. in the case DSC and DLC it is double capacity (If we use slimmer splice protections P-B-40 so we can place two splices to one groove in the splice holder). |
|||||
|
Environmental protection |
IP66 |
||||
|
Temperature resistance |
long-term: -40°C to +80°C; short-term: -60°C to +160°C |
||||
|
Material |
Sheet steel (Stainless steel - optionally) |
||||
|
Color |
RAL7035 |
||||
|
Lock |
Standard: Double-bar lock insert |
||||
- FTTH
- Telecom
CMS_01-08_EN-MOMB
