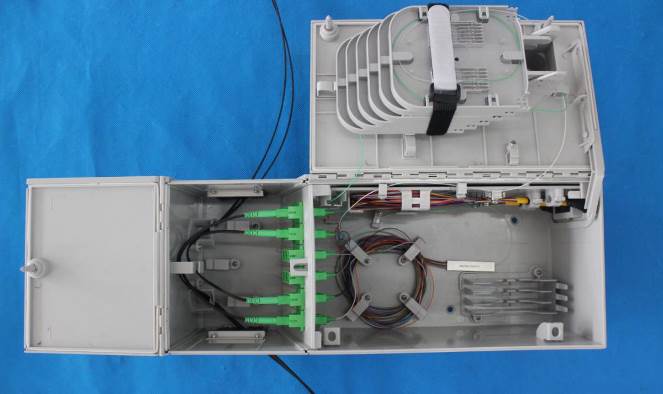

Termination box MOTB-DG03 provides protection splice with optical fibre and pigtail, and can storage remaining cable inside the closure. Applying in the condition optical fiber connect into indoor termination. Termination box MOTB-DG03 is designed for FTTx application, which is suitable for jointing optical cables and pigtails, protects fiber optic splices and helps to distribute drop cables.

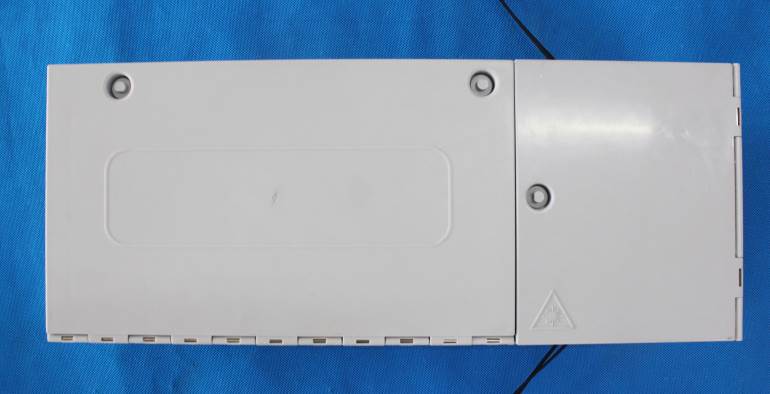

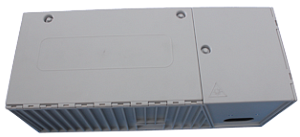

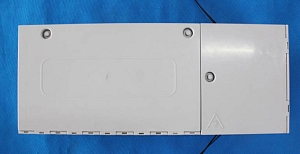

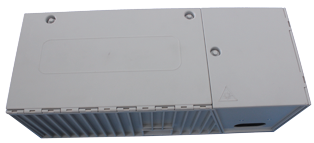

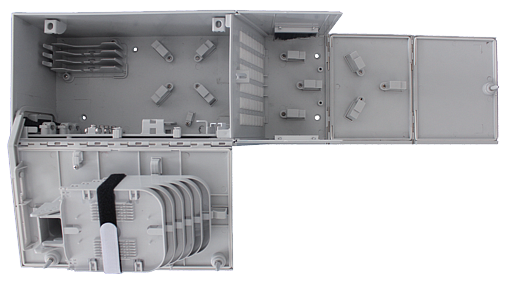

MOTB-DG03 Termination Box
• Compact design (450 x 150 x 180 mm)
• Free breathing box for indoor use
• In-line and butt configuration possible for main cable
• Wrap around cable seals for main cable and drops
• Not required to cut loop-through fibers from riser cable
• Compatible with mechanical splice and heat shrink protective sleeves
• LSZH material
• Transient free customer provisioning
• Drop cables are terminated individually
• Separate storage of un-connected fibers from spliced drop fibers
• Possibillity to integrate PON splitters
• Main cable up to 16 mm
• Easy drop cable termination on strain relief device
Technical specification:
|
Model |
Cable port |
Spliced fiber storagecapacity(single fusion) |
PLC splitter |
Adaptors |
Protection class |
|
MOTB-DG03 |
4 cable ports (for cables up to 16 mm diameter)+48 drop cable ports (3 mm) |
144 splices (6 trays) |
1:8, 1:16 |
48x SC |
IP54 |
- FTTx
