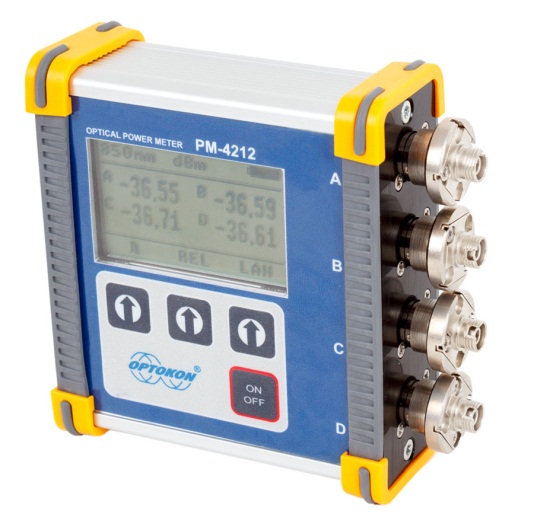

PM-4212 – Compact 4 port optical power meter

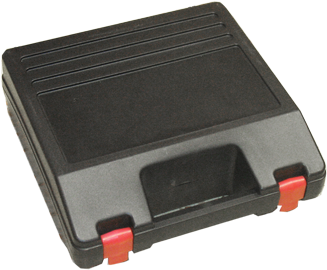

PM-4212 box

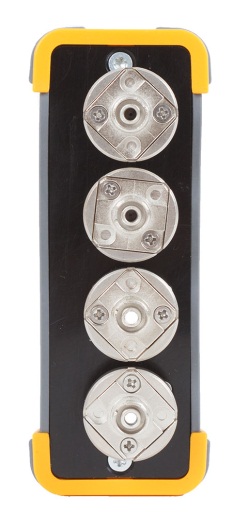

PM-4212 adapter
PM-4212 adapter
PM-4212 adapter
PM-4212 adapter

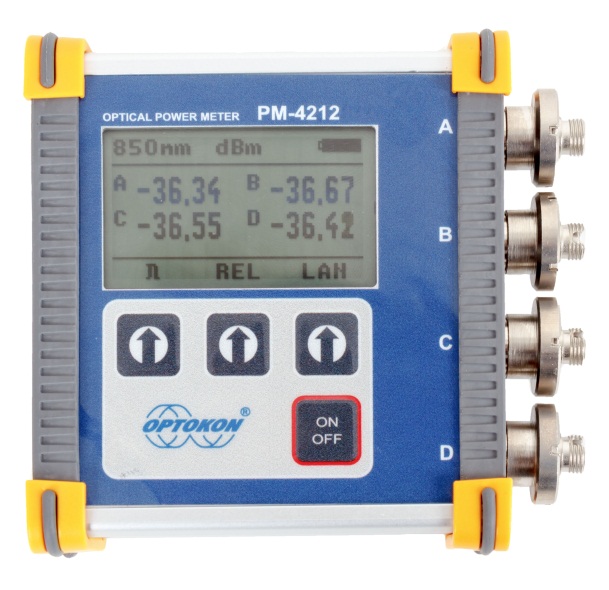

PM-4212
PM-4212
PM-4212

PM-4212 – Compact 4 port optical power meter

The PM-4212 is a 4 port portable optical power meter. The small size does not prevent the optical power meter fulfilling the operational requirements of a full size tester.

The power meter is designed for simultaneous measurement of up to 4 single mode or multimode fibers. All four input interfaces are fitted with 1mm InGaAs photo detectors, with changeable ADP adapters for a wide range of single mode and multimode fiber connectors.

  • Features
  • Specifications
  • Application
  • Documents

•    Stand-alone power meter
•    USB probe – accessory for testing workstation
•    Ethernet probe – accessory for testing workstation
•    Small size, lightweight
•    4 channel power meter
•    Aluminum case
•    SM & MM fiber testing
•    Easy changeable connectors for wide ranging applications
•    Absolute and Relative optical power measurement
•    Ethernet RJ-45 port and USB port:
    for full control via simple commands
•    USB port:
    for firmware upgrade
    for charging the battery
•    Built-in Li-Pol rechargeable battery
•    Battery status indicator, Auto Off

Power Meter

Value

Unit

Note

Photo detector

1

mm

InGaAs

Working wavelengths

850, 1300, 1310
1490, 1550, 1625

nm



Dynamic range

-60 to +10

dBm

1300, 1310, 1490, 1550, 1625 nm

-53 to +17

dBm

850 nm

Uncertainty

± 5

%

1310, 1550 nm at -20 dBm

Resolution

0.01





General specifications

Value

Unit

Note

Dimensions

100 x 105 x 40

mm

with TE-ADP-FC adapter

Weight

340

g

with battery

Operation temperature

-10 to + 50

°C



Storage temperature

-40 to + 70

°C



Humidity (non-condensing)

0 to 95

%



Battery working time

100[1]

Hours

3200 mA/h Li-Pol


[1] Without Ethernet module

  • Standalone power meter or as part of a testing workstation
  • Communication with control software is through the USB port or an Ethernet network.
