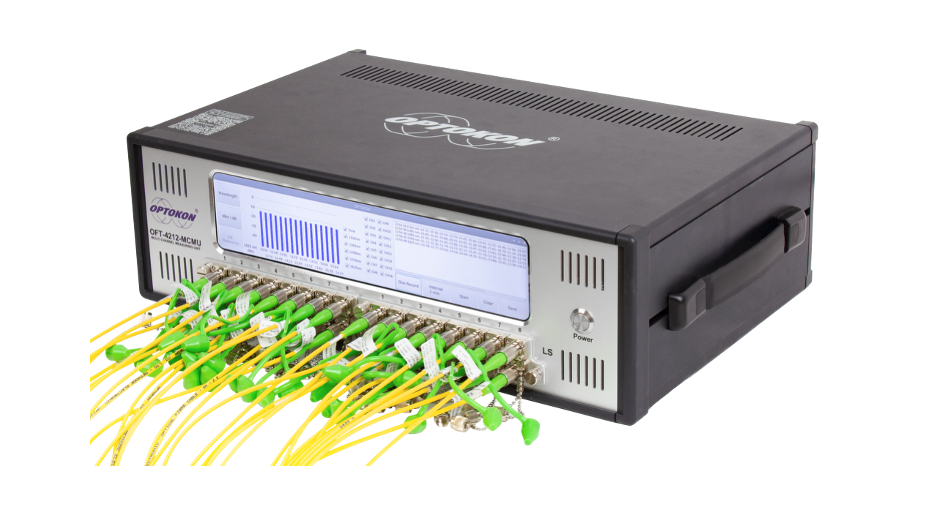

OFT-4212-MCMU is a connector assembly test station, equipped with set of Light sources, Optical Return Loss module, 16 channels power meter and control unit with touch display.
OFT-4212-MCMU Fiber optic 16 channels optical test station
This solution provides full automated test of connector with graphical guidance.
Serial numbers of tested connectors can be entered manually or by QR code reader.
Measured values are checked if they are within expected range, then displayed in GREEN or RED color as a warning.
If there is a warning, the measurement can be easily repeated.
All measured data are automatically stored on local SSD.
Configuration:
Connector test:Insertion loss at 850, 980, 1310, 1383, 1490, 1550, 1625 nm
Return loss at 1550 nm
OFT-4212-MCMUR front panel schematical view
Variants:
OFT-4212-MCMU16x LS output, 16x PM input, without ORL testing
OFT-4212-MCMUR1x LS output, 16x PM input, with ORL testing
OFT-4212-MCMU OFT-4212-MCMUR
|
Light source |
|
|
Interface |
FC/APC |
|
Working wavelengths |
850, 980, 1310, 1383, 1490, 1550, 1625 nm |
|
Wavelength accuracy |
± 2.0 nm |
|
Wavelength stability, 24 hrs |
± 0.1 nm |
|
Output power |
0 dBm |
|
Accuracy |
± 0.3 dB |
|
VFL – visual fault locator, wavelength |
650 nm |
|
Power meter |
|
|
Interface |
FC/PC |
|
Photodetector |
InGaAs |
|
Spectral wavelength |
850-1700 nm |
|
Calibrated wavelengths for SM measurement |
1310, 1383, 1550, 1625 nm |
|
Dynamical range |
-50 to +10 dBm |
|
Uncertainty |
± 5 % |
|
Resolution |
0.01 |
|
Displayed units |
dBm, dB, W |
|
Return loss meter |
|
|
Dynamic range |
0-70 dB |
|
Working wavelength |
1550 nm |
|
Accuracy |
0-50 dB: 0.5 dB 50-70 dB: 1.0 dB |
|
Other functionality |
|
|
SW for temporal data collection and storage |
16 channels |
|
Memory capacity |
5000 |
|
Display results simultaneously in all 16 channels |
Text / graphical |
16-channels multifiber connector – patchcord testing
