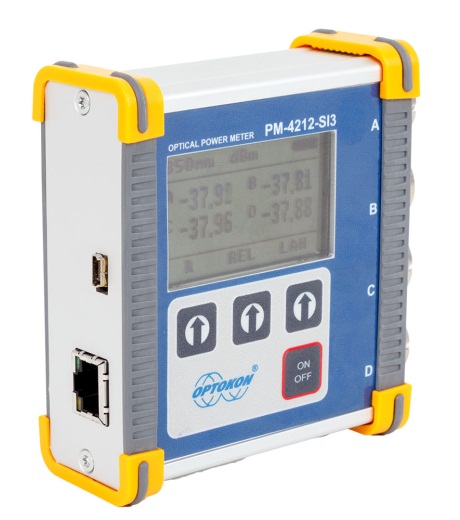

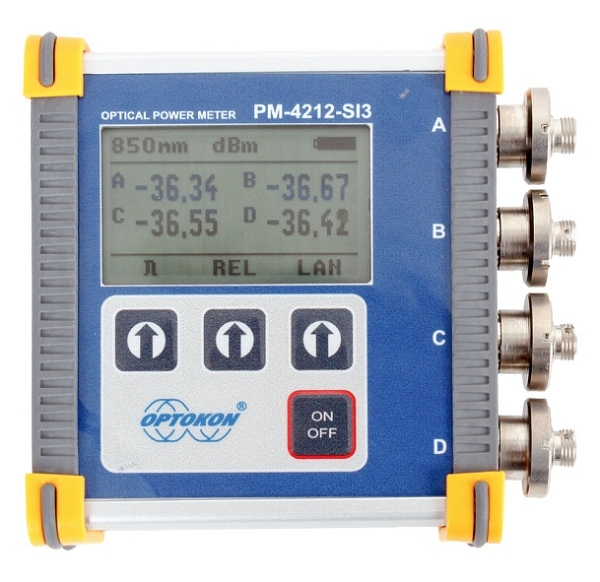

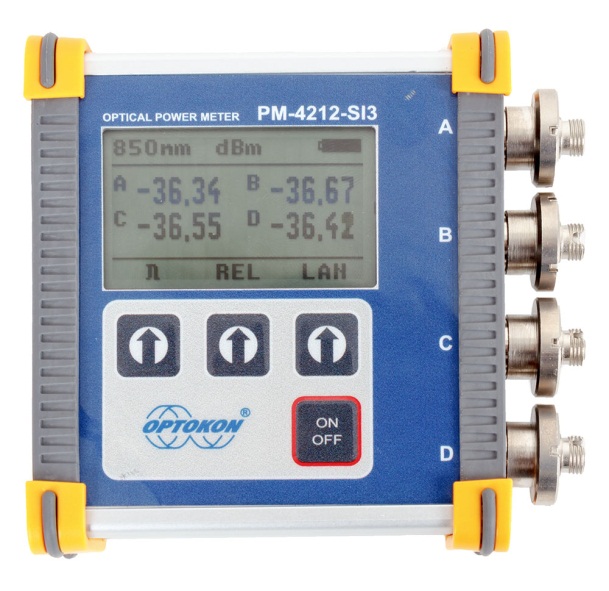

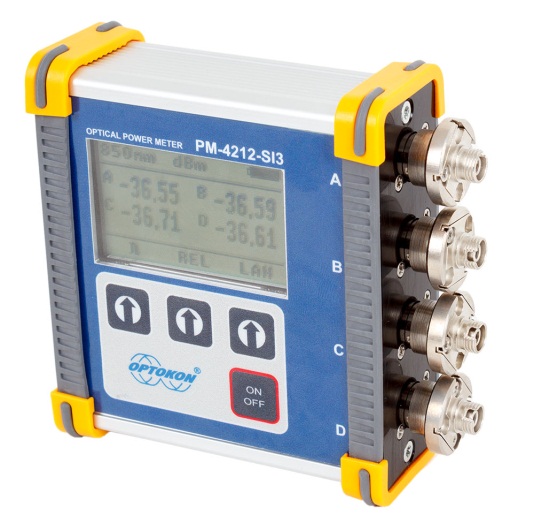

The PM-4212-SI3 is a 4 port portable optical power meter. The small size does not prevent the optical power meter fulfilling the operational requirements of a full size tester.

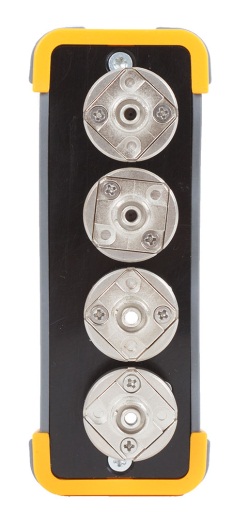

The power meter is designed for simultaneous measurement of up to 4 multimode fibers. All four input interfaces are fitted with 3.6 mm Si photo detectors, each with a 13 mm2 working area and with changeable TE-ASP adapters for a wide range of MM fiber connectors.
• Stand-alone power meter
• USB probe – accessory of Testing Workplace
• Ethernet probe – accessory of Testing Workplace
• Small size, light weight
• 4 channel power meter
• Aluminum case
• MM fibers testing
• Easy changeable connectors for wide applications
• Absolute and Relative optical power measurement
• Ethernet RJ-45 port and USB port:
for full control via simple commands
• USB port:
for firmware upgrade
for charging the battery
• Built-in Li-Pol rechargeable battery
• Battery status indicator, Auto Off
| Power Meter | Value | Unit | Note |
| Photodetector | 3.6 mm Si | 13 mm2 | |
| Working wavelengths | 650, 850, 980 | nm | |
| Dynamic range | -65 to +10 | dBm | |
| Uncertainty | ± 5 | % | |
| Resolution | 0.01 | ||
| General specifications | Value | Unit | Note |
| Dimensions | 100 x 105 x 40 | mm | with TE-ASP-FC adapter |
| Weight | 280 | g | with battery |
| Operation temperature | -10 to + 50 | °C | |
| Storage temperature | -40 to + 70 | °C | |
| Humidity (non-condensing) | 0 to 95 | % | |
| Battery working time | 100 | hours | 3200 mA/h Li-Pol |
