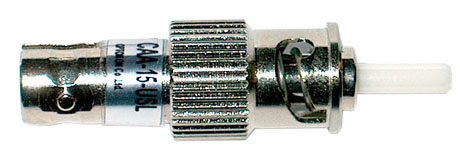

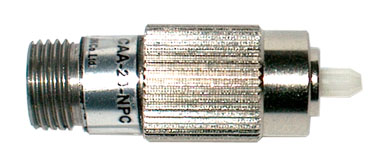

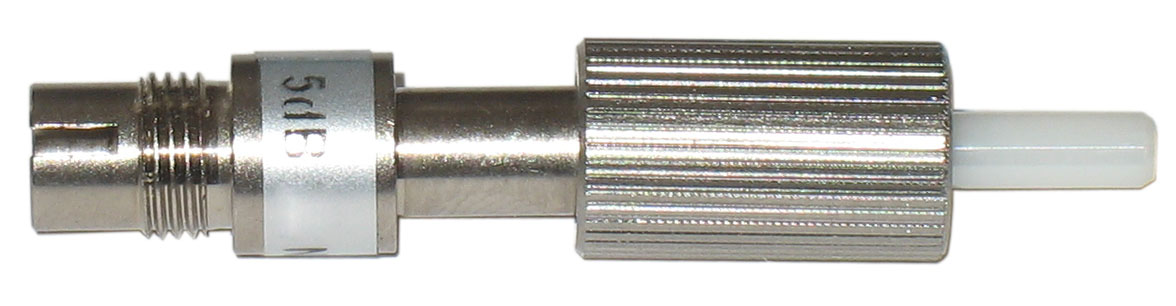

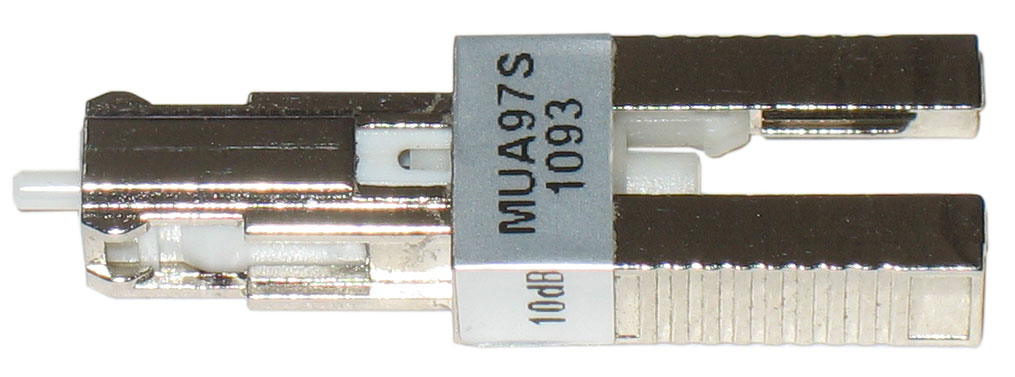

The plug-type singlemode attenuators are used directly on the ends of fiber optic jumpers prior to installation in adapters. These attenuators provide a fixed precise level of attenuation and feature excellent return loss. Low wavelength dependency determines them for using in WDM and DWDM transmission systems. The CAA series attenuators are available with UPC or APC polish for SC, FC, DIN and LC connector types and UPC for ST and MU connectors.

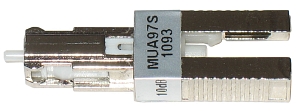

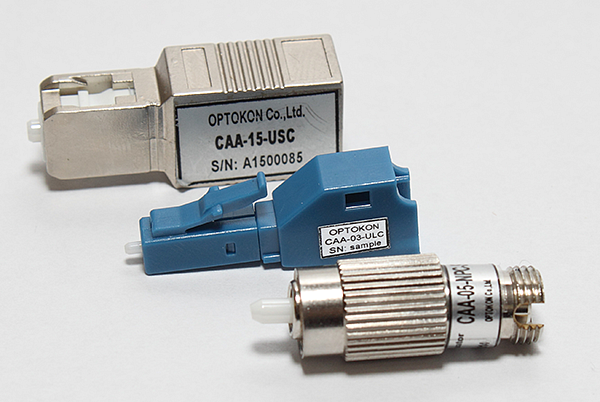

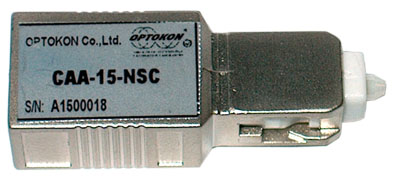

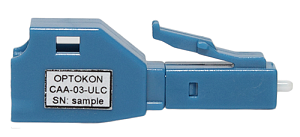

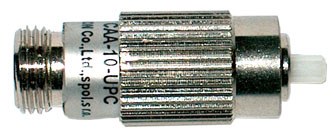

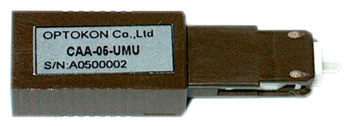

Plug-Type (Male/Female) Attenuators CAA series – Singlemode
- Connector/adapter plug type
- Precise attenuation
- Wide attenuation range, 1 dB step
- Return loss:
- > UPC 50 dB
- > APC 60 dB
- Low ripple broadband design for operation at wavelength 1250 to 1650 nm
- High power endurance
| Parameter | |
| Attenuation range | SC, FC, ST, MU: 1 – 30 dB, step 1 dBDIN: 5, 10, 15, 20, 25, 30 dB |
| Operational wavelength | 1250 to 1650 nm |
| Stability1 attenuation range 1 - 4 dBattenuation range 5 - 9 dBattenuation range ≥10 dB | StandardPremium±0.5 dB ±0.5 dB±0.8 dB ±0.5 dB±10% ±0.5 dB |
| Return loss UPC polishingAPC polishing | StandardPremium≥ 50 dB≥ 55 dB≥ 60 dB≥ 65 dB |
| Side load test (EN 61300-2-24) | < 0.2 dB/1 N (OPTOKON adapter) |
| Power durability | 250 mW |
| Operating temperature | -40 to 80 °C |
| Storage temperature | -40 to 80 °C |
Note: 1) –40 to +80°C over 10 cycles
- Fiber optic systems
- Receiver padding for optical receiver protection
- Optical power equalization
- Linearity and dynamic range testing in laboratory equipment
