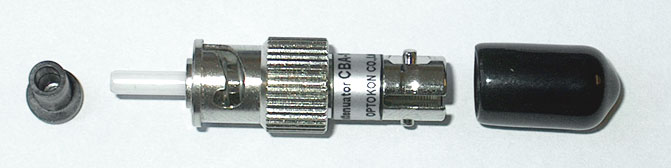

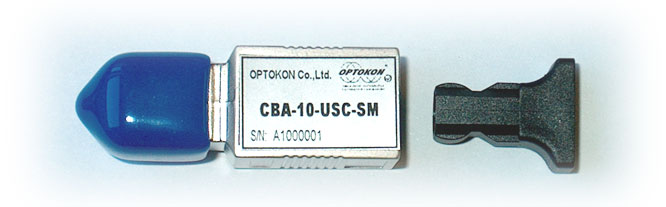

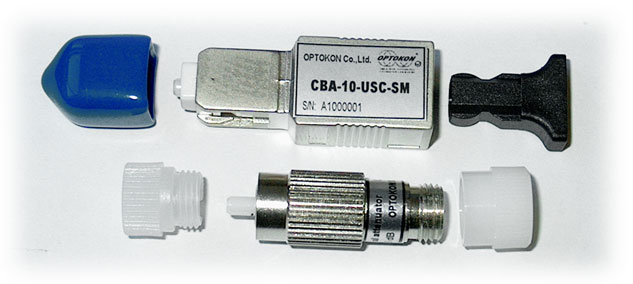

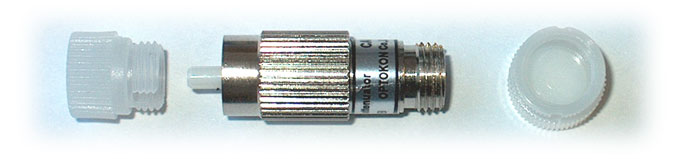

The plug-type CBA series singlemode attenuators are used directly on the ends of fiberoptic jumpers prior to installation in adapters. These attenuators provide a fixed level of attenuation at defined wavelength. The CBA series singlemode attenuators are available for SC, FC and ST connector types. Operational wavelength range is 1310 nm or 1550 nm.
Plug-Type (Male/Female) Attenuators CBA series – Singlemode
- Precise attenuation
- Singlemode applications
- Operational wavelength 1310 nm or 1550 nm
- Attenuation range 2 – 30 dB
- Easy installation
- High power endurance
|
Parameter |
|
|
Attenuation range |
2 – 30 dB |
|
Operational wavelength |
1300 or 1550 nm |
|
Stability attenuation range 2 to 5 dB attenuation range 6 to 10 dB attenuation range > 10 dB
|
±0.8 dB ±1.0 dB ±10 %
|
|
Return loss |
>50 dB |
|
Power durability |
150 mW |
|
Operating temperature |
-25 to 70 °C |
|
Storage temperature |
-40 to 80 °C |
- Fiberoptic systems
- Receiver padding for optical receiver protection
- Optical power equalization
- Linearity and dynamic range testing in laboratory equipment
- Optical margin testing
- BER testing
ATT_05-01_EN-CBA_Plug_Type_SM
