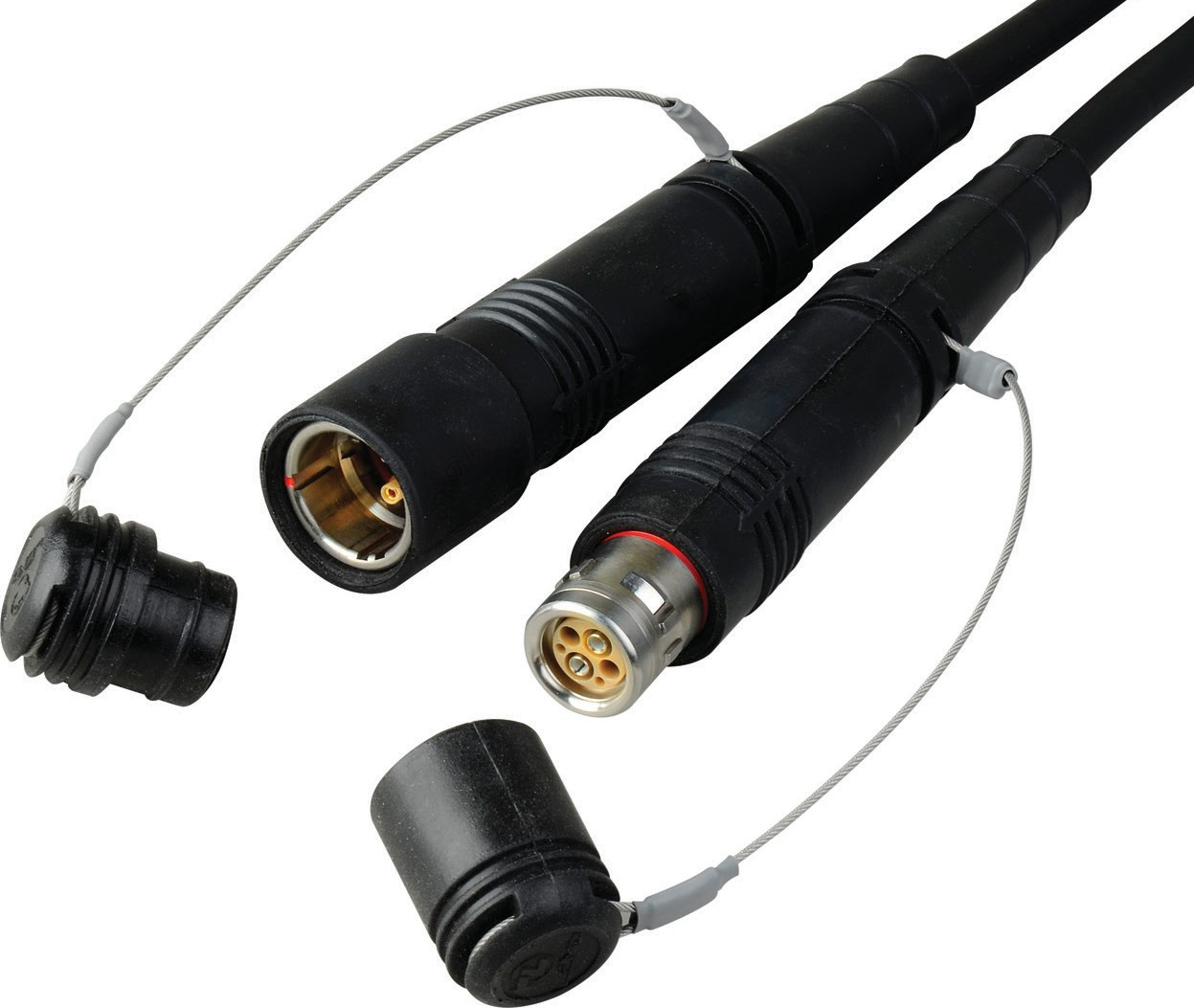

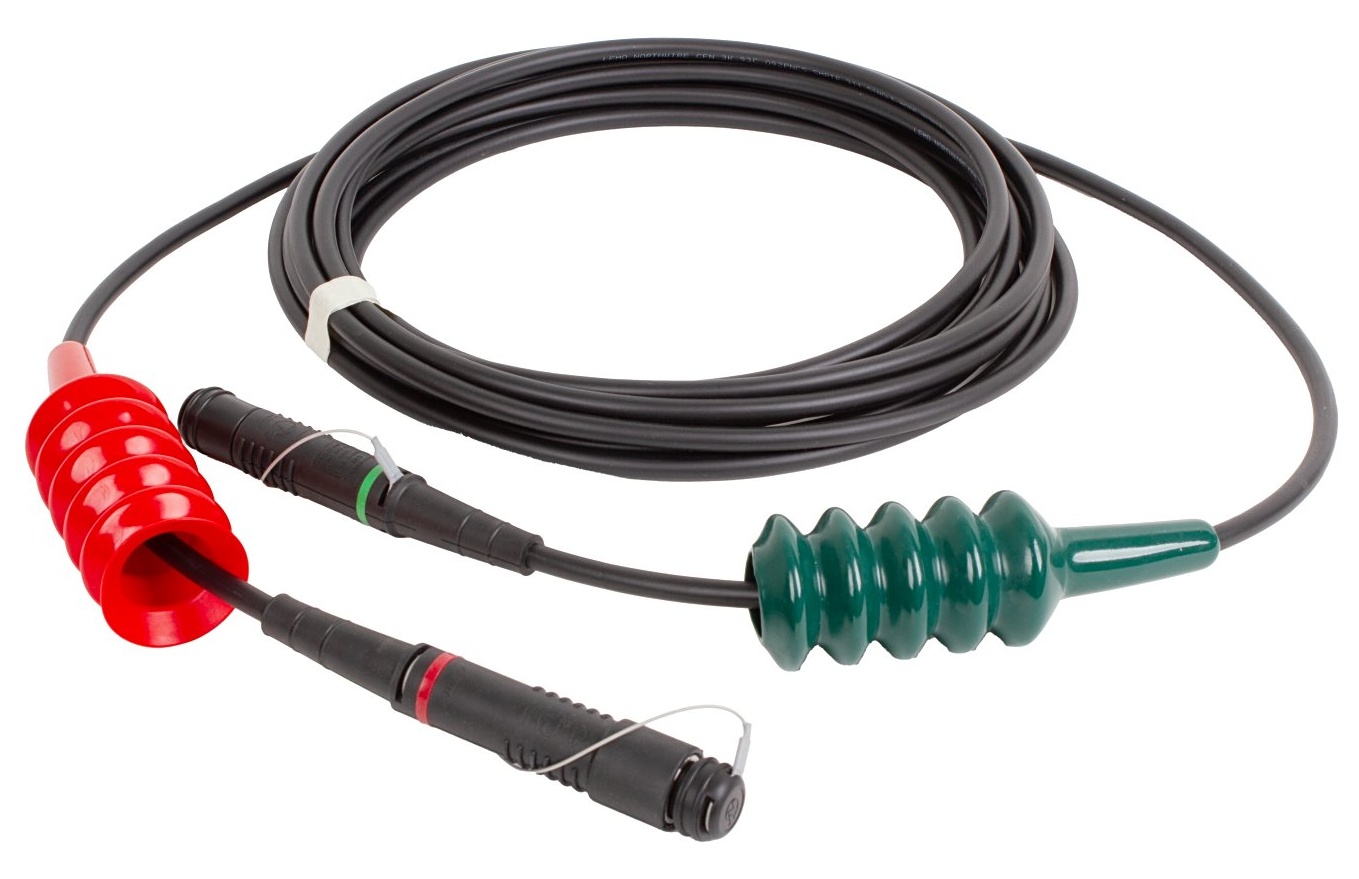

LEMO SMPTE Fiber Optic HDTV Interconnection Cable Assembly. The cable consists of four mains cores, two signal lines, two fixed cores, a tinned copper braid and a flexible PUR sheath. It is equipped with a LEMO FUW plug and a LEMO PUW socket. The cable is suitable for transmitting audio and video signals over long distances and for supplying power to system cameras.

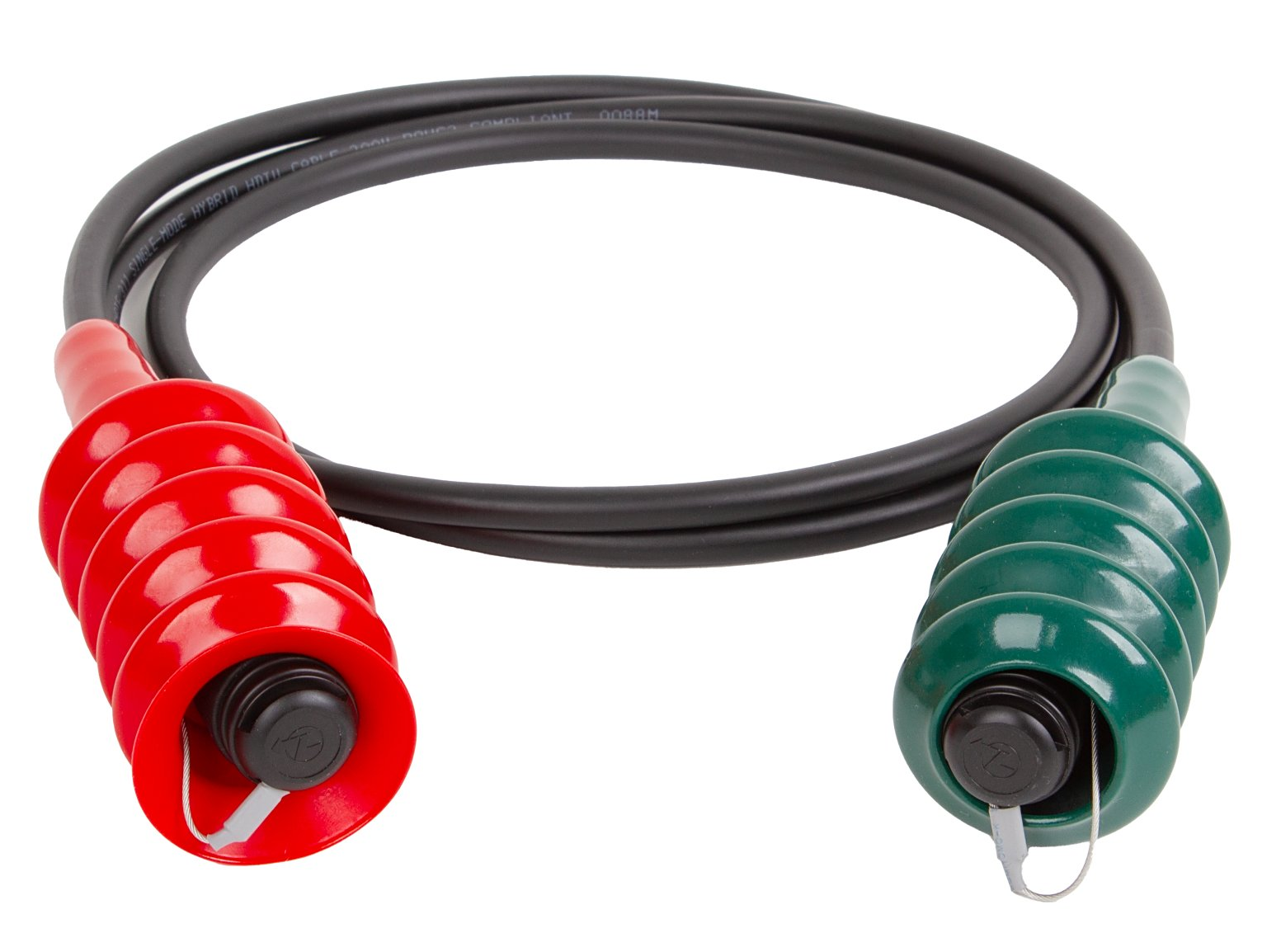

PUW - FUW Patchcord (cable) SMPTE LEMO FUW Male Plug to PUW Female Socket
- Features top-quality LEMO connectors with a protective elastomer sleeve for added durability
- Can be used with high-end broadcast cameras made by SONY, JVC, Panasonic, Grass Valley, and the Blackmagic Fiber Converter
- Includes four copper lines (2 for power and 2 for remote control)
- Utilizes the HD camera cable CAM311, which has a tough PUR outer jacket that makes it ideal for use in mobile outdoor settings
- Consists of two Single-Mode optical fibers with E9/125 µm diameter that meet the ITU G.657.A standard
- Comes with a central steel strength member that provides strain relief for added protection
- Compliant with the SMPTE-311M and SMPTE-304M standards
