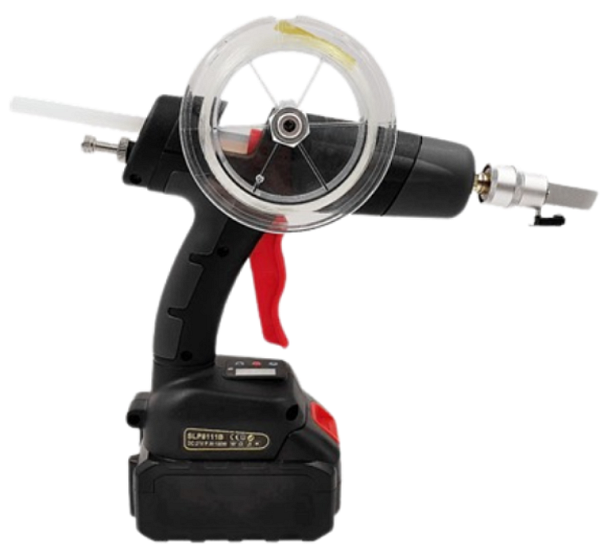

HY-526 Glue Gun For Invisible Fiber (Digital Display)
docx_e0b0d87144968eb87f45c364844ca122

HY-526 Glue Gun For Invisible Fiber (Digital Display)

FTTR Glue Gun:

Invisible fiber cabling glue gun is suitable for FTTR indoor invisible fiber cabling hot melt glue fixed construction. Equipped with notched gluing mouth, stable gluing effect, also equipped with invisible fiber cable tray fixed column and fiber outlet slot, easy wiring, simplify the operation process.

  • Features
  • Specifications
  • Application
  • Documents
  • Glue and fiber come out together, it is a convenient, faster, more beautiful, more convenient and efficient wiring experience
  • 360° adjustable nozzle: horizontal and vertical, flexible switching effectively solve the wiring in the process of Angle, dead Angle, corner problem
  • 100-220°C temperature range, adjust the temperature according to their own use. 100 °C heating to ensure that the glue gun temperature interval operation, 220°C high temperature heating to make glue out fast, suitable for continuous operation

Dimension

 LxWxH: 280 x 80 x 245 mm（including battery height）

Weight

1050 g

Rated voltage of battery

 21 V DC

Battery

 10 lithium ions

Battery capacity

3000 mAh

Temperature control

 Adjustable

Charging Voltage

21 V

Charging current

2 A

Charging time

About 5 hours

Warm-up time

Room temperature 6-8 minutes

Standby time

Fully charged for about 120 minutes

Maximum temperature

 220 ℃

Applicable rubber rod diameter

Ø 11 mm

Gun nozzle design

 360° adjustable
  • FTTR indoor invisible fiber cabling hot melt glue fixed construction
