The LMSW-42M(P) is a small version of ruggedized field switch, which has been developed according to the requirements for optical networks in harsh environmental conditions. It is designed for operation in military tactical networks, for installation in heavy industry enterprise, oil refineries and mining plants, or for rescue actions during natural disasters. The switch combines all advantages: excellent optical network performance and rugged construction.
The Gigabit Ethernet LMSW-42M(P) switch includes 4x RJ-45 LAN ports and 2x optical fiber ports. The switch supports a variety of management functions, including STP/RSTP/MSTP and ITU-T G.8032 Ring<50 ms recovery time, advanced PoE management functions such as PoE device auto-checking and auto reset, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
The switch is classified as power source equipment (PSE) and can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need of additional power cable wiring. The switch operates in wide operating temperature range -40 to +75 °C.

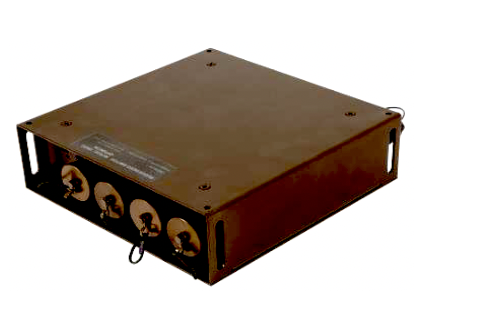

LMSW-42M(P)
• Robust compact design resistant to harsh environmental conditions and rough handling
• 2x 100/1000Base-X: HMA FO connectors
• 4x 10/100/1000Base-T: RJ-45 interface with support of IEEE802.3af/at PoE output (30 W per Port)1
• Built-in power booster design up to 55 VDC for PoE/PoE+ output
• Power supply: 10-60 or 481 V DC
Functionality:
• Advanced PoE Management, PoE PD auto detection and auto reset, PoE configuration for power planning, weekly scheduling
• Cable diagnostic, measuring cable OK or broken point distance
• Support IEEE802.3az EEE (Energy Efficient Ethernet) Management to optimize the power consumption
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR) for cabling redundant
• u-Ring for Redundant Ethernet Ring, recovery time<20ms in 250 units
• QoS, Traffic classification QoS, CoS, Bandwidth control for Ingress and Egress, Strom Control, DiffServ
• IEEE802.1q VLAN, port base VLAN, Mac base VLAN, IP subnet base VLAN, Protocol base VLAN, VLAN translation, MVR
• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
• IGMP/MLD snooping V1/V2/V3, IGMP Filtering / Throttling, IGMP query, IGMP proxy reporting, MLD snooping
• Security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgradeing failure
• DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
• RMON, MIB II, Port mirroring, Event syslog, DNS, NTP/SNTP, IEEE802.1ab LLDP
• Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
• CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
For more specifications, please contact us. Due to the sensitive nature of these systems we do not publish full technical data online.
