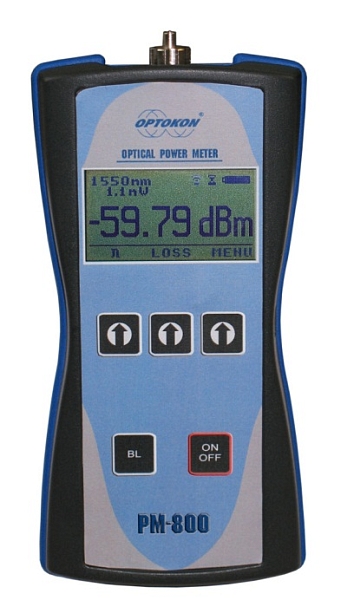

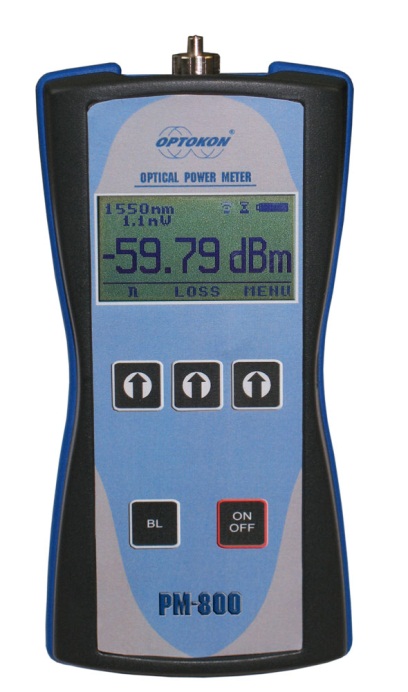

The PM-800N is a part of OPTOKON test equipment designed for thorough fiber line diagnostic. It is designed to measure absolute or relative optical power in optical networks. It can be used as portable power meter or as a USB probe. The changeable adaptor design allows the simple exchange of optical connectors according actual need.

Automatic wavelength detection

Automatic wavelength detection (AWD) mode allows using OPTOKON Light source LS-800N and Power meter PM-800N automatically switching the measured wavelength and decreases the possibility of faulty measurement.

Cycle mode

Cycle mode at Light source allows the device to automatically toggle between available wavelengths

The Li-Pol rechargeable battery ensures long term working time with a minimum life time of 2 years. The unit is able to store measurement data which can be uploaded to PC. The backlight function of the display facilitates the reading of measured data in poor lighting conditions
