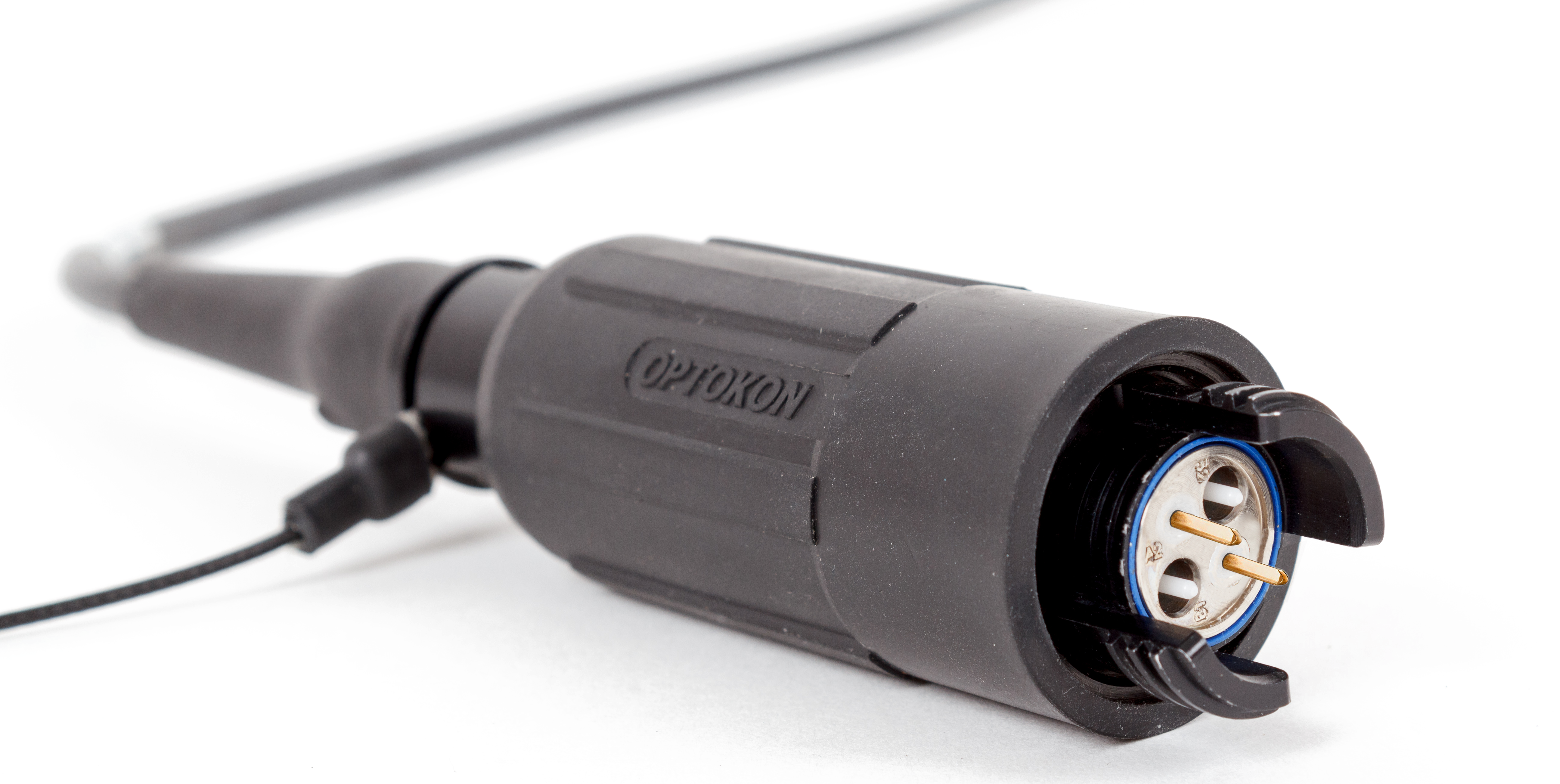

The new HMAOP-JF-HX hybrid connector, to compliment the existing and wide range of harsh environment products. The HMAOP-JF-HX uses the design of 1.25 mm ferrules, already industry proven in both single mode and multimode applications and electrical contacts. The HMAOP-JF-HX ideally suits long distance military applications where the excellent transmission parameters are desired. The unique design of the HMAOP-JF-HX allows users to ensure high performance of SFF, Small Form Factor optical connectors in the field conditions. The coupling sleeves are removable by using a special tool, which allows easy cleaning and ferrules end face inspection.

Copper wires are terminated at pin, male connector or at socket, female connector. It is recommended to use the female connectors for termination of “live” electrical cables.

Rapid deployment and ‘daisy chaining’ is achieved with appropriate connector designs, eliminating the need for adaptors. Connectors interconnection; facilitates expansion of cable distances by insertion of standard cable harnesses. The HMAOP-JF-HX is IP68 rated and fully sealed.
