The LMC series introduces the media converter housed in a robust metal box. It provides SMPTE connectors for fiber optic cable and copper twisted pairs ports for harsh environmental conditions. The LMC rugged design extends the use of Ethernet in harsh environmental conditions – broadcasting, heavy industry, petrochemical, mines, and other field applications. It meets the demands for mobility, easy installation and the mechanical resistance necessary for deployment in the field. The LMC converters give you the freedom to extend your 10/100/1000 Mbps cabling distance by allowing connectivity up to 2 km over MM fiber, up to 30 kilometers if use the SM fiber. LED indicators show the power status of the converter, LAN port and fiber activity.
The basic LMC-01.GM configuration includes the media converter in ruggedized box. The optical and electrical ports converters are terminated at rugged connectors, FXW SMPTE type for FO, MRJ (RJ-45) for copper LAN interface. Power supply is ensured from data cable PoE – PD powered device.

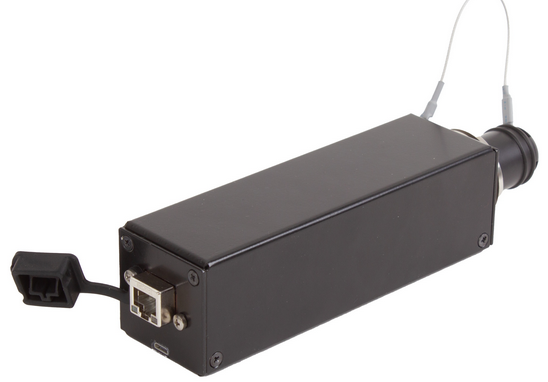

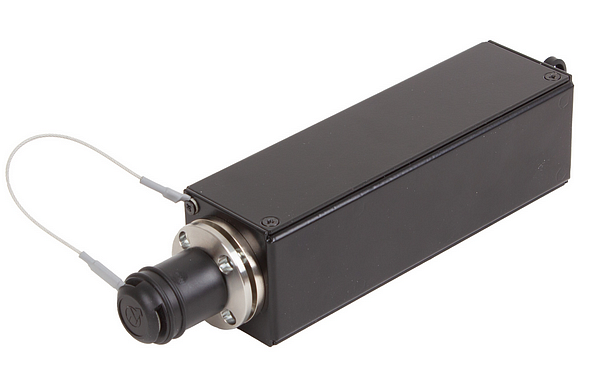

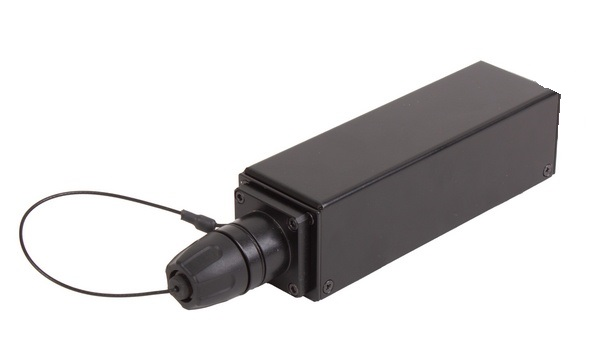

LMC-01.GM
• Rugged design for use in harsh environments
• Small compact box
• 10/100/1000BASE-T to 1000BASE-X converter
• FXW SMPTE FO interface
• Auto-Cross over for MDI/MDIX in TP port
• Support Jumbo Frame 12K Bytes
• Support Link Fault Pass Through (LFPT) function
• PoE power supply
Accessories:
• Documentation and User Manual
Options:
• Data UTP cable
• SMPTE cable with LEMO connectors
For more specifications, please contact us. Due to the sensitive nature of these systems we do not publish full technical data online.
Our solutions keep people and data connected where standard gear gives up. Built for extreme temperatures, dust, moisture, vibration, and electromagnetic stress—ready for rapid field deployment and long-term operation in critical infrastructure.
Typical applications:
- temporary installations
- military tactical networks
- petrochemical and heavy industry
- disaster control
