For intra-building backbone cabling, suitable for plenum and riser installations.

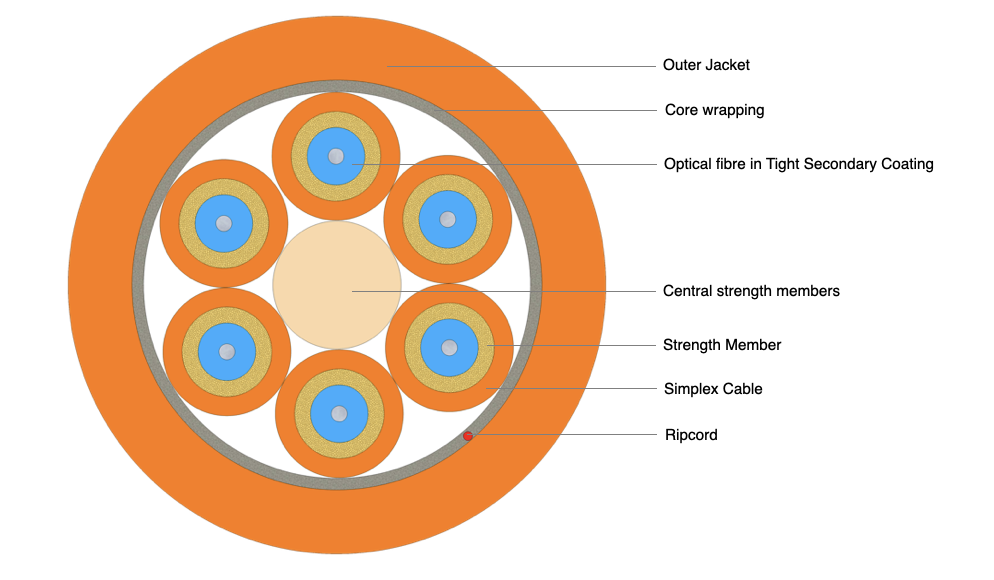

Indoor Breakout Cable 6F
Intra-building backbone cable suitable for plenum and riser spaces—clean routing and reliable performance across floors.
| Fiber count | 6 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fiber colour | Natural |
| Buffer material | Thermoplastic FR-LSHF compound |
| Buffer diameter | 0,9 mm |
| Simplex jacket material | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Simplex Diameter | 2.0 mm |
| Central Strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Outer jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Outer Jacket thickness | 1.0 mm |
| Ripcord | 1x under outer jacket |
| Cable outer diameter | 8.4 [mm] |
| Max. Loading (Short Term) | 700 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 1000 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius not load | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 20 [OD] EN 60794-1-21-E11 |
| (tight buffer) | -20 to +60 [°C] EN 60794-1-22-F1 |
| (free buffer) | -5 to +50 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Installation temperature range | 0 to +50 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 66 [kg/km] |
| Class of fire reaction | Eca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-I-BRCS-6(6x2.0)x9AHH-yy-zz x – buffer stripability yy – fiber type zz – jacket color (see Cable code datasheet) |
0189_OPK-I-BRCS-6(6×2.0)x9AHH
