Cable for intra-building backbone cabling with improved flexibility.
Indoor Flexible Breakout Cable 6F
Flexible intra-building backbone cable for smooth routing between floors and rooms.

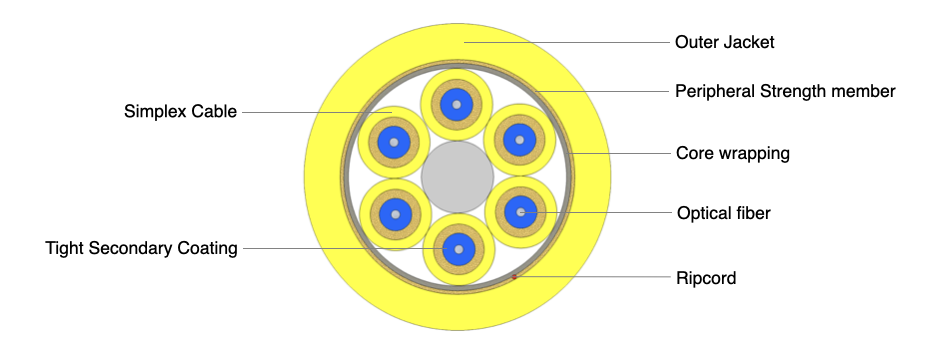

| Fiber count | 6 |
| Fiber Type | G.657.A1, G.657.A2, G.655, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Buffer material | Halogen-free flame-retardant thermoplastic compound |
| Simplex jacket material | Halogen-free flame-retardant thermoplastic compound |
| Simplex Diameter | 2.0 mm |
| Core wrapping | Water-swellable tape |
| Inner jacket | Halogen-free flame-retardant thermoplastic compound |
| Peripheral strength members | Aramid yarn |
| Outer jacket | Halogen-free flame-retardant thermoplastic compound |
| Outer Jacket thickness | 1.0 mm |
| Ripcord | 1x under outer jacket |
| Nominal outer diameter | 8.5 [mm] |
| Max. tensile loading (Short Term) | 650 [N] EN 60794-1-21-E1 |
| Max. tensile loading (Long Term) | 250 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 1000 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius not load | 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 15 [OD] EN 60794-1-21-E11 |
| (T9 buffer type) | -30 to +60 [°C] EN 60794-1-22-F1 |
| (F9 buffer type) | -5 to +50 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -30 to +60 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +50 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 70 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Ordering Code | OPK-I-BRFS-6(6x2.0)x9AHAH-yy-zz x – buffer stripability yy – fiber type zz – jacket color (see Cable code datasheet) |
0283_OPK-I-BRFS-6(6×2,0)x9AHAH
