For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection

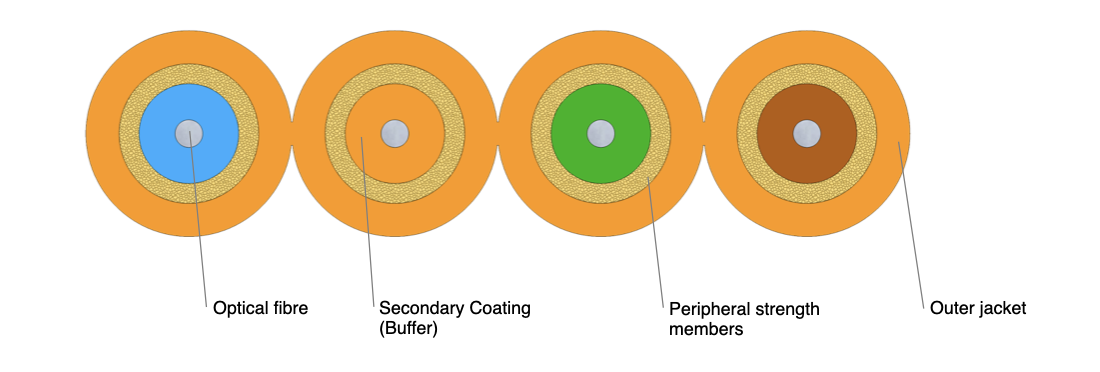

Quadplex Cable
A versatile indoor cable for quick patching, everyday office LAN runs, and simple point-to-point ties.
| Fibre count | 4 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | Natural |
| Buffer diameter | 0,9 mm |
| Buffer material | FR-LSHF Thermoplastic |
| Buffer colour | Blue, Orange, Green, Brown |
| Strength members | Aramid yarns |
| Outer jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Cable outer diameter | 7.9×1.85 [mm] |
| Max. Tensile Loading (Short Term) | 330 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 500 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | (along a longer axis) 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load (along a longer axis) | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | tight buffer -20 to +60 [°C] EN 60794-1-22-F1 |
| free buffer | -5 to +50 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 13.5 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-I-SPCS-4(4x1.8)x9AH-yy-zz x – buffer stripability yy – fiber type zz – jacket color (see Cable code datasheet) |
0037_Quadplex_Cable
