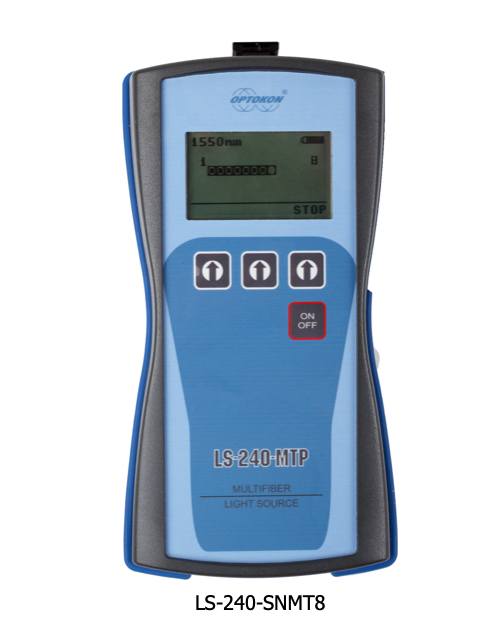

LS-240-SNMT Multifiber Optical Light Source

LS-240-SNMT Multifiber Optical Light Source

The LS-240-SNMT multifiber optical Light Source is designed for testing of patchcords and cables terminated with multifiber SN-MT connectors. The portable testing device fulfils all necessary technical field equipment requirements. LS-240-SNMT can send light one by one into all 8/16 fibers of SN-MT connectors, the switching process can be made manually or automatically.

Together with PM-240-SNMT power meter can measure Insertion loss in all 16 fibers at same time, in addition it is able to to check the polarity status of fibers interconnection between both MTP connectors. The output port is based on standard MTP male – pins connector.

The rechargeable battery ensures long term working with a minimum life time of 2 years. Batteries can be charged via a USB port.

  • Features
  • Specifications
  • Application
  • Hand held, light weight
  • Multifiber SN-MT connectors testing
  • No Fanout patchcords required
  • Single or dual wavelength
  • Manual switching through all fibers or Cycle mode
  • Can be controlled remotely via USB
  • Large display with backlight
  • Powered by Li-Pol battery with status indication
  • Battery charging via USB port

Specifications:



Note:



Number of fibers

8/16



Wavelength:    single ʎ

850, 1310, 1550 nm



                     dual ʎ

850/1300 or 1310/1550 nm



Output power

> -10 dBm



Stability    (1 hour, delta/2):

Tested after 20 min warm up, temperature 23 ± 1 °C

          850, 1300 nm

± 0.1 dB



          1310, 1550 nm

± 0.05 dB



Dimensions

200 x 100 x 50 mm



Weight

340 g



Temperature    operating

                     storage

Humidity (non condensing)

-10 to +50 °C

-40 to +70 °C

0 to 95%



Battery working time

> 100 hrs



Battery life time

> 2 years



   Compliant with RoHS-requirements (2002/95/EG, 27.01.2003)

  • Optical network measurements
  • Fiber continuity testing
  • Polarity test
