Universal Cable for backbone cabling in indoor and outdoor applications with improved flexibility.
Flexible Breakout Cable 2F
Universal backbone cable for indoor and outdoor routes—now with improved flexibility for clean, reliable installs.

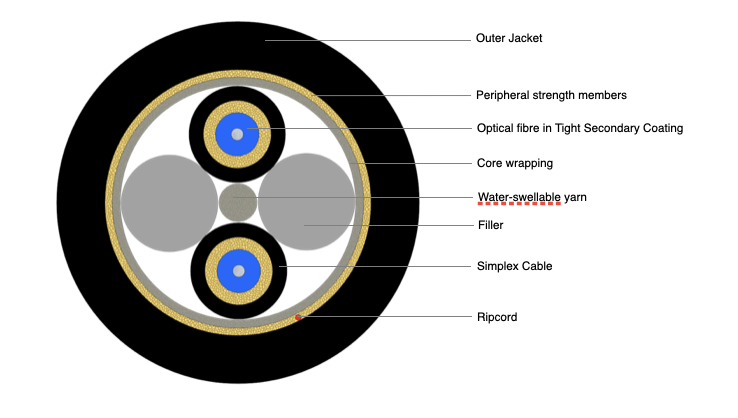

| Fiber Type | G.657.A1, G.657.A2, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fiber colour | Natural |
| Buffer material | Thermoplastic FR-LSHF compound |
| Buffer diameter | 0.9 mm |
| Simplex jacket material | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Simplex Diameter | 2.0 mm |
| Simplex jacket colour | Identical to the outer jacket |
| Filler | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable Aramid yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV Resistant Flame-retardant (V-2, UL94) Thermoplastic Polyurethane resistant to micro-organisms and hydrolysis, |
| Outer Jacket thickness | 1.0 mm |
| Outer jacket | colour Black (RAL9005), Olive Green (RAL6003), Beige (RAL1001), Yellow (RAL1021), White (RAL9010) |
| Cable outer diameter | 7.5 [mm] |
| Max. Loading (Short Term) | 500 [N] EN 60794-1-21-E1 |
| Max. Loading (Long Term) | 180 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 500 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 10 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -30 to +60 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -30 to +60 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 45 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-U-BRFS-2(4x2.0)T9AHAU-xx-yy xx – fiber type, yy – cable jacket colour (see Cable code datasheet) |
0214_OPK-U-BRFS-2(4×2.0)T9AHAU
