Flexible Breakout Cable 24F

Universal Cable for backbone cabling in indoor and outdoor applications with improved flexibility.

Universal backbone cable for indoor and outdoor routes—now with improved flexibility for clean, reliable installs.

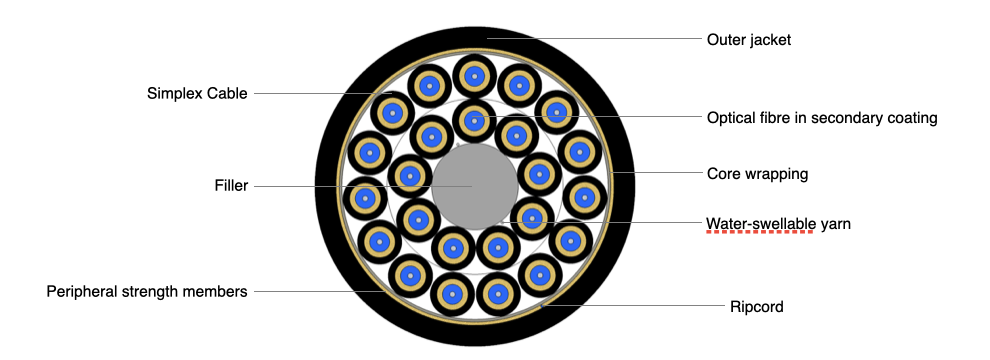

Fiber count	24 (9+15)
Fiber Type	G.657.A1, G.657.A2, G.655, OM2, OM3, OM4, OM5
Fiber colour	Blue
Buffer diameter	0.9 mm
Buffer material	PA12
Buffers colour	Natural-transparent
Simplex jacket material	Halogen-free flame-retardant thermoplastic compound
Simplex Diameter	2.0 mm
Simplex jacket colour	Identical to the outer jacket
Core wrapping	Water-swellable tape
Peripheral strength members	Water-swellable aramid yarns
Ripcord	1x under outer jacket
Outer jacket	UV resistant, halogen-free flame-retardant (V-0, UL94) thermoplastic polyurethane*
Outer jacket colour	Black (other colours available on request)
Outer jacket thickness	1.0 mm
Nominal outer diameter	14.4 mm
Cable Weight (calc.)	160 kg/km

* Chemical protection against rodents and termites possible on request

Max. Tensile Loading (Short Term)	1200 N
Max. Tensile Loading (Long Term)	350 N
Max. compressive loading	1000 N / 100 mm
Max. Impact loading	5 Nm
Min. bend radius not load	10 x OD
Min. bend radius load	15 x OD
Operating temperature range	-40°C to +70°C
Storage temperature range	-40°C to +70°C
Installation temperature range	-15°C to +50°C
Class of fire reaction	Fca

Cable Code (Ordering Code)	OPK-U-BRFS-24(24x2.0)T9AHAU-xx-yy
	OPK-U-BRFS-24(24x2.0)T9AHAYU-xx-yy (with chemical protection against rodents and termites)
xx – fiber type, yy – cable jacket colour (see Cable code datasheet)
