Indoor/Outdoor fiber optic cable for installing into ducts or on grids

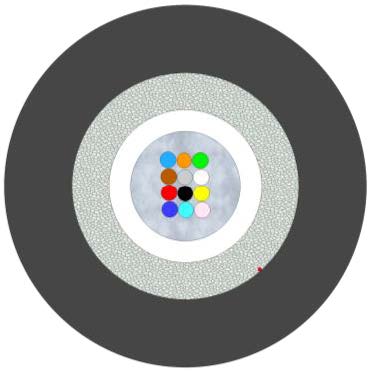

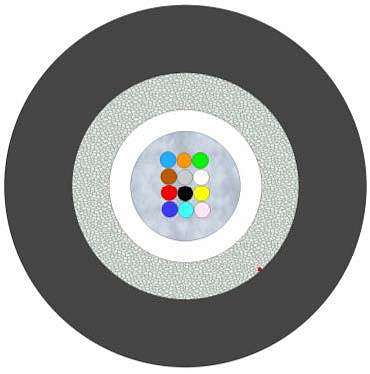

Universal glass yarn protected Unitube Cable (IC) 1200N
Indoor/Outdoor fiber cable for tidy installation in ducts or on overhead grids.
| Fiber count | 2 –12 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |

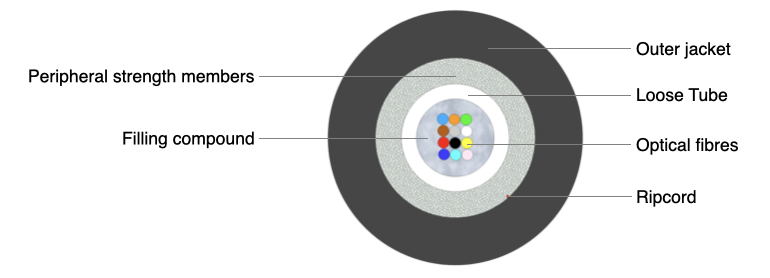

| Tube | PBT buffer tube |
| Tube color | Natural / White |
| Tube diameter | 2.5 mm |
| Filling compound | Low-viscosity filling gel |
| Peripheral strength members | Water-swellable glass yarn |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.2 mm |
| Cable outer diameter | 5.7 mm |
| Cable Weight (calc.) | 36 kg/km |
| Max. Tensile Loading (Short Term) | 1200 N |
| Max. Tensile Loading (Long Term) | 380 N |
| Max. compressive loading | 1000 N/100 mm |
| Max. Impact loading | 10 Nm |
| Min. bend radius not load | 10 x OD |
| Min. bend radius load | 20 x OD |
| Operating temperature range | -20°C to +60°C |
| Storage temperature range | -40°C to +60°C |
| Installation temperature range | -15°C to +50°C |
| Class of fire reaction | Eca |
| Fibre count | Cable Code (Ordering Code) |
|---|---|
| 2 | OPK-U-CTFS-2(1x2.5)LTGH-xx-BK |
| 4 | OPK-U-CTFS-4(1x2.5)LTGH-xx-BK |
| 6 |
OPK-U-CTFS-6(1x2.5)LTGH-xx-BK |
| 8 |
OPK-U-CTFS-8(1x2.5)LTGH-xx-BK |
| 12 |
OPK-U-CTFS-12(1x2.5)LTGH-xx-BK |
xx – fiber type (see Cable code datasheet)
0038_OPK-U-CTFS-12(1x2.5)LTGH
