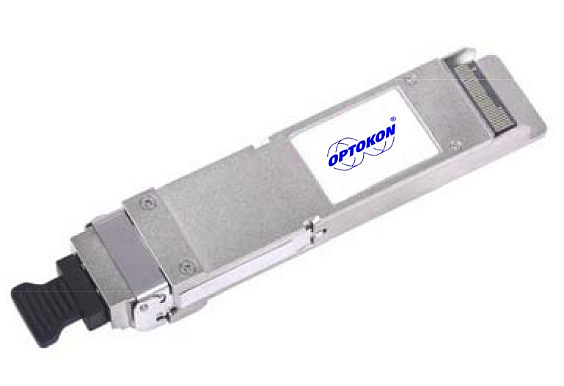

OPTOKON CFP4-LR4 transceivers is designed for high speed communication applications that requiring rates of from 103.125 to 111.81 Gbps. The transceiver converts 4 inputs channel of 25,78 Gb/s to 27.95 electrical data to 4 CWDM optical signals, and multiplexes them into a single channel through an industry standard LC connector.
CFP4-LR4 transceiver has the Digital Diagnostic Monitor Feature.
Transmitter:
|
Parameter: |
Min. |
Typ. |
Max. |
Unit |
|
Signaling rate, each lane |
|
25.78125 |
|
Gbps |
|
Lane wavelength（range） |
1294.53 |
1295.56 |
1296.59 |
nm |
|
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
1308.09 |
1309.14 |
1310.19 |
nm |
|
|
Total launch power |
|
|
10.5 |
dBm |
|
Average launch power, each lane |
-4.3 |
|
4.5 |
dBm |
|
Average launch power of OFF transmitter, each lane |
|
|
-30 |
dBm |
Receiver:
|
Parameter: |
Min. |
Typ. |
Max. |
Unit |
|
Average receive power, each lane |
-10.6 |
|
4,5 |
dBm |
|
Receive power, each lane (OMA) |
|
|
4,5 |
dBm |
|
Receiver Sensitivity (OMA), each lane |
|
|
-8.6 |
dBm |
