Fiber optic cable for indoor or outdoor installation onto grids or into ducts by pulling

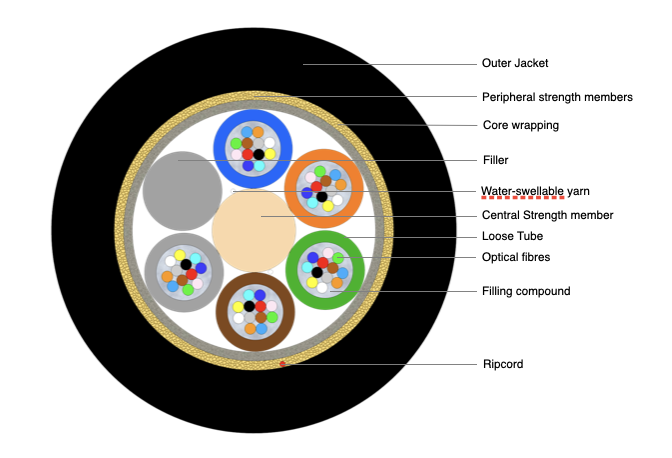

Universal Multi-Tube Cable 60F (NC) with Kevlar
| Fiber count | 60 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM3, OM4, OM5 |
| Fiber colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube colour | Blue, Orange, Green, Brown, Grey |
| Filling compound | Low-viscosity filling gel |
| Strength member | FRP strength member |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable kevlar yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Black Thermoplastic Flame Retardant Low Smoke Halogen Free compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Jacket thickness | 1.5 mm |
| Cable outer diameter | 8.8 [mm] |
| Tube count | 5 |
| Filler count | 1 |
| Maximum tensile loading (Short Term) | 2000 [N] EN 60794-1-21-E1 |
| Maximum tensile loading (Long Term) | 700 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 2000 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 10 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (no load) | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 76 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-U-MTFDS-60(6x1.7)LTAH-xx-BK xx – fiber type (see Cable code datasheet) |
0069_OPK-U-MTFDS-60(6x1.7)LTAH
