Indoor/Outdoor fiber optic cable for installation onto grids or into ducts.

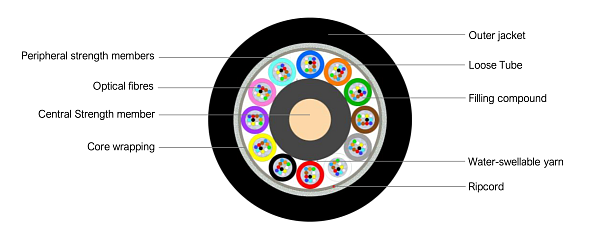

Universal Multitube Cable 144F (SC)
Indoor/Outdoor fiber optic cable with enhanced rodent protection—suitable for installation in ducts or on cable grids.
| Fiber count | 144 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |

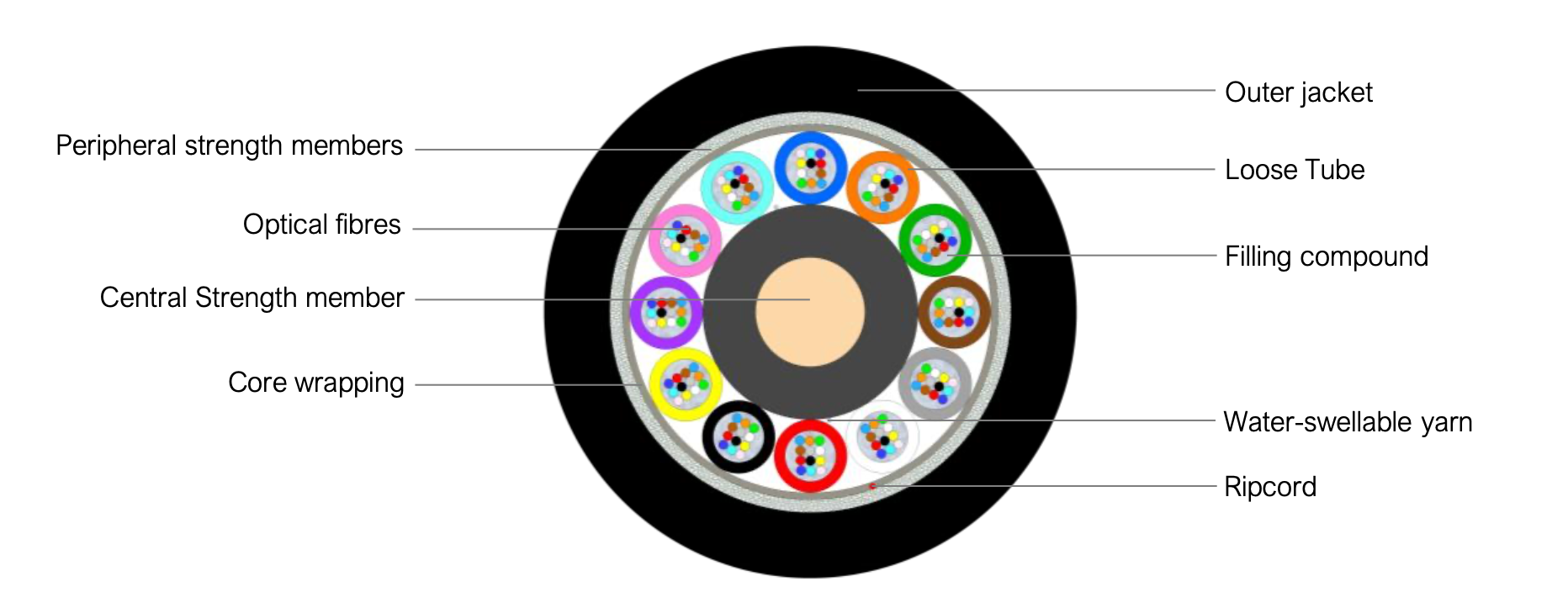

| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube filling compound | Low-viscosity filling gel |
| Central strength member | Coated FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Jacket thickness | 1.5 mm |
| Nominal outer diameter | 14.0 mm |
| Cable Weight (calc.) | 182 kg/km |
| Max. Tensile Loading (Short Term) | 5500 N |
| Max. Tensile Loading (Long Term) | 1700 N |
| Max. compressive loading | 2000 N/100 mm |
| Max. Impact loading | 20 Nm |
| Min. bend radius not load | 15 x OD |
| Min. bend radius load | 20 x OD |
| Operating temperature range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| Installation temperature range | -15°C to +50°C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Fca |
| Cable Code (Ordering Code) | OPK-U-MTFDS-144(12x2.0)LTGH-xx-BK xx – fiber type (see Cable code datasheet) |
0115_OPK-U-MTFDS-144(12x2.0)LTGH
