Universal cable for horizontal and vertical installation in buildings and for outdoor applications in FTTx networks
Round Drop Cable

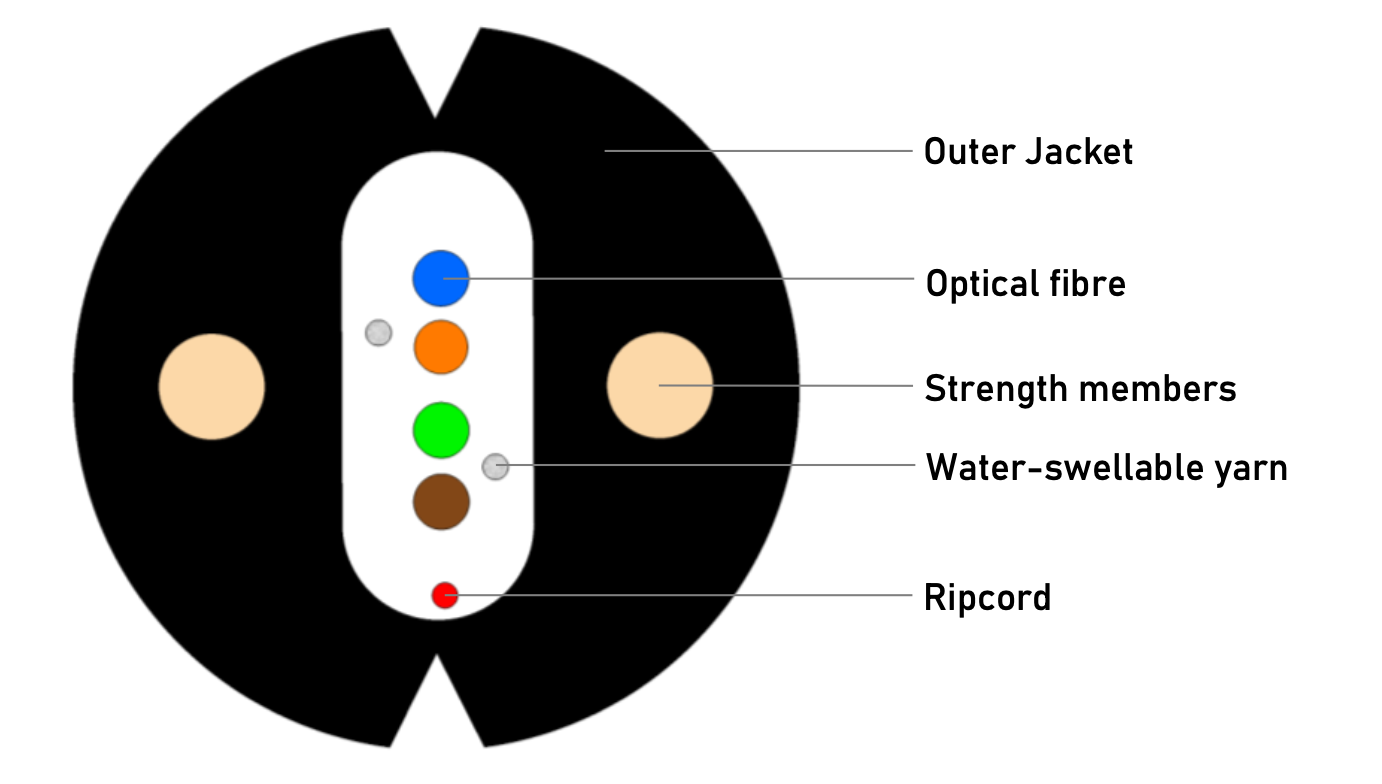

| Fibre count | 4 |
| Fiber Type | G.657.A1, G.657.A2 |
| Fiber colour | Blue, Orange, Green, Brown |
| Filler | Halogen-free flame-retardant thermoplastic compound |
| Water protection | Water-swellable yarn |
| Strength members | FRP Rods |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Nominal outer diameter | 3.4±0.2 [mm] |
| Max. Tensile Loading (Short Term) | 80 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 30 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 500 [N/100mm] EN 60794-1-21-E3 |
| Max. Impact loading | 1 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius (load) | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +60 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight | 11 [kg/km] |
| Class of fire reaction | Eca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-U-DRPS-4(4x0,25)FFTH-xx-yy xx – fiber type, yy – cable jacket colour |
0232_OPK-U-DRPS-4(4x0.25)FFTH
