The cable is suitable for indoor or outdoor use. Cable is possible installing as connection between building or distribution boxes in ducts or as riser cable in places where is required functionality in the fire
Fire Resistant Distribution cable

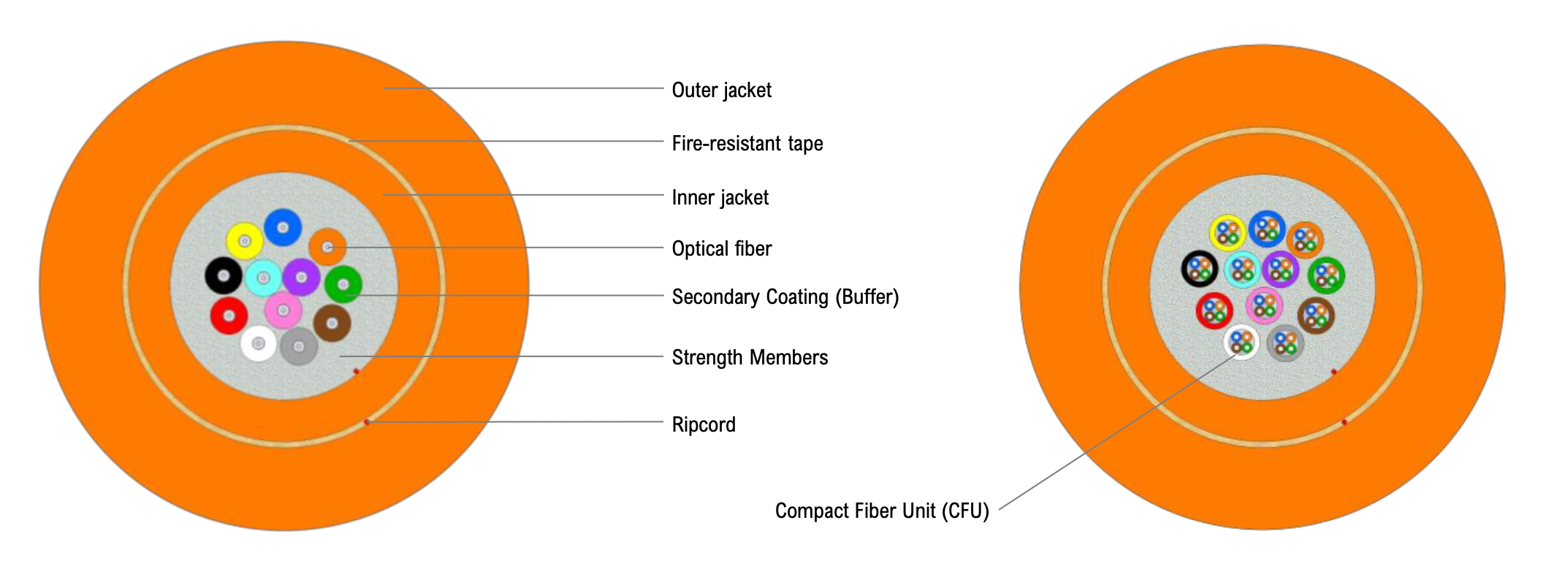

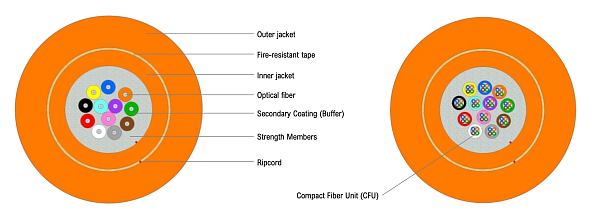

Versatile indoor/outdoor fiber cable for connections between buildings or distribution boxes in ducts or vertical pathways—designed to remain operational during a fire.
| Max. fiber count | 48 |
| Fiber type | G.657.A1, G.657.A2, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Buffer diameter | 0.9 mm |
| Buffer material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability |
| Fiber colour | Natural |
| Buffers colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| CFU diameter | 0.9 mm |
| CFU material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability |
| Fibers colour | Blue, Orange, Green, Brown |
| CFU colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Strenth members | Water-swellable Glass yarns |
| Inner jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Inner jacket thickness | 1.0 mm |
| Inner jacket colour | Identical to the outer jacket |
| Outer jacket | UV resistant Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Outer jacket thickness | 2.0 mm |
| Outer jacket colour | See Colour Codes specification |
| Maximum tensile loading | See table above EN 60794-1-21-E1 |
| Max. compressive loading | 2000 [N] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 10 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Class of fire reaction | Eca EN 13501-6 |
| Circuit Integrity | 60 min. EN 60331 |
| Circuit integrity cable systems under fire conditions | P90-R |
| Fibre count | Cable Code (Orderign Code) | Construction | Cable oute diameter | Maximum tensile loading | Cable Weight (calc.) |
| 4 | OPK-U-DSTF-4(4x0,9)A9GHMH-xx-yy | 4x0.9 (Buffer) | 10.0 mm | 1000 N | 125 kg/km |
| 6 | OPK-U-DSTF-6(6x0,9)A9GHMH-xx-yy | 6x0.9 (Buffer) | 10.0 mm | 1000 N | 126 kg/km |
| 8 | OPK-U-DSTF-8(8x0,9)A9GHMH-xx-yy | 8x0.9 (Buffer) | 11.0 mm | 1300 N | 127 kg/km |
| 12 | OPK-U-DSTF-12(12x0,9)A9GHMH-xx-yy | 12x0.9 (Buffer) | 11.8 mm | 2000 N | 146 kg/km |
| 16 | OPK-U-DSTF-16(16x0,9)A9GHMH-xx-yy | 4x0.9 (CFU) | 10.0 mm | 1000 N | 126 kg/km |
| 24 | OPK-U-DSTF-24(24x0,9)A9GHMH-xx-yy | 6x0.9 (CFU) | 10.0 mm | 1000 N | 128 kg/km |
| 48 | OPK-U-DSTF-48(48x0,9)A9GHMH-xx-yy | 12x0.9 (CFU) | 11.8 mm | 2000 N | 149 kg/km |
xx– fiber type yy– jacket color
0209_Fire-resistant_Distribution_Cable
