Indoor Distribution Cable for Data Center Cable Systems
OPK-I-BRFC007-96(6x2.0)FFAHMAGH
A compact indoor distribution cable designed for modern data center pathways, ensuring clean routing, easy deployment, and dependable uptime across critical links.

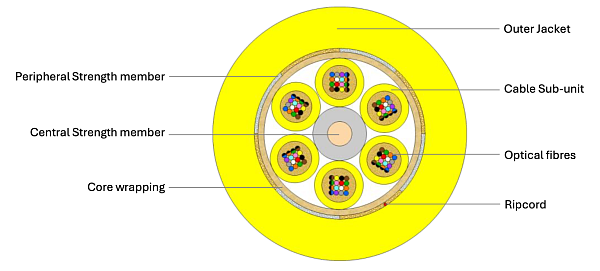

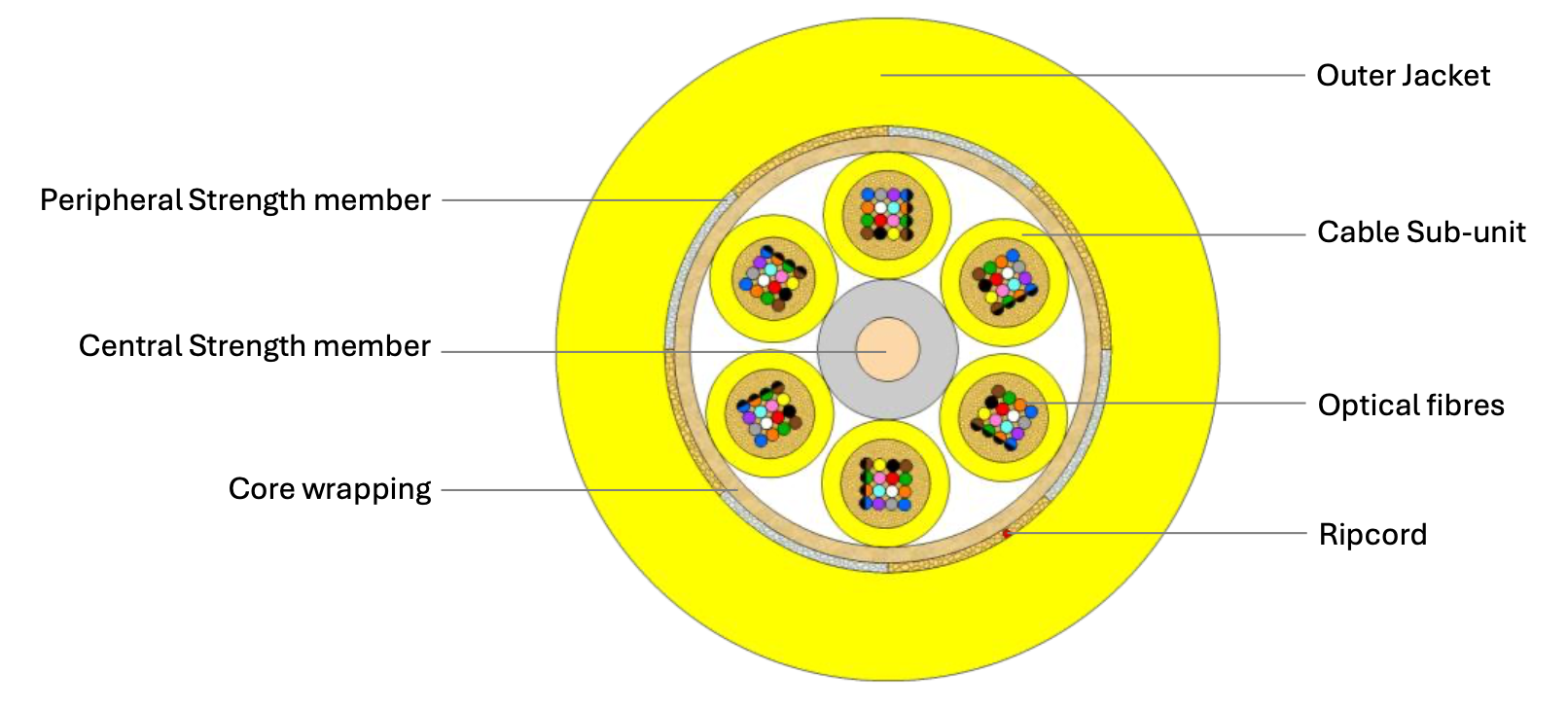

| Fibre Type | G.657.A1 200 µm |
| Fibre colour 1-12 | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Fibre colour 13-16 | BlueBS, OrangeBS, GreenBS, BrownBS |
| Sub-unit strength members | Aramid yarn |
| Cable Sub-unit jacket material | Halogen-free flame-retardant thermoplastic compound |
| Cable Sub-unit diameter | 2.0 mm |
| Cable Sub-unit colour | Yellow |
| Central strength member | Coated FRP rod |
| Core wrapping | Fire-resistant tape |
| Peripheral strength members | Aramid yarn + Glass yarn |
| Ripcord | 1x under outer jacket |
| Outer jacket material | Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.7 mm |
| Number of fibres | 96 | |||||||
| Number of fibres in tube | 16 | |||||||
| Nominal outer diameter (mm) | 10.4 | |||||||
| Calc. cable weight (kg/km) | 109 | |||||||
| Short-term Tensile strength (N) | 1300 | IEC 60794-1-101 | ||||||
| Long-term Tensile strength (N) | 350 | IEC 60794-1-101 | ||||||
| Crush resistance (N/100 mm) | 1000 | IEC 60794-1-103 | ||||||
| Max. impact loading (Nm) | 5 | IEC 60794-1-104 | ||||||
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 | ||||||
| Min. bend radius load (OD) | 15 | IEC 60794-1-111 | ||||||
| Operating temperature range (°C) | -20 to +60 | IEC 60794-1-201 | ||||||
| Storage temperature range (°C) | -20 to +60 | IEC 60794-1-201 | ||||||
| Installation temperature range (°C) | -5 to +50 | IEC 60794-1-201 | ||||||
| Class of fire reaction | Dca-s1,d0,a1 | EN 50575, EN 13501-6 | ||||||
| Number of Fibers | Cable Code (Ordering Code) |
|---|---|
| 2 | OPK-I-BRFC007-96(6x2.0)FFAHAH-200A1-YE |
0301_OPK-I-BRFC007-96(6x2.0)FFAHMAGH
