Indoor Distribution Cable for Data Center Cable Systems
Data Center Cable 96F (8×12F)
A compact indoor distribution cable designed for modern data center pathways, ensuring clean routing, easy deployment, and dependable uptime across critical links.

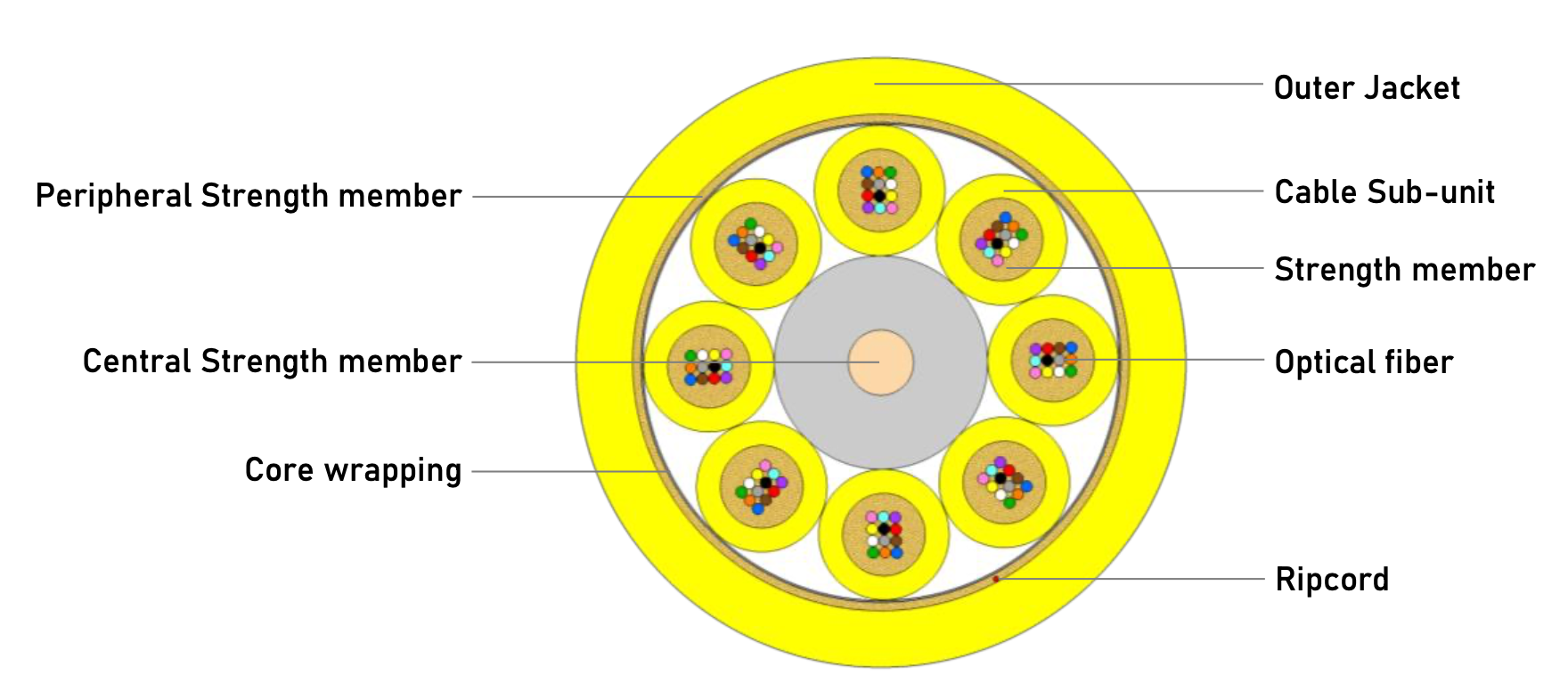

| Fiber count | 96 (12 fibers in sub-unit) |
| Fiber Type | G.657.A1, G.657.A2, OM2, OM3, OM4, OM5 |
| Fiber colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Sub-unit strength members | Aramid yarns |
| Cable Sub-unit jacket material | Halogen-free flame-retardant thermoplastic compound |
| Cable Sub-unit diameter | 3.0 mm |
| Cable Sub-unit colour | Yellow |
| Central strength member | Coated FRP rod |
| Core wrapping | Non-woven tape |
| Peripheral strength members | Aramid yarns |
| Outer jacket | Halogen-free flame-retardant thermoplastic compound |
| Outer Jacket thickness | 1.3 mm |
| Ripcord | 1x under outer jacket |
| Cable outer diameter | 13.0 [mm] |
| Max. Loading (Short Term) | 1300 [N] EN 60794-1-21-E1 |
| Max. Loading (Long Term) | 350 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 1000 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius not load | 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -5 to +50 [°C] EN 60794-1-22-F1 |
| Cable Code (Ordering Code) | OPK-I-BRCC016-96(8x3.0)FFAHAH-xx-yy |
| xx – fiber type | yy – jacket color (see Cable code datasheet) |
| Class of fire reaction | Dca-s2,d1,a1 |
| Flammability | IEC 60332-3 |
| Smoke density | IEC 61034-1, IEC 61034-2 |
| Halogen free, acid gases | IEC 60754-1, IEC 60754-2 |
0302_OPK-I-BRCC016-96(8x3,0)FFAHAH (DOS cable)
