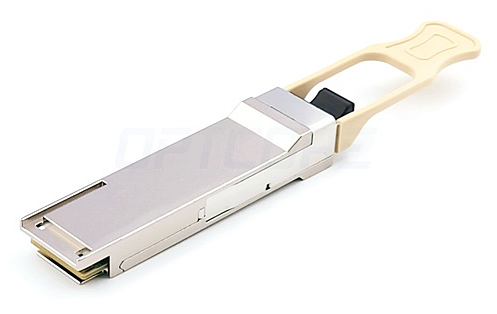

OPTOKON 100G QSFP28 PSM4 optical transceiver are designed for 2 km transmission on singlemode fibre (SMF). This QSFP28 optical module offers 4 independent transmit and receive channels, each capable of 25.78 Gbps operation for an aggregate data rate of 103.1 Gbps. The transceiver has a single 12 lane optical fiber MPO/MTP-connector interface.

Electrical connection for the 100G PSM4 module is achieved through an MSA-compliant 38-pin edge type connector and the module operates by a single +3.3V power supply.

This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface. The transceiver has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

The QSFP28 100GBASE PSM4 transceiver is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA).
