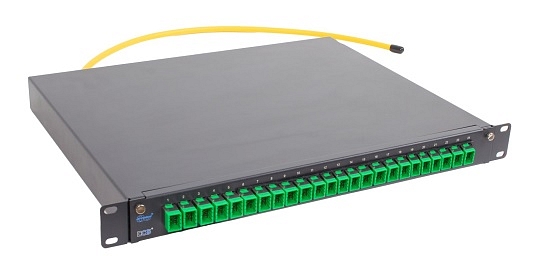

PUDOS 19” Rack mount Optical Distribution Frame for Data Centers

The PUDOS is an economical rack mountable patch panel for use with manufactured pigtails, pre terminated cables. The cables are strain-relieved at the rear of the unit.
This prevents damage to fibers prior to routing into couplings. In addition the sligh-out shelf allows full access to the internal fiber connection, easy cleaning and connection management. The modular system allows splicing and termination up to 1536 fibers
(with SN-MT connectors) in rack height 1U (PUDOS-1).

  • Features
  • Specifications
  • Application
  • Documents
  • Designed for cable or microtubes termination
  • Compact robust design

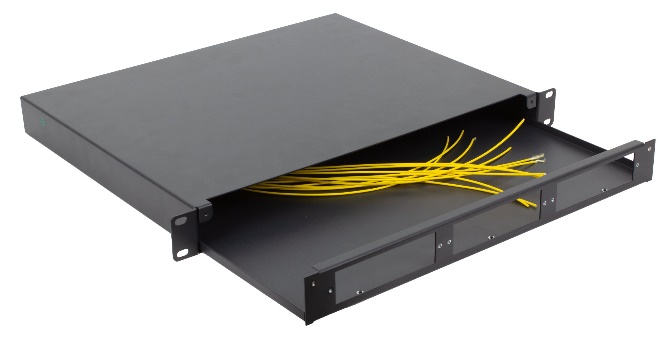

  • Slide-out shelf provides unrestricted access

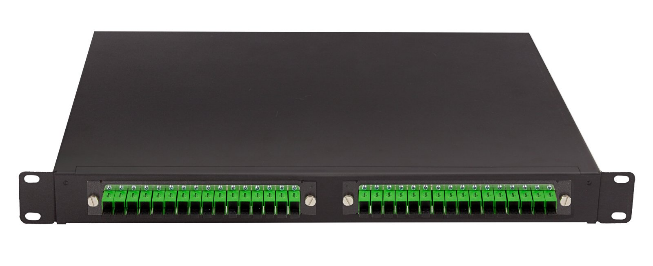

  • Changeable front panel, various adapters
  • Coupling adapters mounted on the front panel or in CNPM panels
  • Accommodates up to 1536 fibers in 1 rack unit
  • Durable powder coat finish

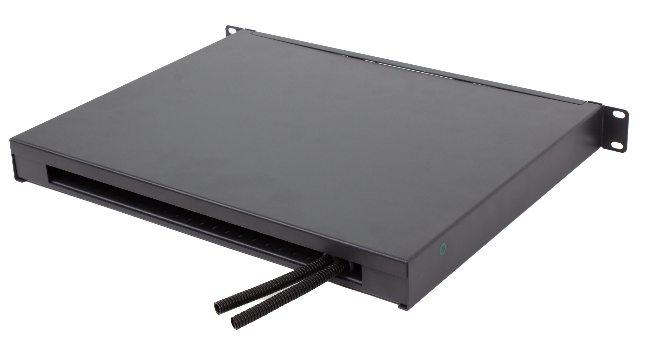

  • Cable strain-relief and grounding provisions
  • Accepts the industry's most common connector types and SN-MT connectors
  • Durable powder coat finish colour RAL 7021 Material-Aluminium-magnesium alloy - low weight and shipment costs

Technical specifications:

PART NUMBER

MAX FIBER CAPACITY

RACK UNITS

DIMENSIONS (HxWxD) mm

SHIP WGT (kg)

FT-1E-CNPM

FT-24-XX

PUDOS-11

11522

15361

1

44 x 432 x 350

1.8

1) 1U height

2) Fiber capacity depends on the type of connectors used;

    maximum connected fibers is possible with SN-MT 4CH (16F) adapters

Coupling panels FT series available for the common used connector adapter types in following configuration:

FT-24-XX           24 holes for SN-MT, MTP/MPO, SC, ... adapters

FT-1E-CNPM     3 holes for CNPM panels with SN-MT, MTP/MPO, SC, DSC, DLC, QLC, ... adapters

FT-1L-CAPL       2 holes for CAPL cassettes with 16x SC, DLC, E2 adapters

Product information and specifications:

Obsah obrázku elektronika, Počítačová komponenta Popis byl vytvořen automaticky

CNPM panel with 6x SNMT12 adapters



Front panels:

FT-1E-CNPM

3 holes for CNPM panels

FT-1L-CAPL

2 holes for CAPL cassettes

PUDOS-1E-864-SNMT12 M

FT-24-SNMT16

24 holes for SN-MT 4 channels



FT-24-MTP

24 holes for MTP adaptors



  • 19” 1U Rack-mount
  • Data centers
  • FTTH networks
