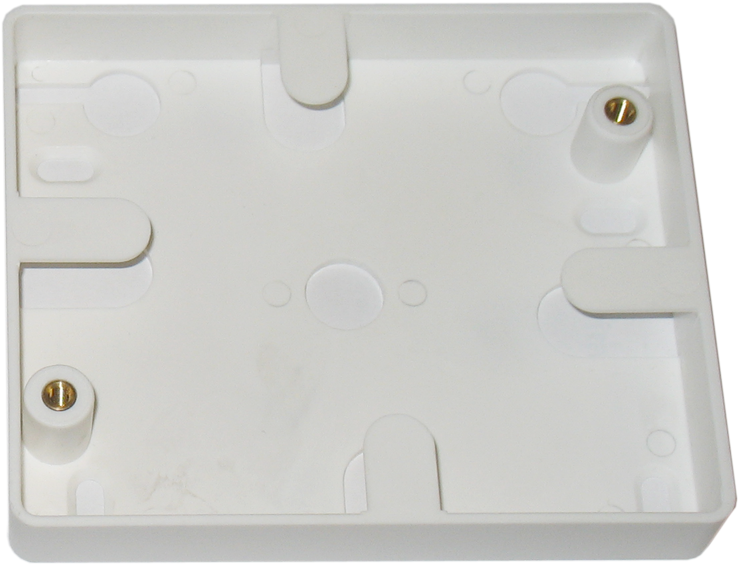

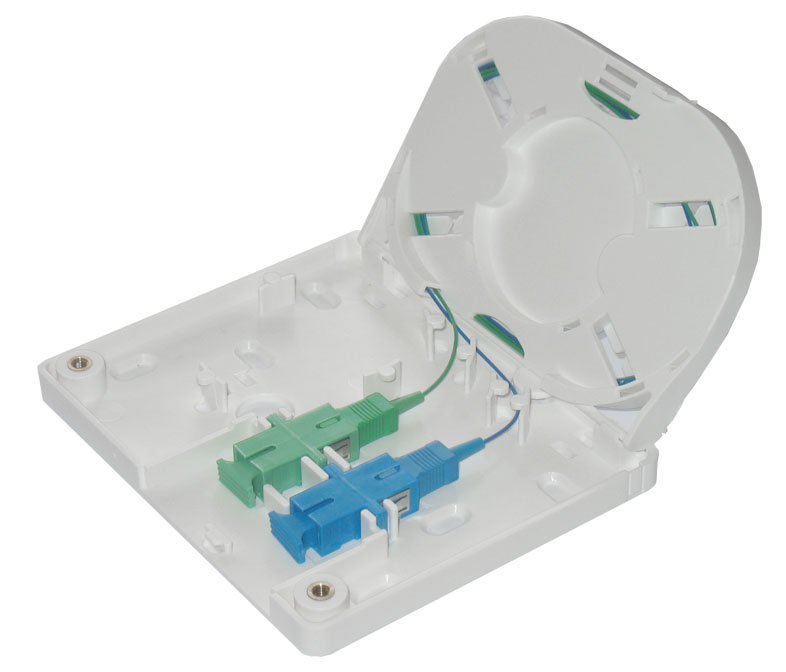

The OPTOKON MCPE-02 box introduces the wall mount, two fibers box, which is designed for optical cable termination in the customer premises – end user site in FTTH projects. The MCPE-02 box includes the holder for two splice protection sleeves. The internal fiber guides ensure the arrangement of the fiber reserve and its protection against smaller bending radius than allowed.
The MCPE-02 allows installation of two SC single coupling adapters.
Technical specifications:
|
Material |
ABS |
|
|
Colour |
Grey ( RAL 7035) or White (RAL 9010) |
|
|
Operating temperature |
-40˚C to +75˚C (acc. EN 60068-2-1 and EN 60068-2-1) |
|
|
Flammability |
UL94 HB |
|
|
IP Protection class |
IP42 (according IEC 60529) |
|
|
Dimensions |
120 x 100 x 26.5 mm (LxWxH) |
|
|
Weight |
95 g (without adapters and pigtails) |
