SFP Transceivers GE-100, 1310nm
docx_583037fb53aa210d6435f0af6865ff15

SFP Transceivers GE-100, 1310nm

OPTOKON’s S125-GE-100FX and S125-GE-100LX transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and are designed for SGMII MAC interface to 100BASE-FX and 100BASE-LX  (The SGMII MAC Interface implements a modified 1000BASE-X Auto-Negotiation to indicate link, duplex and peed to the MAC).

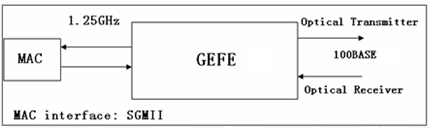

The transceivers consist of four sections: the standard SFP part with DDM, the PHY part build with SGMII interface, the 1310nm FP laser and the PIN photo-detector.

  • Features
  • Specifications
  • Application
  • Documents
  • Hot-Pluggable
  • 100BASE-LX operation
  • 1310nm FP laser transmitter
  • 100BASE-FX and 100BASE-FX operation
  • Duplex LC connector
  • Electrically hot-pluggable
  • Support Digital Diagnostic Monitoring interface
  • Operating case temperature: 0°C to +70°C

Parameters:

Name

Data Rate (Mbps)

Wavelength (nm)

Distance (km)

Media

M125-GE-100FX-F31-LRM

125

1310

2

MMF

S125-GE-100LX-F31-LX

125

1310

20

SMF

Optical characteristic:



Unit

M125-GE-100FX

S125-GE-100LX

Wavelength (Min/Center/Max)

nm

1270 / 1310 / 1360

Average output power (Min/Max)

dBm

-20 / -14

-15 / -7

Transmitter OFF Uotput Power

dBm

-45

-45

Output Eye Mask



Compliant with G.957(class 1 laser safety)

Optical Extinction ratio

dB

8.2

8.2

Receiver sensitivity

dBm

-30

-31

Input Saturation Power (Overload)

dBm

-3

-3

Transmission distance

km

2

20

Fiber type

-

MMF

SMF

Data rate

Mbps

125

125

Optical link budget

dBm

10

16

Mechanical specifications (mm):

•    Switch to switch interface
•    Switched backplane applications
•    Fast Ethernet
•    Others optical transmission systems
