The 1.25 Gbps series are hot pluggable Small-Form-Factor (SFP) duplex, bidirectional and CWDM transceiver modules expressly designed for high speed communication applications that requiring rates of up to 1.25 Gbps. The transceivers are manufactured with LC receptacle that is compatible with the industry LC connector standard. All SFP transceivers have the digital diagnostic monitor feature.

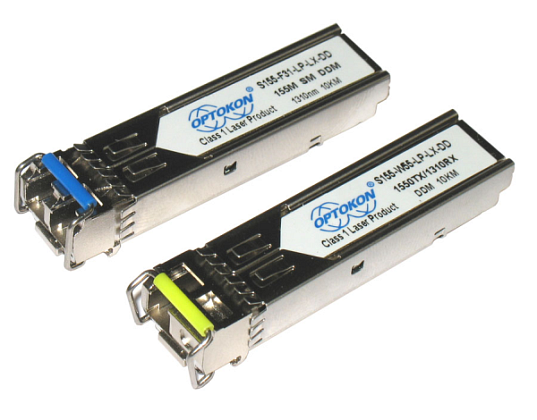

SFP Transceivers - 1.25 Gbps
- Hot pluggable Small-Form-Factor (SFP) duplex
- Bidirectional and CWDM transceiver modules
- Rates of up to 1.25 Gbps
- Digital diagnostic monitor feature
|
|
Unit |
SX |
LRM |
LX10 |
LX |
HX |
ZX |
UX100 |
UX |
EZX |
|
Average output power (min / max) |
dBm |
-9 / -3 |
-20 / -14 |
-9 / -3 |
-9 / -3 |
-5 / 0 |
0 / 5 |
0 / 5 |
0 / 5 |
1 / 6 |
|
Receiver sensitivity |
dBm |
-18 |
-28 |
-20 |
-20 |
-24 |
-26 |
-28 |
-31 |
-33 |
|
Overload |
dBm |
0 |
-3 |
-3 |
-3 |
-1 |
-6 |
-3 |
-6 |
-6 |
|
Maximum distance |
km |
550 |
2 |
10 |
20 |
40 |
80 |
100* |
120 |
160 |
|
Fiber type |
|
MM |
MM |
SM |
SM |
SM |
SM |
SM |
SM |
SM |
|
Optical link budget |
dB |
9 |
8 |
11 |
11 |
19 |
26 |
28 |
31 |
34 |
|
Wavelength / |
nm |
850/ |
1310/ FP |
1310/ FP |
1310/ FP |
1310/FP |
1550/ DFB |
1550/ DFB |
1550/DFB |
1550/DFB |
Table 1: Basic technical specifications according to distance
* For standard series (not Bi-Di, CWDM and DWM version)
- High speed communication applications
