CBD-100 Compact Cable Drum

OPTOKON offers the CBD-100 compact portable cable drum. The drum is ideal for use in military, industrial, broadcast and audio applications.

The drum is designed for winding up to 100 m of military tactical cable with an outer diameter of 6 mm. The standard application includes tactical 4 fibers military cable terminated with a HMA-J connector on one side.

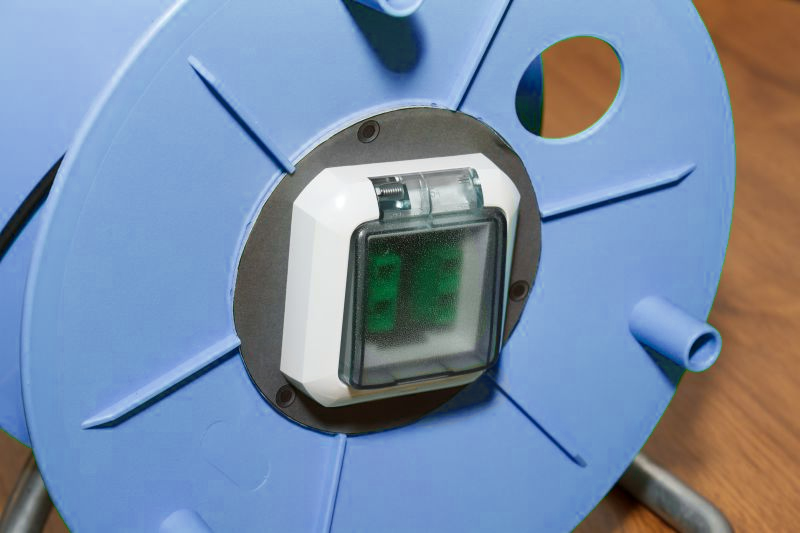

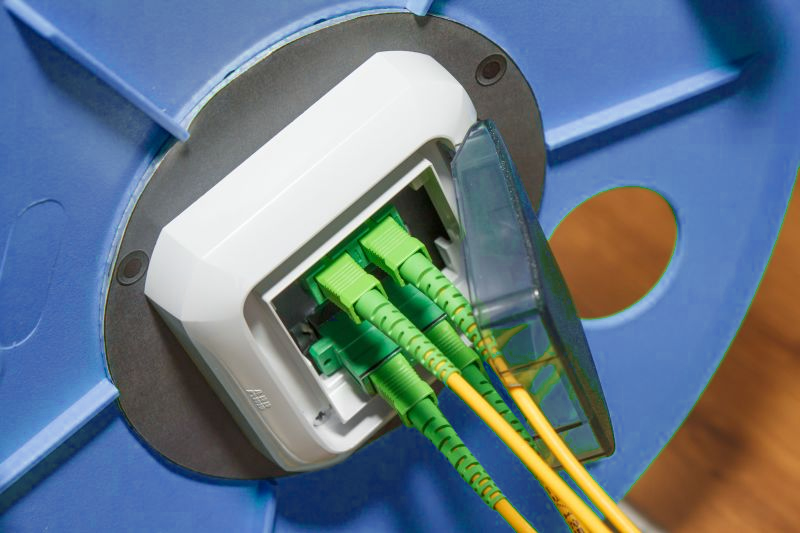

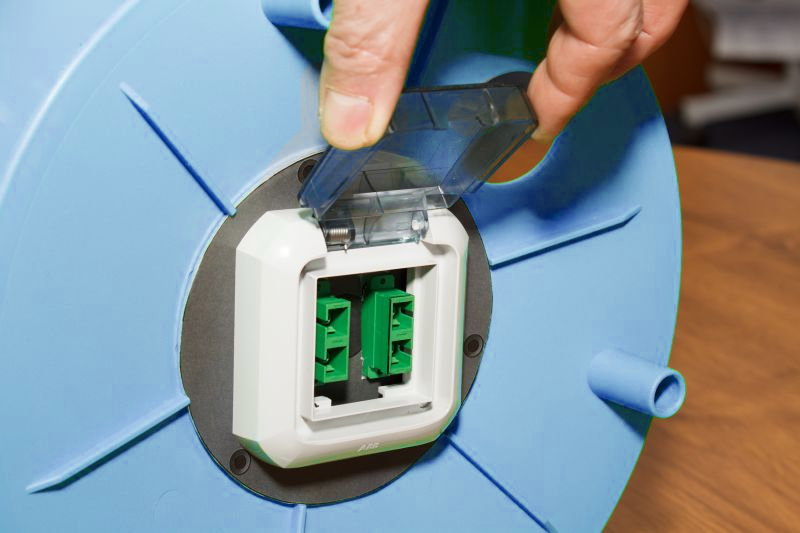

The internal end of the cable is terminated with 4 x SC/APC connectors connected with adapters. Two duplex SC adapters are installed in a protected box on the drum body and can be accessed after opening the cover. Once closed, there is IP 54 environmental protection that enables storage and handling of the drum in outdoor conditions.

  • Features
  • Specifications
  • Application
  • Small, lightweight and durable design
  • Quick and easy use,
  • HMA-J to 4x SC/APC four fibers cable
  • 2 x duplex SC adapters fixed to the drum body
  • Up to 100 m of cable, diameter 6 mm

For more detailed information contact our sales department SALES@OPTOKON.COM

Dimensions:                         drum Ø 275 mm, 370 x 280 x 210 mm (H x W x D)

Weight (without cable):          1 kg

Cable length:                        up to 100 m

Protection:                           IP 54

Tensile strength                    80 N (fixing cable to the drum)

Application notes:

HMA-BNB/LD4 S7A-P-LL

CBD-100-HMA-J-4xNSC/LD4 S7A-JC-LL

Diagram – complete optical line connection, two HMA-J connectors, position of fiber at SC adapters

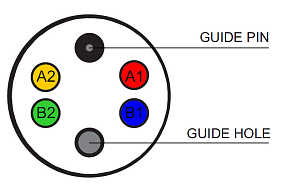

Fiber color assignment is the same for all HMA-J2:

A1 red, B1 blue, A2 yelow, B2 green

Connection of two HMA-J connectors:

A1 to B1

A2 to B2

B1 to A1

B2 to A2

NOTE:

2) Fibers are crossed during connection of two connectors


Optical patchcord connection:
