The MU high density fiber optic interconnection system offers a new solution for high performance telecommunications networking. The MU connector is at least half the size of the standard SC connector. It can offer twice the port density, but all the optical performance of traditional fiber optic connectors. The MU system includes a complete range of multimode and singlemode.

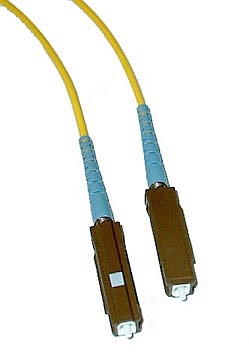

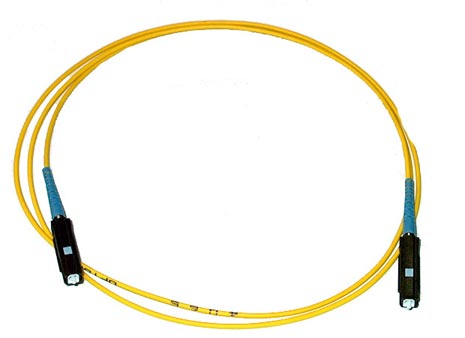

MU patchcord
- Standard IEC 61754-6 Amendment 2
- Full-ceramic 1.25 mm ferrule
- Excellent handling at high packing densities
- Special ferrule preform for short polishing time
- Adjustable
| Insertion loss (IL)(IEC 61300-3-4) | MM | SM Ultra PC | SM Angle PC | SM APC Premium |
| 0.15 dB typ | 0.15/0.25 dB typ/max | 0.15/0.50 dB typ/max | 0.1 dB max | |
| Return loss (RL)(IEC 61300-3-6) | >30 dB | >50 dB | >60 dB | >85 dB1 |
| Operating temperature | -40 °C to +85 °C2 | |||
| Durability | min. 1 000 cycles | |||
| Assembly procedure | glue and polish | |||
| Connection | physical contact | |||
| Lock mechanism | snap-on | |||
| Ferrule material | full ceramic zirconia | |||
| Connector material | UL 94-V0 | |||
| Adapter material | UL 94-V0, slotted ceramic sleeve |
Note: 1) RL >85 dB measured with low coherence reflectometry (IEC 61300-3-6 method 3 OLCR)
- Telecom
- Optical transmission and switching systems
- Backboard, printed circuit board adapters
- CATV
- Measuring Technique
CON_05-01_EN-MU_Patchcord
