Cable for external installation by air-blowing technique

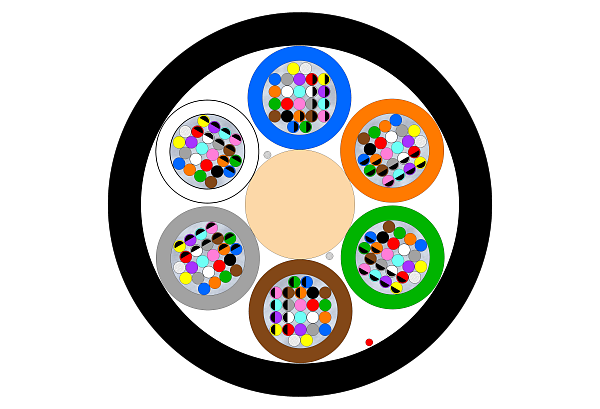

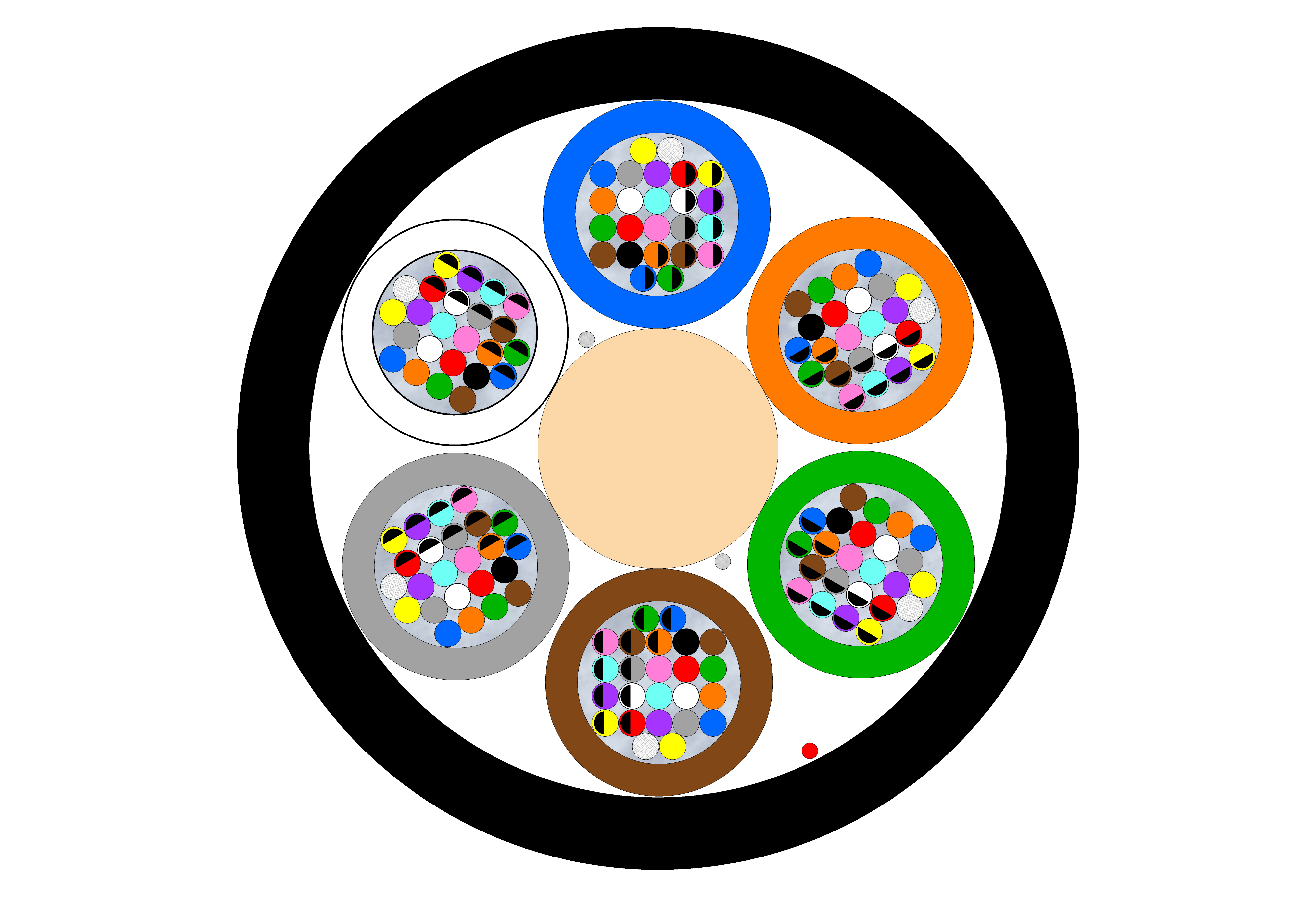

Outdoor Multitube Micro Cable 144F (NC)
Cable for outdoor installation using the air-blowing technique—fast, clean deployment in field routes.
| Fiber count | 144 |
| Fiber Type | G.657.A1 200 µm |
| Fiber color | 1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| 13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS | (BS = Black strip) |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White |
| Tube filling compound | Thixotropic Jelly Compound |
| Central strength member | FRP rod |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 0.4 mm |
| Cable outer diameter | 5.8 [mm] |
| Tube count | 6 |
| Filler count | 0 |
| Max. Loading (Short Term) | 900 [N] EN 60794-1-21-E1 |
| Max. Loading (Long Term) | 220 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 500 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 2 [Nm] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 31 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-O-MTFDM-144(6x1.7)LTP-200A1-BK |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m, 4200 m, 6300 m, 8400 m ±5% on plywood reel or solid wooden non-returnable drum |
