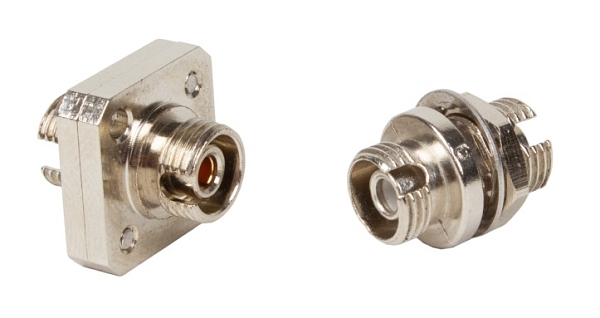

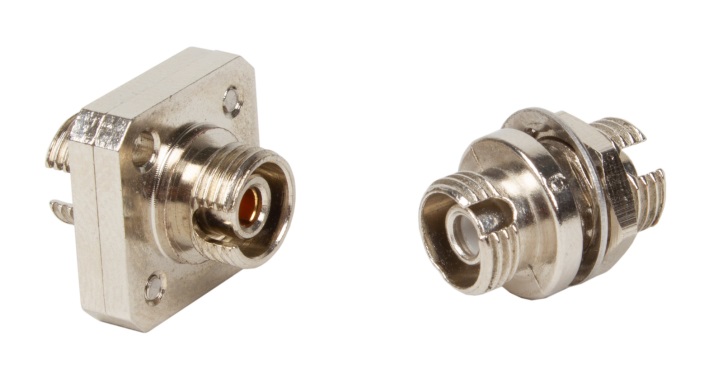

FC adapters

FC adapters

The FC adapters are designed and manufactured according JIS, IEC, EIA/TIA and ANSI specifications for intermateability and optical performance. The FC adapters are offered in MM or SM performances, for connectors with PC and APC polishing method. It is possible to exactly specify your demands concerning keying slot width (standard Seiko Instruments or Seikoh Giken) for APC adapters, type of sleeve (phosphor bronze or zirconia) and adapter performance: various shape of flange, D-hole, DD-hole, etc.



  • Features
  • Specifications
  • Application
  • Documents
  • Precision sleeve
  • Screw-type locking
  • Excellent detachability
  • Low insertion loss
  • Material metal
  • High life time – more than 1000 mating cycles

Dimensions:

A-FC/(A) PC-XX-XXX-02 A-FC/(A)PC-XX-XXX-07
A-FC/(A)PC-XX-XXX-08 A-FC/(A)PC-XX-XXX-13
A-FC/(A)PC-XX-XXX-12 Recommended panel cut out
  • PC standard- keying slot width 240: ≥ 2.15 mm
  • APC standard: "wide key", "NTT" or "type N"- keying slot width 215: 2.15-2.20 mm
  • "reduced" or "type R"- keying slot width 205: 2.03-2.08 mm
