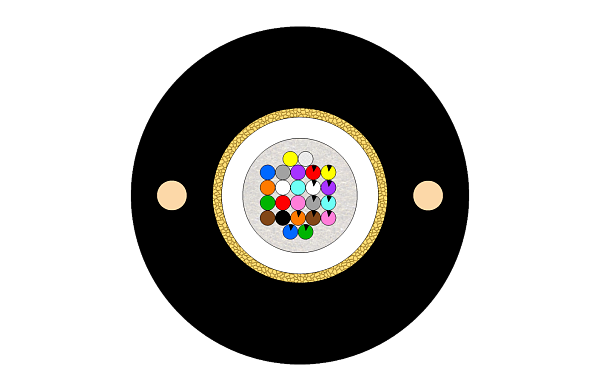

Outdoor Duct Unitube Cable 400 N

ISO Certified

EN ISO 9001:2015
EN ISO 14001:2015
ČOS 051672 (AQAP 2110) Certified

Calibration Laboratory

Accredited Calibration Laboratory No. 2315
In Czech Republic & Malaysia

Testing Laboratory

Accredited Testing Laboratory No. 1755

NATO Supplier

OPTOKON NATO
Supplier Code: 1583G

National Security Certified

National Security Authority Certified: CONFIDENTAL

Member Of Cenelec

Member of CENELEC European Comittee for Electrotechnical Standardization

AOBP

Member of Defence and Security Industry Association

Chamber of Commerce

Member of the Czech Chamber of Commerce

STI Industry Partner

OPTOKON is a CISCO Solution Technology Integrator

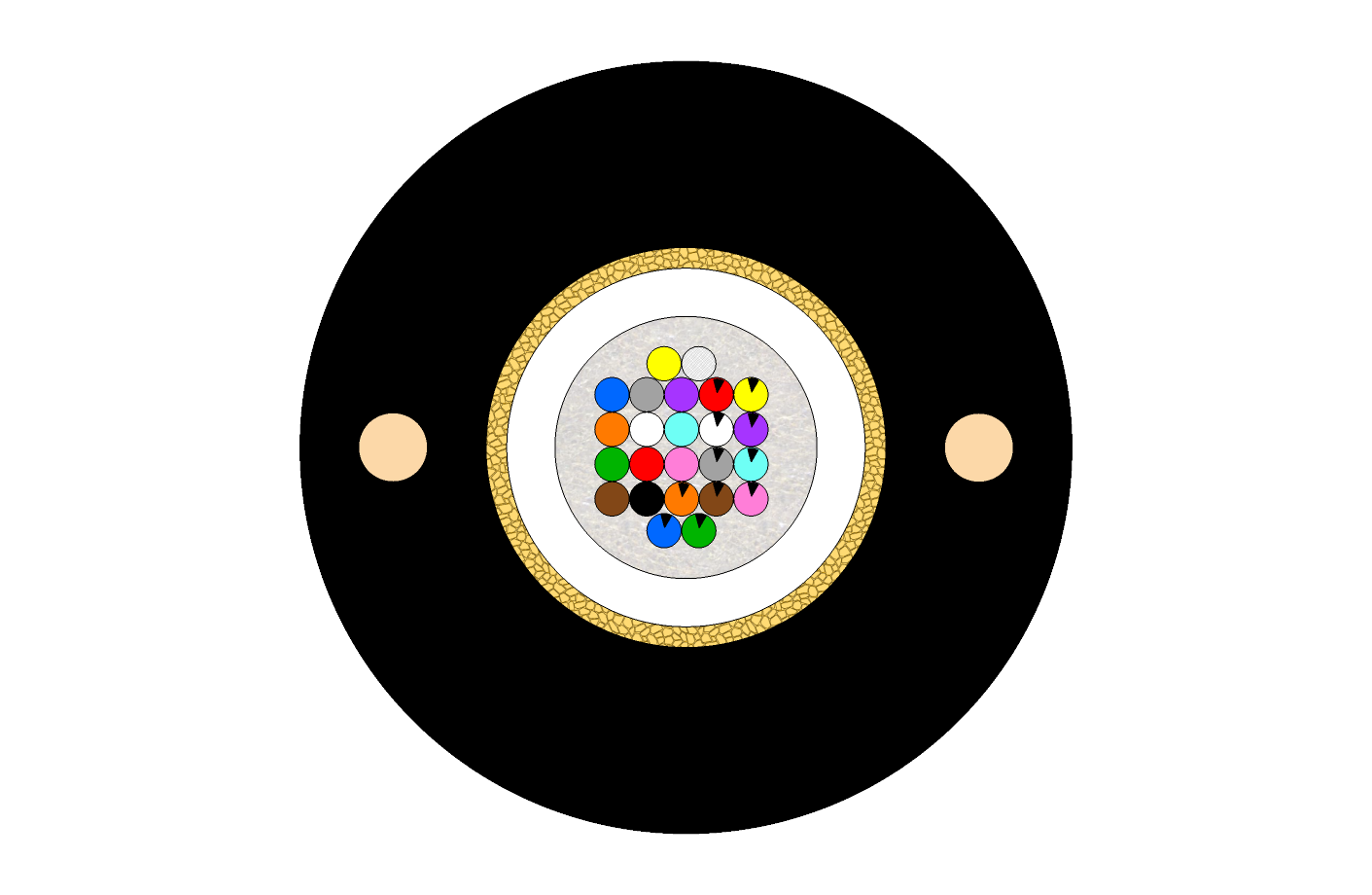

Fibre count	Up to 24
Fibre Type	G.652.D, G.657.A1, G.657.A2
Fibre colour 1-12	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fibre colour 13-24	Blue^BS, Orange^BS, Green^BS, Brown^BS, Grey^BS, White^BS, Red^BS, Natural, Yellow^BS, Violet^BS, Pink^BS, Aqua^BS
Tube colour	Natural / White
Peripheral strength members	Water-swellable Aramid yarn
Outer jacket	UV resistant black HDPE
Nominal outer diameter 2-12F	5.1 mm
Nominal outer diameter 16-24F	5.6 mm
Cable Weight (calc.) 2-12F	20.5 kg/km
Cable Weight (calc.) 16-24F	25 kg/km
(^BS Black strip)

Max. Tensile Loading (Short Term)	400 N
Max. Tensile Loading (Long Term)	130 N
Max. compressive loading	1000 N/100 mm
Max. Impact loading	10 Nm
Min. bend radius not load	15 x OD
Min. bend radius load	30 x OD
Operating temperature range	-20°C to +70°C
Storage temperature range	-40°C to +70°C
Installation temperature range	-15°C to +50°C
Water tightness	No water detected on free end
Class of fire reaction	Fca
