Durable full dielectric cable with enhanced mechanical resistance for external installations

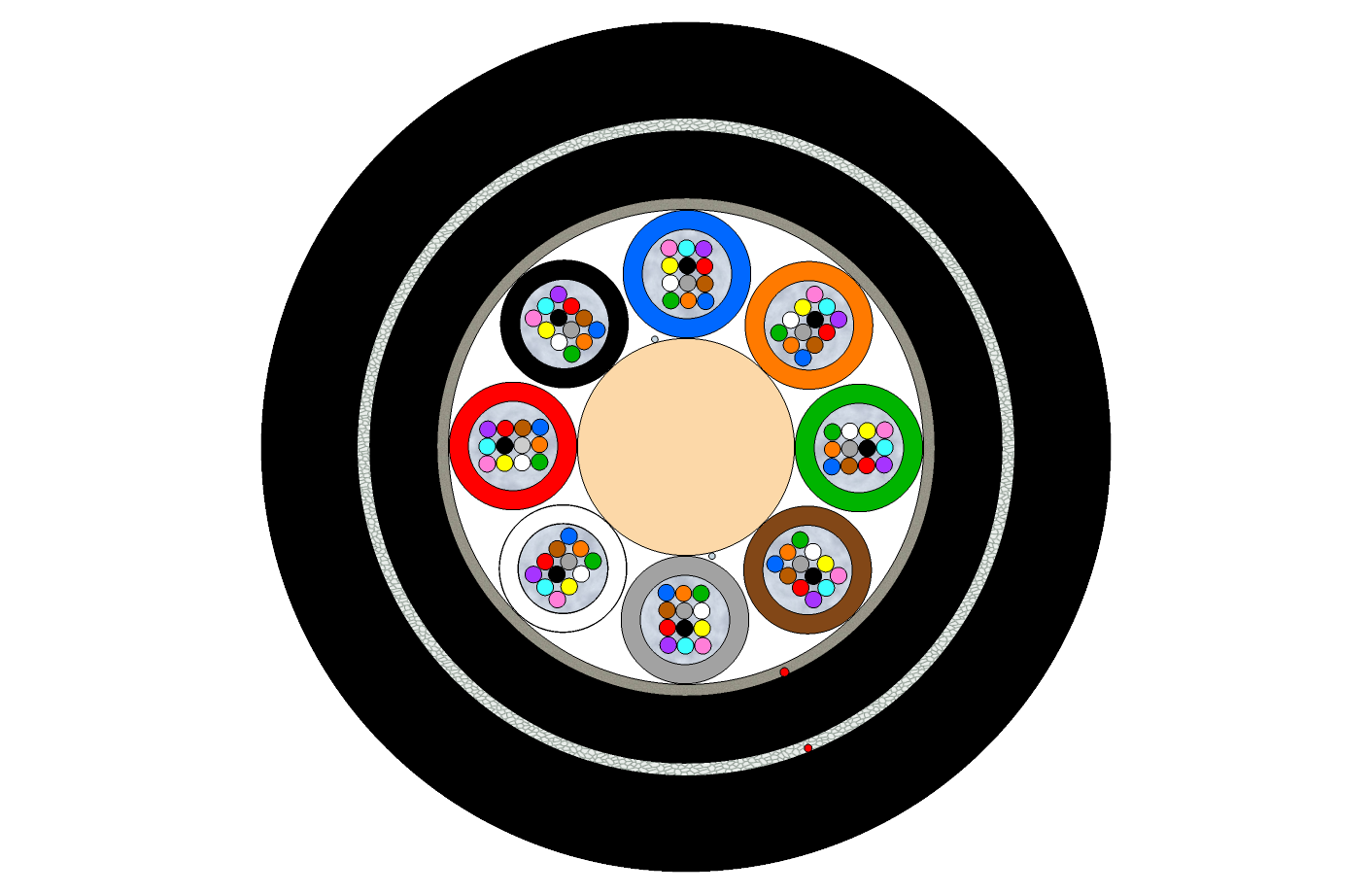

Outdoor Multitube Cable-Double Jacket 96F (SC)
| Fiber count | 96 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, OM2, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube color | Blue, Orange, Green, Brown, Grey, White, Red, Black |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Inner jacket | UV resistant black PE |
| Peripheral strength members | Water-swellable glass yarns |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 1.5 mm |
| Ripcord | 1x under inner and outer jacket |
| Nominal outer diameter | 13.3 mm |
| Cable Weight (calc.) | 150 kg/km |
| Max. Tensile Loading (Short Term) | 6500 N |
| Max. Tensile Loading (Long Term) | 2100 N |
| Max. compressive loading | 3000 N / 100 mm |
| Max. Impact loading | 20 Nm |
| Min. bend radius not load | 15 x OD |
| Min. bend radius load | 20 x OD |
| Operating temperature range | -40°C to +70°C |
| Storage temperature range | -40°C to +70°C |
| Installation temperature range | -15°C to +50°C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Fca |
| Cable Code (Ordering Code) | OPK-O-MTFDS-96(8x2.0)LTPGP-xx-BK xx – fiber type (see Cable code datasheet) |
| Print legend | Manufacturer-Cable type-lot number-length marking per 1 m (customer print legend available on request) |
| Delivery length | 2100 m ±5% on plywood reel |
0108_Outdoor Multitube Cable-Double Jacket 96F(SC).pdf
