Durable outdoor fiber optic cable with a higher level of protection against rodents for installing into ducts or on grids
Outdoor glass yarn armoured Multitube Cable
| Fiber count | 12 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |

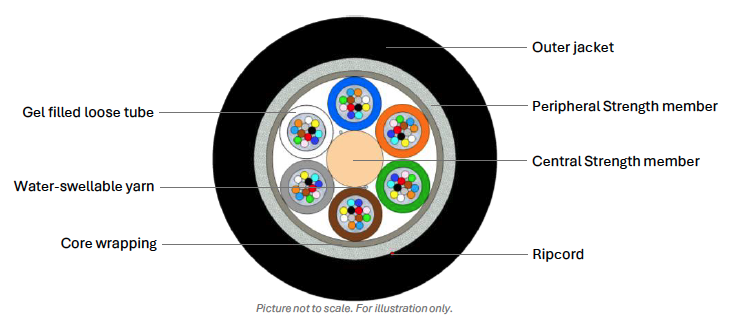

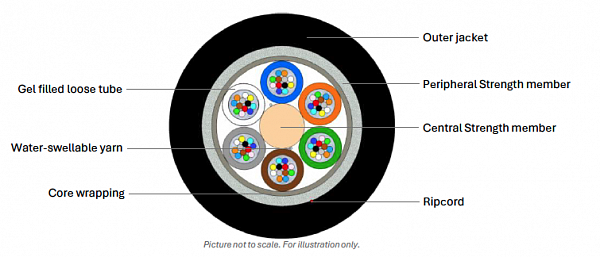

| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue |
| Tube filling compound | Low-viscosity filling gel |
| Central strength member | FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Double layer of Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Jacket thickness | 1.3 mm |
| Cable outer diameter | 9.0 [mm] |
| Tube count | 1 |
| Filler count | 5 |
| Maximum tensile loading (Short Term) | 3300 [N] EN 60794-1-21-E1 |
| Maximum tensile loading (Long Term) | 1300 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 2500 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 15 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (no load) | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 62 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
0157_OPK-O-MTFDR-144(12x1.7)LTGGP
