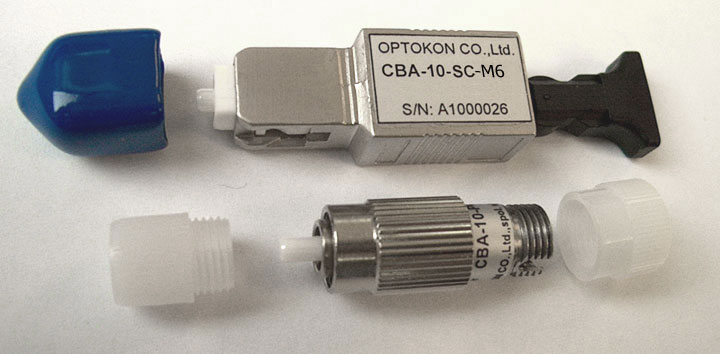

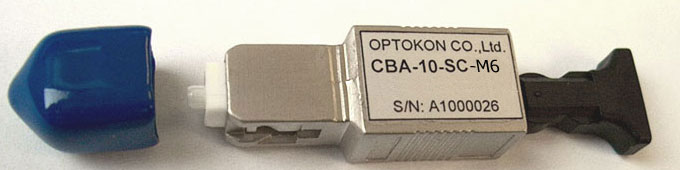

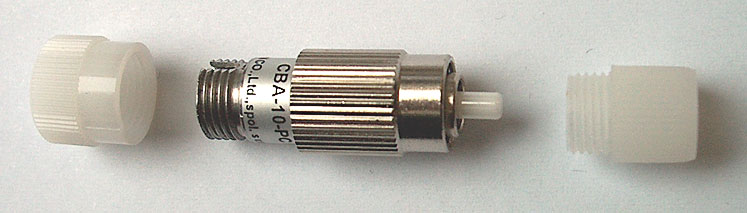

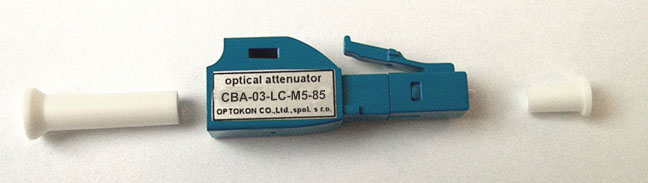

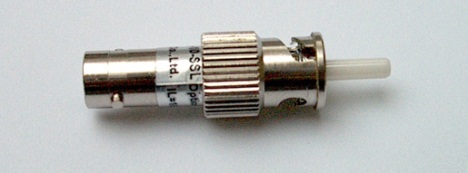

The plug-type CBA series multimode attenuators are used directly on the ends of fiber optic jumpers prior to installation in adapters. These attenuators provide a fixed level of attenuation at defined wavelength. The CBA series multimode attenuators are available for SC, FC, LC and ST connector types. Operational wavelength is 850 nm or 1300 nm.
Plug-Type (Male/Female) Attenuators CBA series – Multimode
- Precise attenuation
- Multimode applications
- Operational wavelength 850 nm or 1300 nm
- Attenuation range 2 – 12 dB
- Easy installation
- High power endurance
|
Parameter |
|
|
Attenuation range |
2 – 12 dB |
|
Operational wavelength |
850 or 1300 nm (±20 nm) |
|
Attenuation accuracy attenuation range 2 to 7 dB attenuation range 6 to 10 dB |
±1.0 dB ±1.5 dB |
|
Return loss |
> 25 dB |
|
Power durability |
200 mW |
|
Operating temperature |
-40 to 75 °C |
|
Storage temperature |
-40 to 85 °C |
|
Humidity |
95 %RH |
- Fiber optic systems
- Receiver padding for optical receiver protection
- Optical power equalization
- Linearity and dynamic range testing in laboratory equipment
- Optical margin testing
- BER testing
