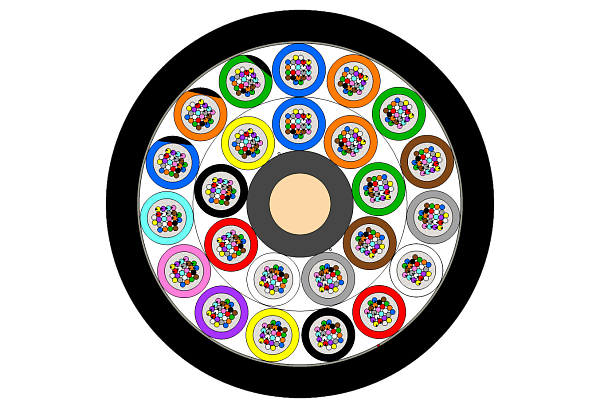

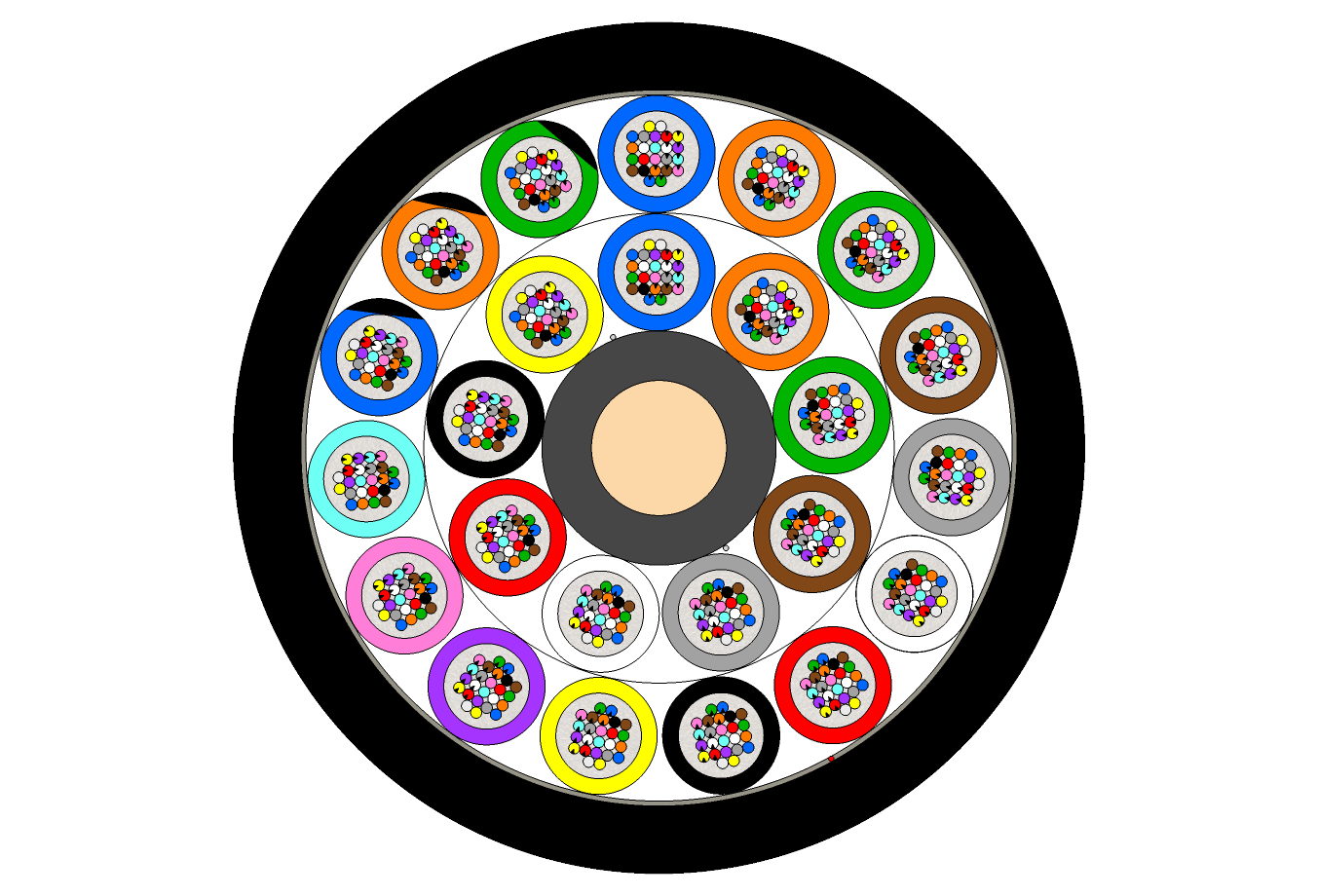

Outdoor Multitube Cable 576F (ZC)

Full dielectric cable for external installation on cable trays or into duct

Fiber count	576 (24x24)
Fiber Type	G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM2+, OM3, OM4, OM5
Fiber color 1-12	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fiber color 13-24	Blue^BS, Orange^BS, Green^BS, Brown^BS, Grey^BS, White^BS, Red^BS, Natural, Yellow^BS, Violet^BS, Pink^BS, Aqua^BS
	(^BS Black strip)
Tube	Gel-Filled PBT buffer tube
Tube color – inner layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow,
Tube color – outer layer	Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua, Blue^BS, Orange^BS, Green^BS
	(^BS Black strip)
Tube filling compound	Low-viscosity filling gel
Central strength member	PE coated FRP rod
Core wrapping	Water-swellable tape
Ripcord	1x under outer jacket
Outer jacket	UV resistant black MDPE
Jacket thickness	1.5 mm

Cable outer diameter	18.9 [mm]
Tube count	24 (9+15)
Filler count	0
Max. Tensile Loading (Short Term)	2500 [N] EN 60794-1-21-E1
Max. Tensile Loading (Long Term)	1050 [N] EN 60794-1-21-E1
Max. compressive loading	1000 [N/10cm] EN 60794-1-21-E3
Max. Impact loading	5 [Nm] EN 60794-1-21-E4
Min. bend radius (no load)	15 [OD] EN 60794-1-21-E11
Min. bend radius (maximum load)	20 [OD] EN 60794-1-21-E11
Operating temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Storage temperature range	-40 to +70 [°C] EN 60794-1-22-F1
Installation temperature range	-15 to +50 [°C] EN 60794-1-22-F1
Water tightness	No water detected on free end EN 60794-1-22-F5
Cable Weight (calc.)	276 [kg/km]
Class of fire reaction	F^ca EN 13501-6
