Reduced diameter cable for external installation by air-blowing technique

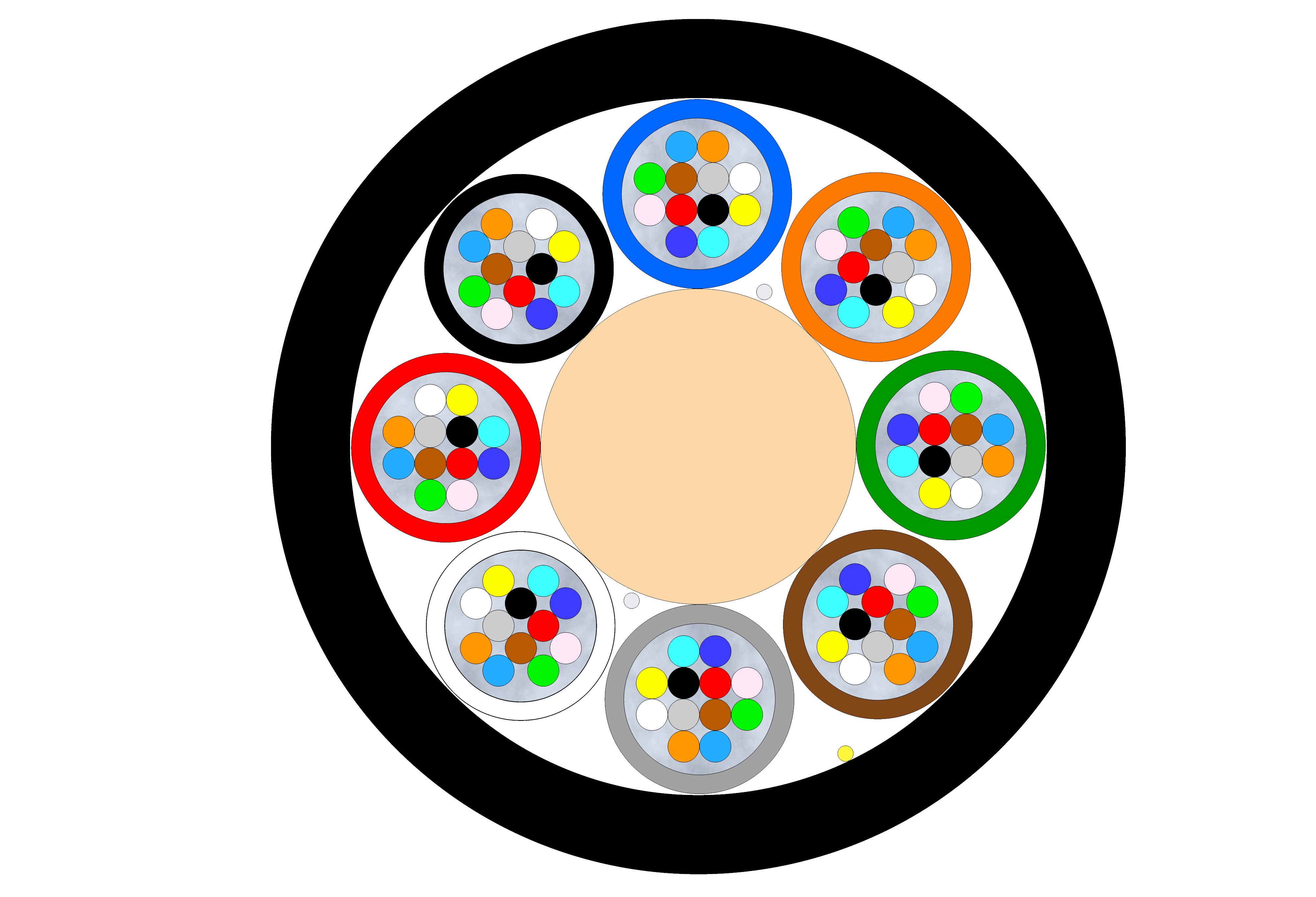

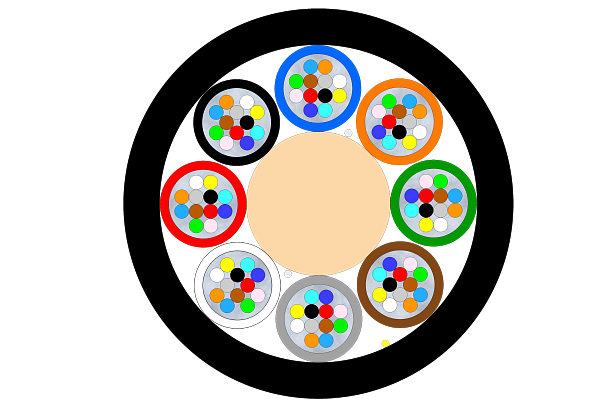

Outdoor Multi-tube Micro Cable 96F (RD)
| Cable outer diameter | 5.4 [mm] |
| Tube count | 8 |
| Filler count | 0 |
| Max. Tensile Loading (Short Term) | 1000 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 270 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 200 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 3 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -30 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -10 to 40 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 28 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Fiber count | 96 |
| Fiber Type | G.657.A1 200 µm |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White |
| Tube filling compound | Low-viscosity filling compound |
| Central strength member | FRP rod |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE |
| Outer jacket thickness | 0.4 mm |
| Cable Code (Ordering Code) | OPK-O-MTFDM-96(8x1.2)LTP-200A1-BK |
| Marking Method | Ink-Jet |
| Print legend | OPK –cable type – lot number- length marking per 1 m (customer print legend available on request) |
| Delivery length | 2000 m, 4000 m, 6000 m, 8000 m, ±5% on plywood reel or solid wooden non-returnable drum |
Reduced diameter cable for external installation by air-blowing technique
