The OPTOKON® LMSW-E33 ruggedized switch based on Cisco® Embedded Service Switch (ESS) 3300 extends switching capabilities to mobile and embedded networks that operate in extreme environments. The flexible, compact form factor of the switch, powered by Cisco IOS® Software, provides highly secure data, voice, and video communications to stationary and mobile network nodes, making it ideal for use in harsh environmental conditions. 10G fiber optic ports are terminated with HMA “Expanded Beam” connectors, which allows interconnection of the nodes of tactical network by the help of cables with optical fibers. The used “Expanded Beam” technology preservers all advantages of signals transmission through the optical lines in field harsh environmental conditions.
The switch supports a variety of management functions, including Web UI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session

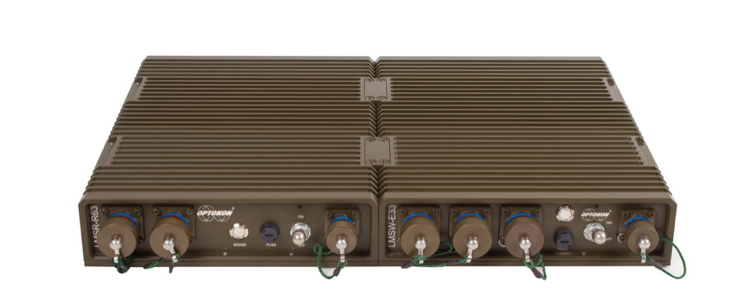

The switch is able to fit all the common 24 V DC power systems. The switch operates in wide operating temperature range -40 to +70°C. The switch can operate as standalone device or in addition the 19” brackets allow switch installation into 19” rack. Two switches can be connected on the side and mounted in a 19 "rack.
LMSW-E33
• Robust compact design resistant to harsh environmental conditions and rough handling
• Cisco IOS Software:
- Network Essentials L2 functionality
- Network Advantage L3 functionality
• 10G uplinks, 1G downlinks
• WAN – 2 ports of 1G/10G
(copper or fiber) • HMA fiber optic connectors
• MRJ (RJ-45) or D38999 multipin connectors
• PoE on all 8/24 ports available
• RS-232 and USB console
• Advanced next generation Cisco IOS-XE SW
• 20 – 40 V DC power supply
• PoE budget 360 W in case of PoE functionality
• LAN – 8x 1G ports:
8 ports of 10Base-T/100Base-TX/1000Base-T • LAN – 24x 1G ports:
24 ports 10Base-T/100Base-TX/1000Base-T
Primary features:
10G uplinks, 1G downlinks Enables high-quality video and data communication for next generation of bandwidth-intensive use cases such as tactical data centers, HD video surveillance, self-driving vehicles, and future-proofing
Robust compact design A compact form factor that can withstand harsh environments (–40 to +70°C operating temperature)
Security Enterprise-grade Cisco IOS-XE switching security features ensure highly secure voice, video, and data communication
Manageability Facilitates easy deployment and rapid configuration with easy-to-use WEB UI and familiar Cisco CLI
Power over Ethernet PoE standard IEEE 802.3af on request with visibility and management from Cisco IOS-XE Software
Layer 2 switching Enables to offer enterprise-grade Layer 2 switching feature set to end customers
Quality of service Allows customers to prioritize flows and ensure make sure that mission-critical flows are not affected by low-priority traffic
For more specifications, please contact us. Due to the sensitive nature of these systems we do not publish full technical data online.
