OMK-SR-FSK.2 Fusion Splice Kit

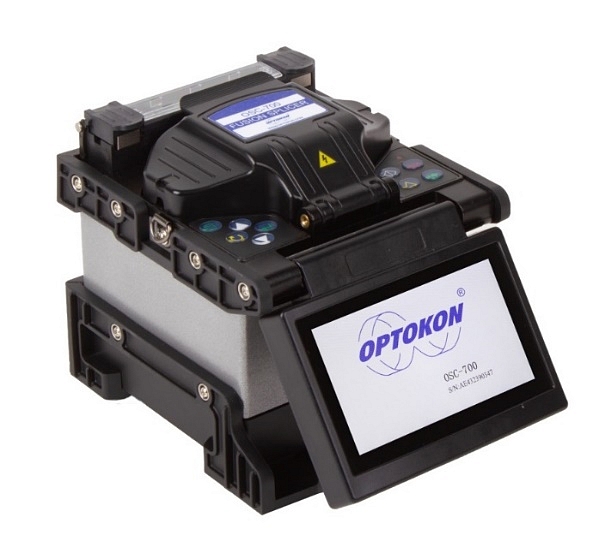

The OPTOKON optical Splice Kit OMK-SR-FSK.2 includes an automatic fusion splicer OSC-700 for SM, MM, DS, NZ-DS (G655), EDF and other fibers. The OSC-700 is capable of ensuring high-quality splicing even in the most unfavorable environment conditions. The OSC-700 splicers are suitable for core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the X, Y plane, then are fused together. The bare fiber area is protected either by recoating or with a splice protector. A splice protector is a heat shrinkable tube with a strength member and less loss.

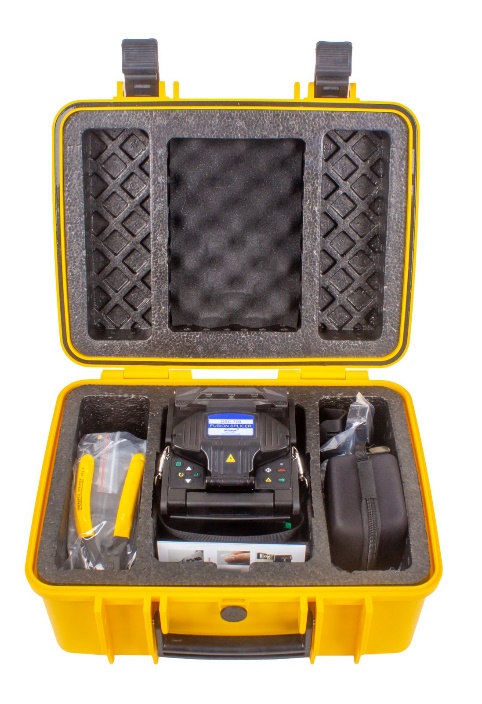

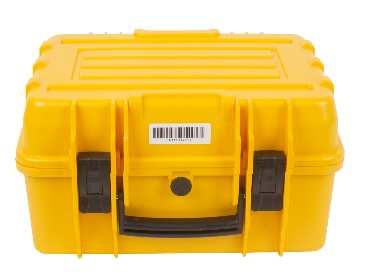

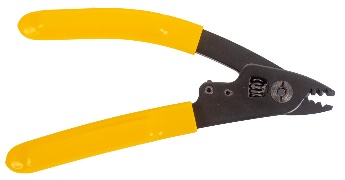

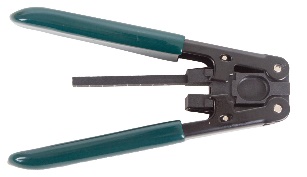

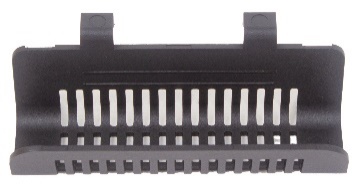

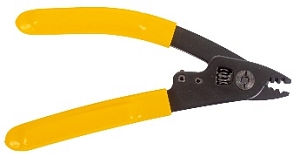

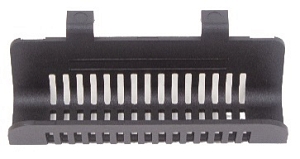

The Splice Kit OMK-SR-FSK.2 is intended for the quick repair of damaged or broken mobile tactical optical cables, it includes all necessary splicing tools. The Kit tools are housed in a rugged case.

  • Features
  • Specifications
  • Application
  • Documents
  • Core-Alignment PAS Technology
  • World fast splicing and heating time: 7 second splicing and 13 second heating
  • Newly-designed carry case: easy carry and can be as work plate
  • Powerful battery and Top Quality electrode: up to 250 times of continuous splice and heat and 5000 times life span electrode
  • Compact & Light weight
  • Fully Automatic Operation
  • 5000 m altitude ensures Splice Quality
  • SYSTEM TEST ensures the best working condition
  • Color LCD monitor
  • Pause function, convenient for scientific research
  • Store 8000 groups of splice results
  • USB & DC interface
  • 350 Magnifications of X and Y

Alignment

Core Alignment (PAS Technology)

Applicable fibers

SM, MM, DS, NZDS, G655, G657 and others

Fiber Diameter

Cladding Diameter: 80-150 µm; Coating Diameter: 100-1000 µm

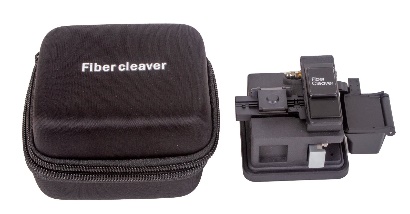

Fiber Cleaver Length

8-16 mm

Splicing mode

Auto, Manual

Heating mode

User programmable

Typical Splice loss

SM 0.02 dB, G.657: 0.02 dB, MM 0.01 dB, DS/NZDS 0.04 dB

Return loss

60 dB

Tension test

2.0 N

Protection sleeve length

20-60 mm

Splicing time

7 sec.

Heating time

13 sec. typ.

Splice Memory

8 000

Operating Condition

Operating Altitude: 0-5000 m, 0-95% relative humidity, temperature -10 to +50°C,

Max Wind 15 m/s

Storage condition

0-95% relative humidity, temperature -40 to +80°C

Language

Czech, English, French, German, Polish, Portuguese, Russian, Serbian, Slovenian, Spanish, Turkish, Indonesian, Vietnamese

Display

4.3” Color High Resolution Display

Fiber View & Magnification

X, Y, XY, X/Y : 350 Magnification

Interface

USB, suitable for data download and software update

Electrode Life

At least 5000 times

Battery Capacity

More than 250 times of continuous splices and heats

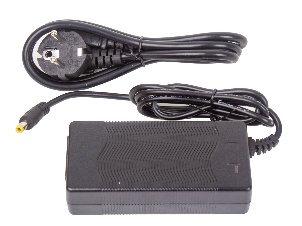

Power Supply

Internal Li-Battery, DC adaptor

Dimension

122 (L) x 122 (W) x 130 (H) mm

Weight

2.0 kg (Include battery)
