QUICK-CURETM

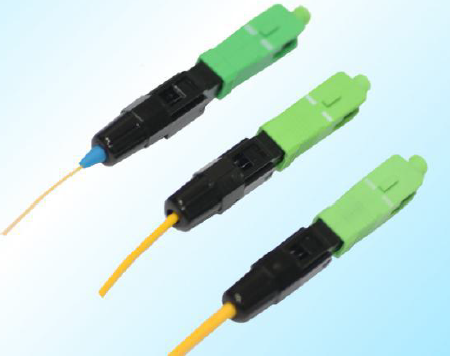

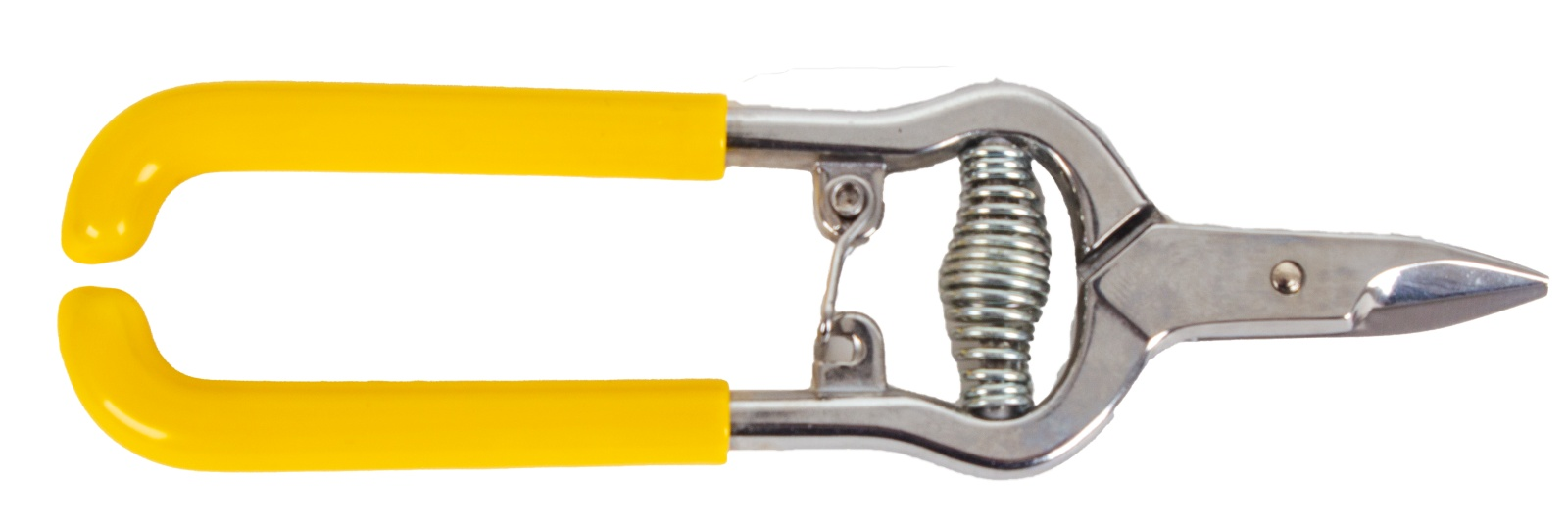

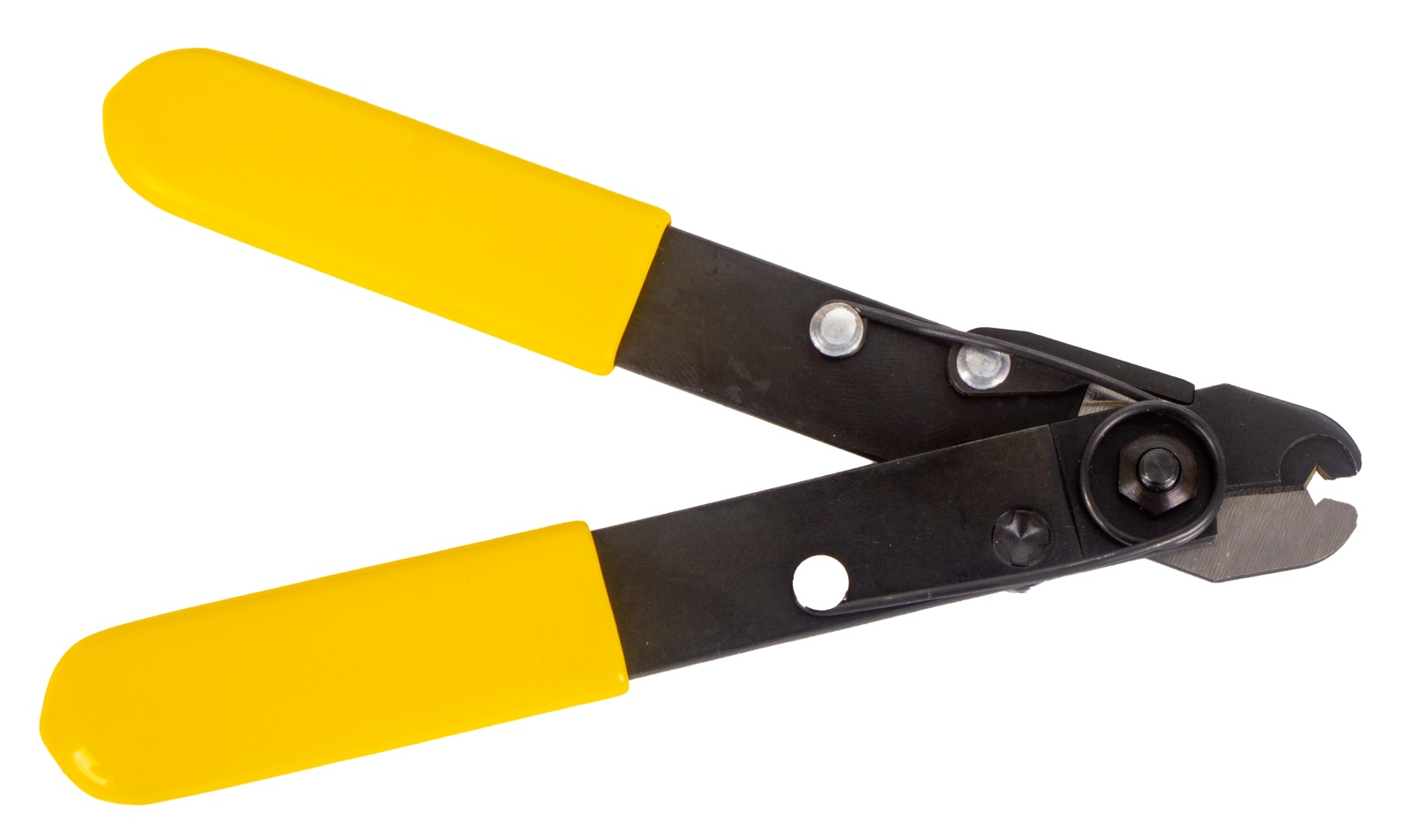

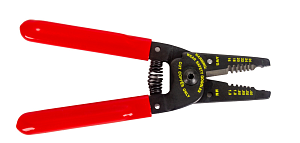

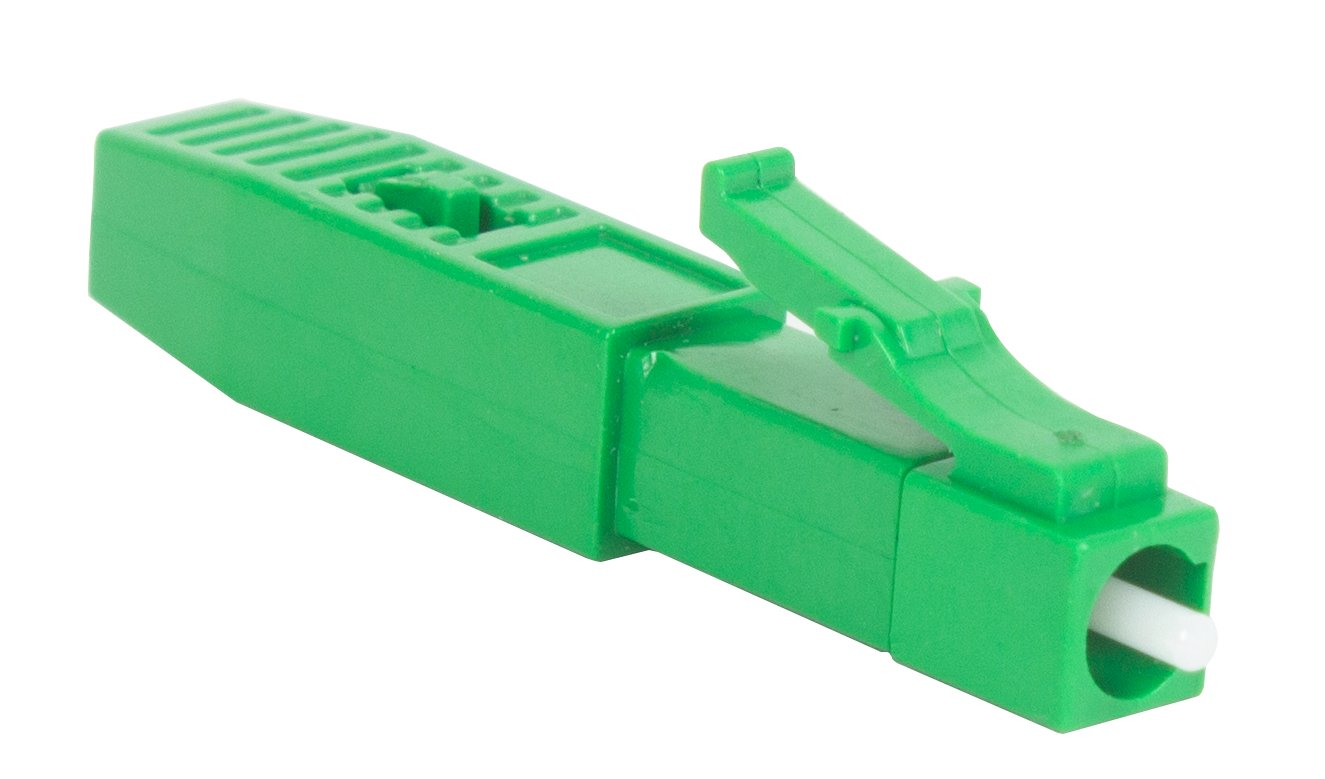

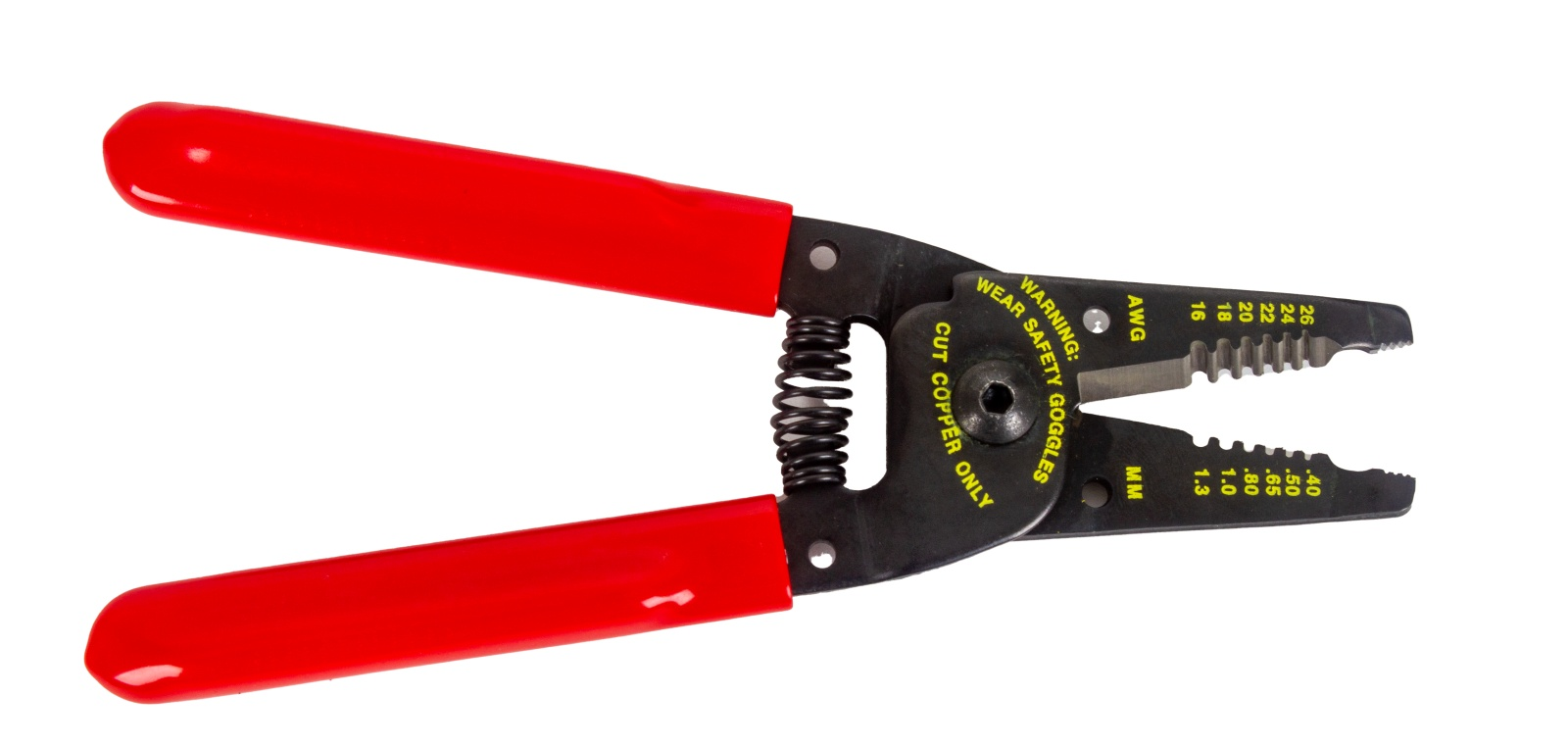

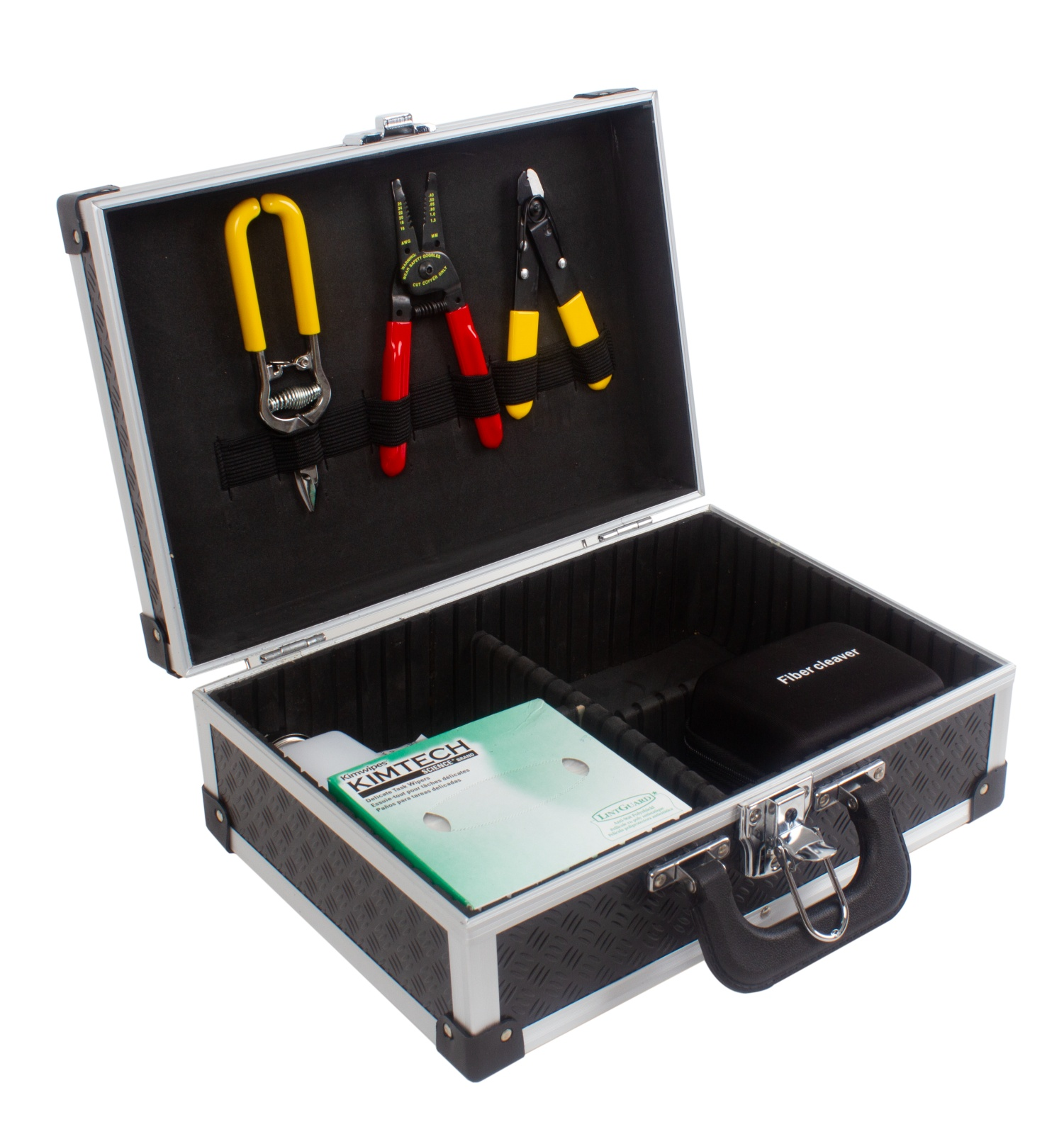

QUICK-CURETM introduces a new type of optical connector for use in field conditions. The pre polished connector (SC, LC type) is designed for optical fiber termination especially in FTTH projects, directly in the end user site. Using the tool kit containing all necessary tools, it allows easy optical network installation. Termination with no epoxy, no heating, no polishing and no splicing achieves similar excellent transmission parameters as standard polishing and splicing technology.

Connector set for various fiber and cable diameter is available.

QUICK-CURETM helps you save time when working in the field.

  • Features
  • Specifications
  • Application
  • Documents
  • FTTH project usable
  • Field installable, quick assembly time
  • Cost effective, User friendly
  • No electricity required No epoxy and polishing required;
  • Precision mechanical alignment insures low insertion loss;
  • Users proven, molded v-groove technologies;
PARAMETER
Fiber type Single mode, G.652D & G.657A1(typical/maximal)
Insertion Loss1 0.3 dB / 0.50 dB
Return Loss2 ≥ 45 dB (UPC) / ≥ 60 dB (APC)
Polishing type UPC / APC
Reusable ≥ 5 times
Fastening strength of bare fiber ≥ 5 N
Tensile strength ≥ 50 N

On-line tensile strength (20 N)

ΔIL ≤ 0.3 dB

 ΔIL≤ 0.3 dB
Mechanical durability (500 times) ΔIL≤ 0.3 dB
Drop-off test(drop-off height 4 m, once per direction, totally 3 times) ΔIL≤ 0.3 dB
Operational temperature -30 °C to 75 °C
Connection method Push – On

Note:    1) Installation by trained staff

2) APC ≥ 60 dB (room temperature), ≥ 35 dB (temperature -40 to +70 °C)

  • FTTH – PON, LAN, WAN
