Fibre optic cable with full protection against rodents for direct burial installation.

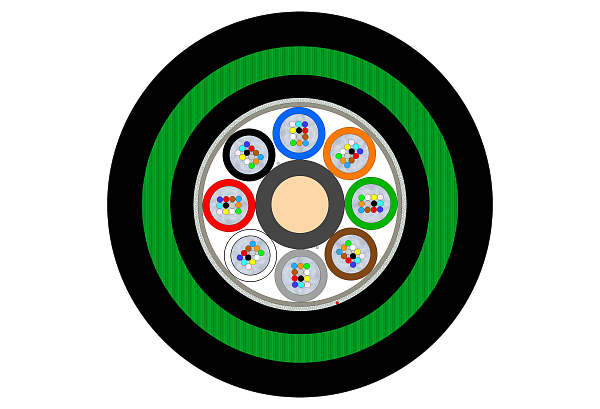

Universal CST Armoured Multitube Cable-Double Jacket 96F (HC)
| Fiber count | 96 |
| Fiber Type | G.652.D, G.657.A1, G.657.A2, G.655, G.656, OM1, OM2, OM3, OM4 |
| Fiber color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-Filled PBT buffer tube |
| Tube color | Blue, Orange, Green, Brown, Grey, White, Red, Black |
| Tube filling compound | Thixotropic Jelly Compound |
| Central strength member | PE coated FRP rod |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Inner jacket | UV resistant black halogen-free flame-retardant thermoplastic compound |
| Inner jacket thickness | 1.0 mm |
| Ripcord | 1x under inner jacket |
| Armouring | Corrugated steel tape, longitudinally under jacket |
| Outer jacket | UV resistant black halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.5 mm |
| Cable outer diameter | 16.8 [mm] |
| Tube count | 8 |
| Filler count | 0 |
| Max. Tensile Loading (Short Term) | 4800 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 1900 [N] EN 60794-1-21-E1 |
| Max. Compressive loading | 5000 [N/10 cm] EN 60794-1-21-E3 |
| Max. Impact loading | 30 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | 15 [OD] EN 60794-1-21-E11 |
| Min. bend radius load | 20 [OD] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight (calc.) | 436 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
0256_OPK-U-MTFDS-96(8x2.3)LTGXH
